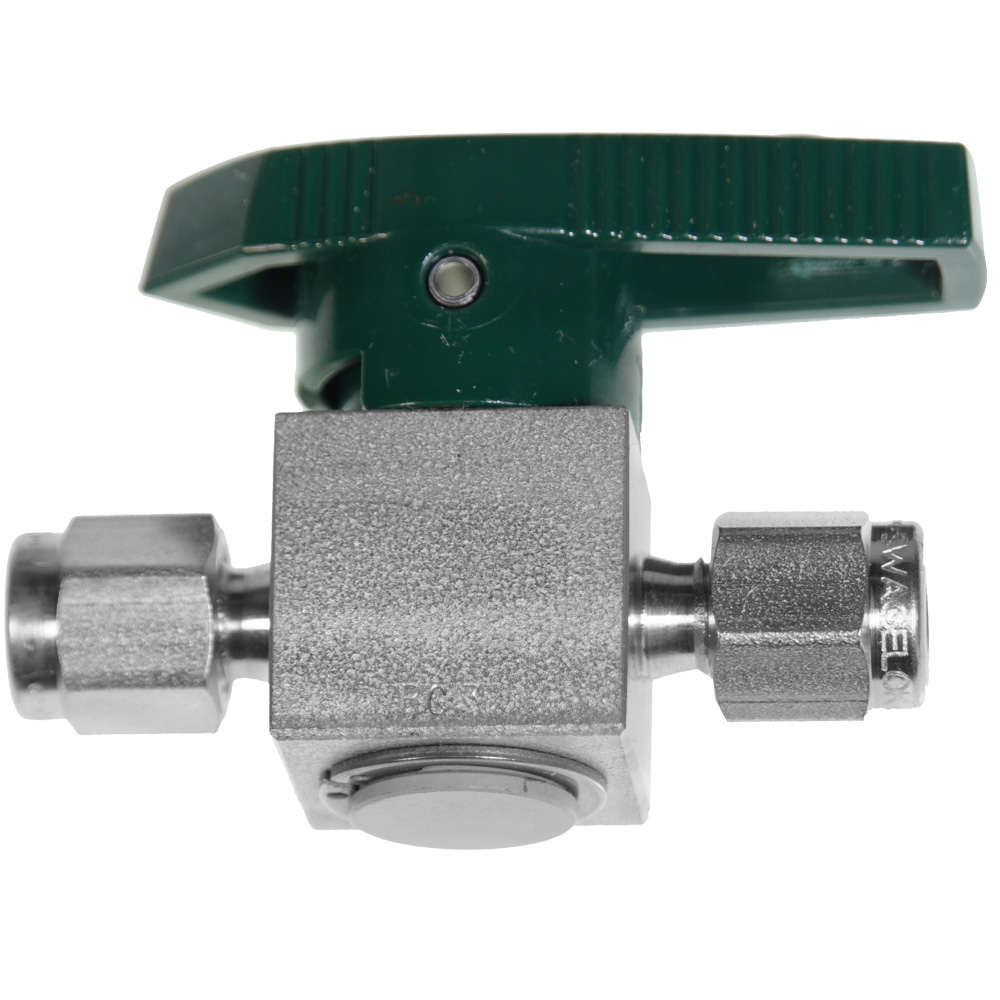

Swagelok Tube Fitting Quarter Turn Instrument Plug Valve, 1/8 in., 0.10 Cv., Stainless Steel.
Swagelok Part Number: SS-2P4T
Swagelok® plug valves offer low-torque, quarter-turn operation in a simple, compact design that provides positive shutoff of forward flow with up to 3000 psig (206 bar) pressure.
FEATURES
- Straight-through flow path
- Forward-flow throttling
- Simple design, easy to clean and maintain
- One-piece body
- Replaceable plug assembly
- O-ring seal to atmosphere

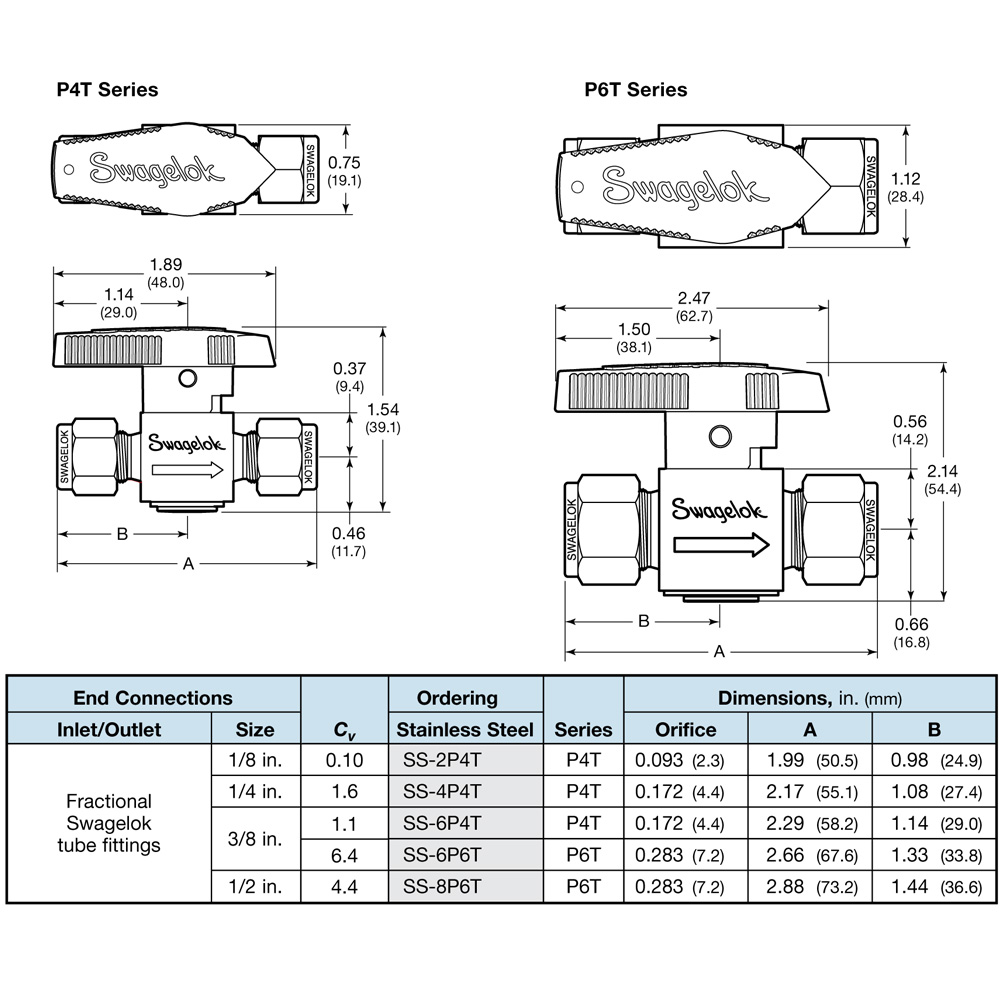

Please see the second image for dimensions and flow data.
