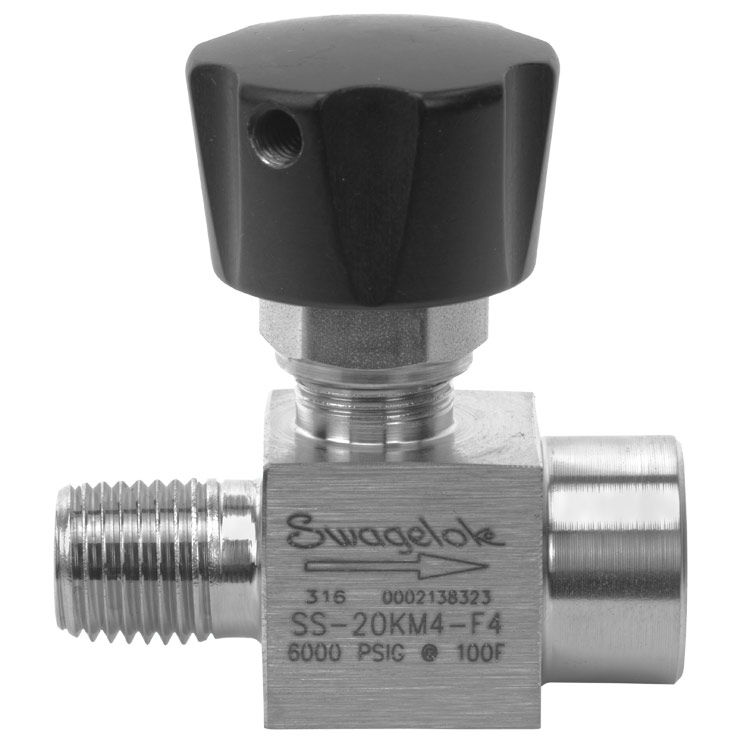

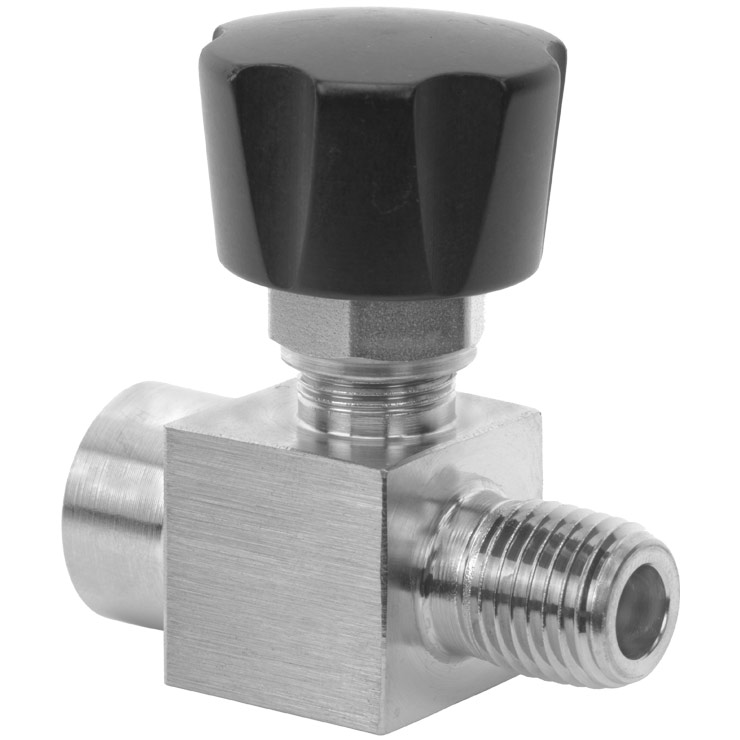

Swagelok Integral-Bonnet Needle Valve, 1/4 in. Male-to-Female NPT, 6000 psig, 0.09Cv, 316 SS, P/N SS-20KM4-F4
This Swagelok® Integral-Bonnet needle valve, with soft-seat stem and PCTFE stem tip, is rated for up to 6000 psig working pressure at a temperature rating of -53 to 37°C (-65 to 100°F). Maximum pressure-temperature rating is limited to 93°C (200°F) at 5160 psig.
This straight pattern valve is made of forged 316 stainless steel and has a 1/4" male NPT fitting on the inlet side, and a 1/4" female NPT on the outlet side. Maximum flow coefficient is 0.09Cv.
For more specifications, please see the Integral-Bonnet Needle Valve download.
