Home > > > Sur-Seal Adapter KF-25 to 1-1/4 (1.25 in.) ID PVC Hose, ISO-KF Flange Size NW-25, Aluminum

Condition:

New

Part Number:

P105191

Warranty:

Against Product Defect

Available Now: 69

RoHS Compliance Sticker

$46.61

Print Version

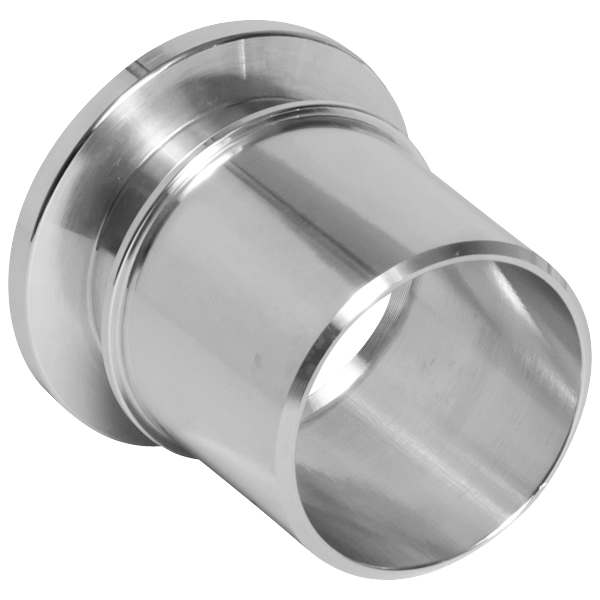

Sur-Seal Adapter KF-25 to 1-1/4 (1.25 in.) ID PVC Hose, ISO-KF Flange Size NW-25, Aluminum

Sur-Seal Adapter KF-25 to 1-1/4 (1.25 in.) ID PVC Hose, ISO-KF Flange Size NW-25, Aluminum

These Sur-Seal adapters are KF-25 to 1-1/4 (1.25 in.) ID PVC Hose and make maximum vacuum tight connections to PVC vacuum hose. The flange size follows ISO-KF standards and is NW-25. They are commonly used to make connections between ISO-KF fittings and PVC Wire Reinforced Hose. The ISO-KF flanges are often called quick flange fittings because they are quick to assemble. The standard sizes for quick flange fittings are KF-10, KF-16, KF-25, KF-40, and KF-50 with flange sizes NW-10, NW-16, NW-25, NW-40, and NW-50, respectively. They are made of Aluminum

Sur-Seal Adapter KF-25 to 1-1/4 (1.25 in.) ID PVC Hose, ISO-KF Flange Size NW-25, Aluminum

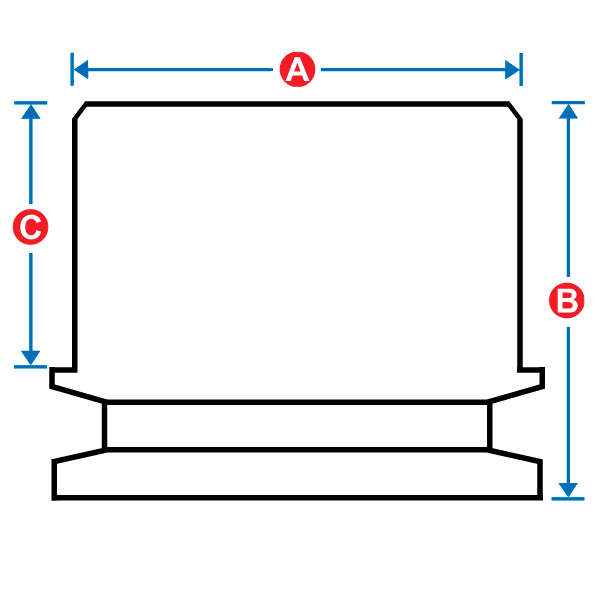

Common Dimensions:
A = 1.255"(25.527 mm)
B = 1.50"(38.1 mm)
C = 1.02" (25.9 mm)

Material: Aluminum
For 1-1/4 (1.25 in.) Inch ID PVC Vacuum Hose

Press ESC to Close

RoHS Compliance Download

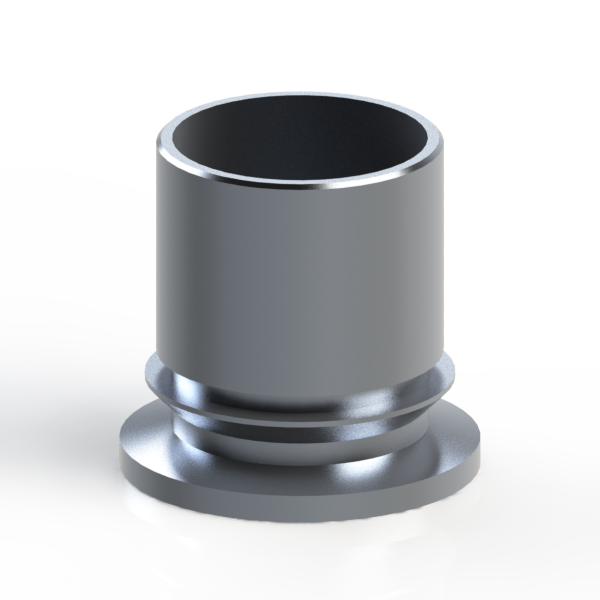

P105191.sldprt

P105191.step

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

eDrawings Viewer For Windows
eDrawings Viewer For MAC.
