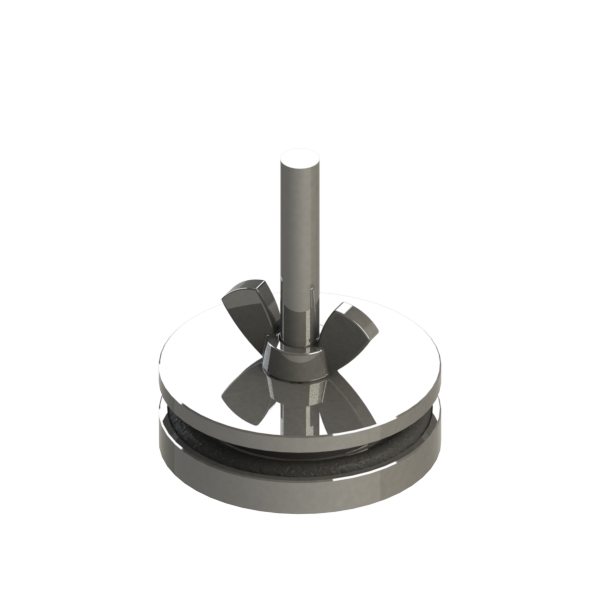

Stainless Steel Hole Plug to Fit 1-1/4 inch Diameter Bulkhead Feedthrough Port up to 1 in. Thick, with Viton O-Ring

Stainless Steel Hole Plug to Fit 1-1/4 inch Diameter Bulkhead Feedthrough Port up to 1 in. Thick, with Viton O-Ring.

These 304L stainless steel feedthrough hole plugs are designed to seal 1.25 inch diameter bulkhead ports on flat plates or chambers with walls up to 1.0" thick. These hole plugs have Viton O-ring seals and are rated for high vacuum in the 10^-8 Torr range.

Dimensions:

A = 1.24"
B = 1.75"
C= .07"
D = 0.375"
E = 1.0" Max.

Press ESC to Close

RoHS Compliance Download

P105374.sldprt

P105374.step

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:
