Condition:
  New
Part Number:
  P103779
Warranty:
  Against Product Defect

Available Now:
58  

RoHS Compliance Sticker


$139.66


Print Version

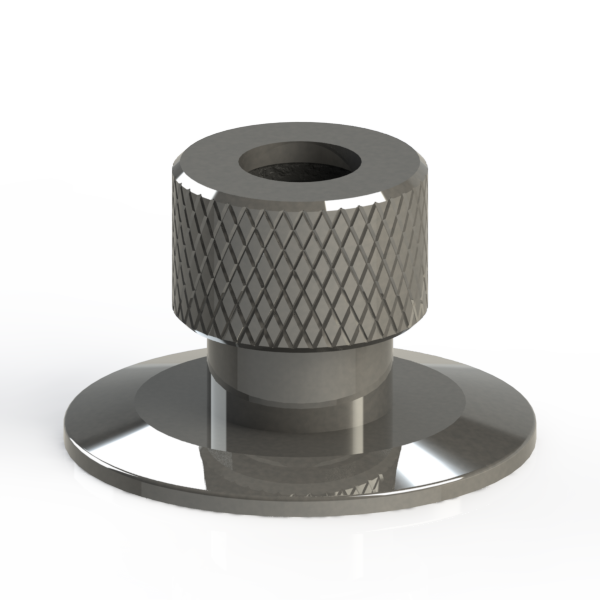

SWIFT-SEAL: KF to Compression Port Adapter, KF-50 to 3/4 in., Stainless Steel


SWIFT-SEAL KF-50 to 3/4 in. I.D. Compression Port, Quick Coupling Adapter, KF50, NW-50, 304 Stainless Steel

This adapter converts a KF-50 flanged fitting to a 0.75 in. compression port. Compression ports are typically used to make quick connections to tubes and half nipples, commonly found on gauges, instruments, and gas supply lines.

"SWIFT-SEAL" KF adapters create a leak-proof seal when the knurled ring is tightened, allowing the uniquely shaped inner ring to both wedge and compress the O-ring circumferentially around the tube. An inner circlip can be re-located to any of the 3 indexed slots (or removed altogether), to make fast, repeatable tube insertions into the adapter; required for repeated, quick changeouts. All components can be easily dismantled for routine service. SWIFT-SEAL adapters are made of 304 Stainless Steel and anodized aluminum.

Dimension Details:
1 = KF-50
2 = 0.77 in. (19.6 mm)
3 = 0.81 in. (20.5 mm)
4 = 1.06 in. (26.9 mm)
5 = 1.31 in. (33.2 mm)


Press ESC to Close


PDF Logo RoHS Compliance Download

CAD Picture

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

E-drawing LogoeDrawings Viewer For Windows
E-drawing LogoeDrawings Viewer For MAC.
