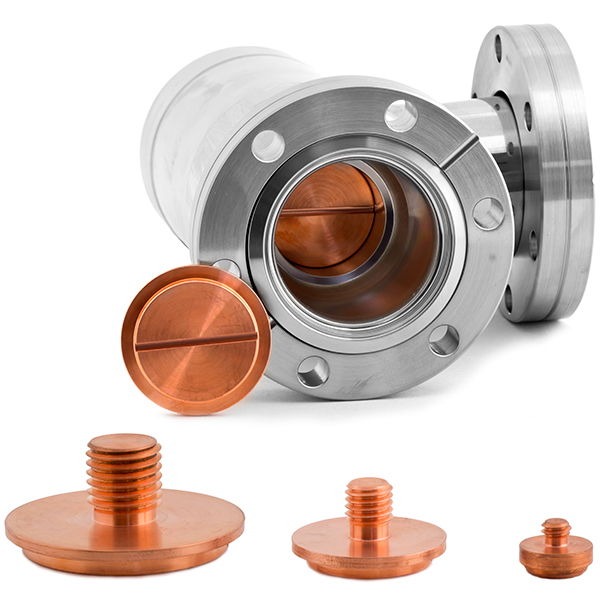

Replacement Copper Poppet Seal for Caliente Xtreme Bakeable UHV Angle Valve, 4-1/2 Inch CF Flange, (for P107282 Only)


Replacement Copper Poppet Seal for Caliente Xtreme Bakeable UHV Angle Valve P107282, 4-1/2, 4.50 Inch CF Flange, for P107282 Only.

These replacement copper poppet for our all metal Isolation seal angle valves are intended for use in UHV or cryogenic applications where temperature extremes preclude the use of our elastomer seal valves. Approved for use in beamline facilities, these valves have a temperature operating range from -250°C to 400°C. The pulled-port method is used for the fabrication of the stainless steel bodies resulting in higher conductance and better cleanliness.

The life of the copper poppet seal is dependent upon the temperature at which the valve is used. Maximum temperature bakeouts may require copper poppet seal replacement after 50 cycles, while hundreds of cycles are possible with moderate bakeouts. As many as 10,000 cycles have been obtained from the same seal during testing. A dial indicator at the top of the valve indicates the proper torque for closure and also when the seal should be replaced. The copper poppet seal is easily replaced by opening the valve with a slotted screw driver. The seal is removed through the side port and a new one replaced in a like manner.

After seal replacement the valve must be torqued to a higher value than during normal operation to make it seat. Do not exceed the maximum Torque Specifications. After closing the valve to its normal torque value loosen the set screw below the closure nut, rotate the indicator to the furthest counter-clockwise line on top of the valve and retighten the set screw. The valve may be closed to this mark indefinitely. Periodic checks with a torque wrench will indicate seat wear and the proper mark to use for alignment. When the indicator has reached the last mark we recommend seal replacement.

These All metal isolation valves are designed to have a low leak rate, typically on the order of 1x10-10 std. cc/sec UHV. These Isolation valves have a CF Conflat 2.75 inch Vacuum flange for connection to the vacuum system, are manually operated, and made of Stainless Steel.
