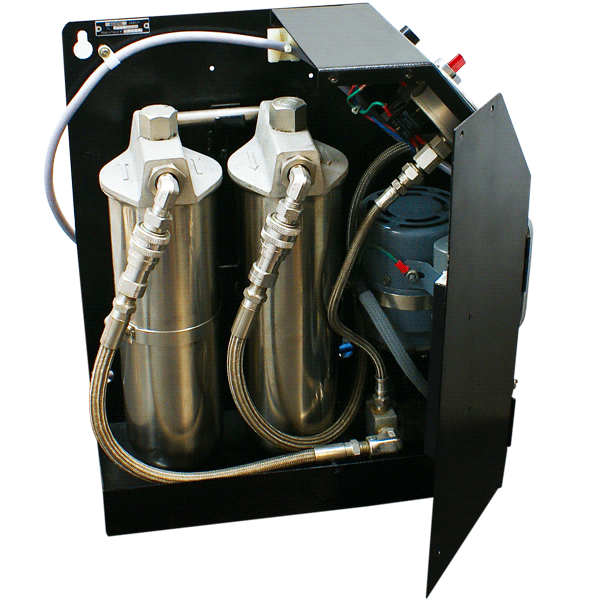

Rebuilt Alcatel Adixen External Oil Filter DE2
DE filtration system is a stand-alone unit consisting of a
magnetically driven gear pump which circulates oil through
2 filtration cartridges.
According to filtration media the
DE filter retains solid particles and/or neutralizes corrosive
products contained in the oil of the pump. DE filters can be connected to any rotary vane pump from 5 m3/h (3CFM) to 100 m3/h (70CFM); all necessary components for connection are included and 2 DE filters (activated alumina and Cellulose)
DE filters can be used with different types of filtration media cartridges:
• Cellulose filter: filtration of solid particles only
• Activated alumina filter: envelope/charge of activated alumina. Applications: mineral acids, Lewis acids, Polar compounds.
• Activated charcoal filter: envelope/charge of activated
charcoal. Applications: Chlorinated products, water and chlorine,
Nitrous vapors, Ammonia. All filters cartridges sold on this website.
Can be used with rotary vane pumps:
All Brands From 3 CFM to 70 CFM.

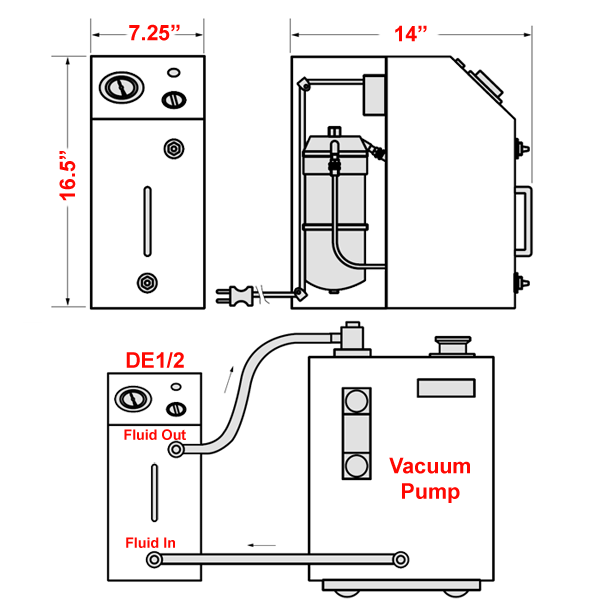

Common Dimensions & Specifications:
Housing made with steel, Comes with 2 filter elements cellulose and activated alumina.
Approx. Weight 37.4 lbs.
Oil Volume 1.8 liter.
