Quick-Mount Non-Magnetic Optical Post, 0.5 in. Diameter, 3 in. Height, 8-32 and 1/4"-20 Tapped.

Quick-Mount Non-Magnetic Optical Post, 0.5 in. Diameter, 3 in. Height.
Tapped 8-32 and 1/4"-20, Stainless Steel. 8-32 Set Screw Included. Sold 1 Each.

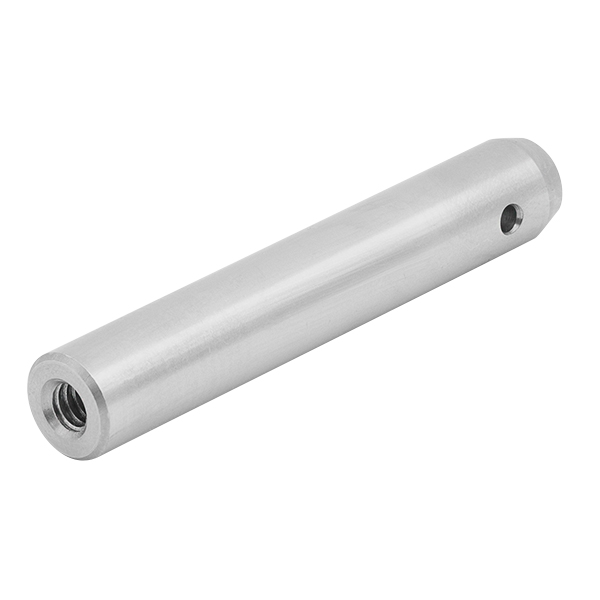

These non-magnetic 303 stainless steel posts offer a quick and efficient way to mount to an optical table or breadboard. The post is tapped for 8-32 on one end and 1/4”-20 on the other. A side-located 1/8" diameter (3.2 mm) hole is bored through the post to be used for extra leverage when tightening the post. We offer a variety of post lengths: 0.75”, 1”, 1.5”, 2”, 3”, 4”, 6”, 8”, 10”, and 12”. These posts can be combined with our pedestal posts and post holders to fit any application's needs.

• Diameter = 0.5 in.
• Height = 3 in.
• Tapped = 8-32 and 1/4"-20,
• 8-32 Set Screw Included
