Condition:
  New
Part Number:
  P103416
Warranty:
  1-Year Limited Warranty

Available Now:
4  
Expecting:   2
Anticipated Arrival:  1 on 2024-12-21



$3,350.00


Print Version

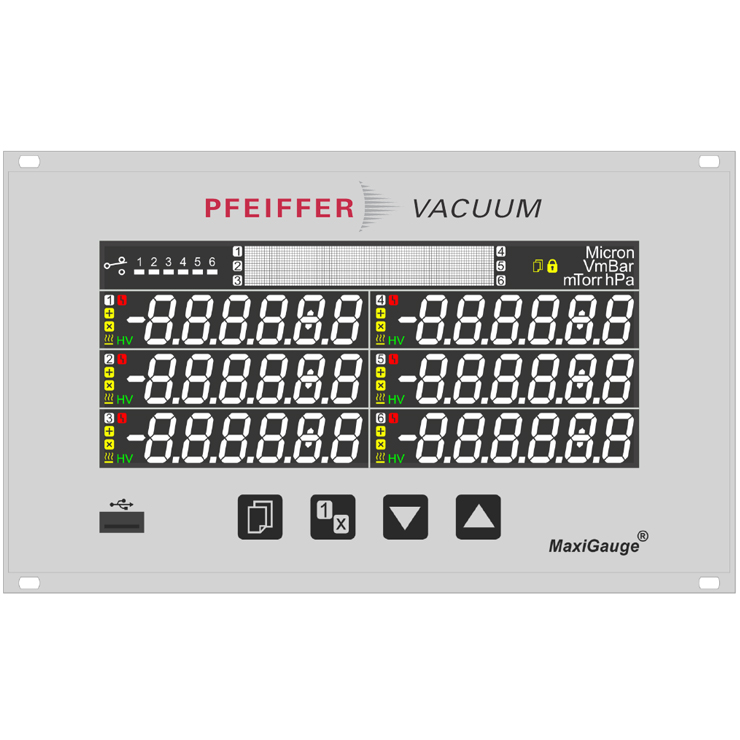

Pfeiffer TPG 366 MaxiGauge® 6-Channel Measurement & Control for Compact Gauges. PN: PT G28 770


Pfeiffer TPG 366 MaxiGauge® 6-Port Total Pressure Measurement & Control Unit for Pfeiffer Compact Gauges.
Pfeiffer Part Number: PT G28 770 (Replaces the Obsolete controller TPG 256)

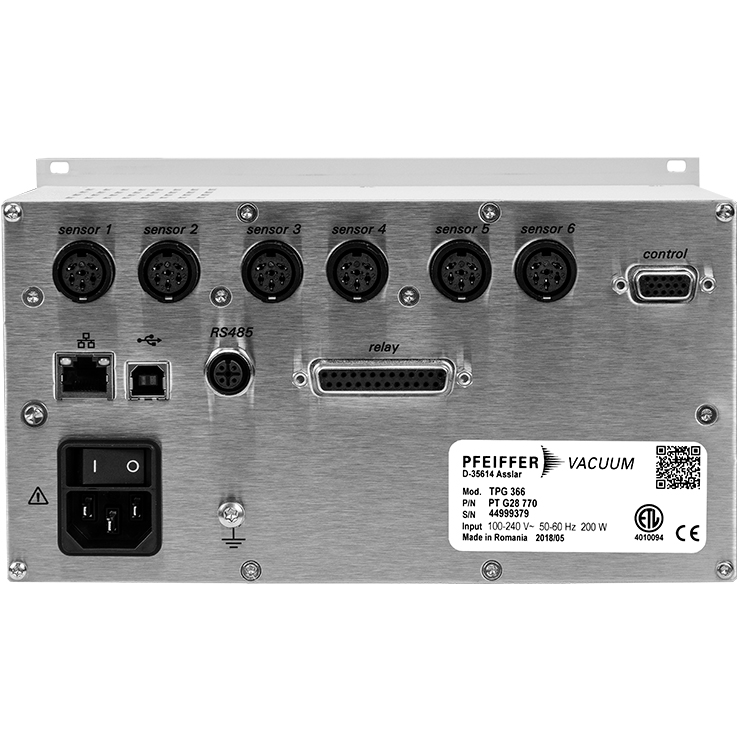

The Pfeiffer TPG 366 MaxiGauge® is a 6-port total pressure measurement and control unit for Pfeiffer Vacuum Compact Gauges. It can display and control 6 compact ActiveLine gauges at the same time. Pfeiffer compatible gauges are listed below. 80-250 VAC with USB, RS-485 and Ethernet interface. Through its pressure dependent switching functions and the user programmable sensor control it can also perform a number of functions for controlling and monitoring vacuum equipment and processes.

This unit is suited for total pressure measurement in the range of 10-11 mbar (10-8) Torr to 50 bar (3.754) Torr. This unit comes with an AC power cable but DOES NOT come with any signal cables to the Pfeiffer Gauges. This is a Pfeiffer MaxiGauge® TPG 366 ONLY (Part number: PT G28 770 replaces part number: PT G28 760). All Pfeiffer transmitters/sensors/gauges/pumps and signal cables sold seperately on this website.

    Compatible Pfeiffer Compact Gauges:
  • PIRANI - TPR 250, TPR 260, TPR 261, TPR 265, TPR 280, TPR 281.
  • PIRANI CAPACITANCE - PCR 260.
  • COLD CATHODE - IKR 250, IKR 251, IkR 260, IKR 261, IKR 270.
  • FULL RANGE™ CC - PKR 250, PKR 251, PKR 260, PKR 261.
  • PROCESS ION - IMR 260, IMR 265.
  • FULL RANGE™ BA - PBR 260.
  • CAPACITANCE - CMR 261, 262, 263, 264, 271, 272, 273, 274, 275. ACR-261, 262, 263, 274.
  • PIEZO - APR 250, 260, 262, 265, 266, 267.


Press ESC to Close


PDF Logo Pfeiffer TPG 366 MaxiGauge Controller Operating Instructions.pdf

PDF Logo Pfeiffer TPG 366 MaxiGauge Controller Communication Protocol.pdf
