Pfeiffer TPG 201/202 Accessories Gauge Kit
TPG-202 Gauge Included. AC or DC Power Operation.
The Pfeiffer TPG-201/202 Accessories Gauge Kit is an ideal option for easy transportation, powering, and operation of TPG 201/202 gauges.

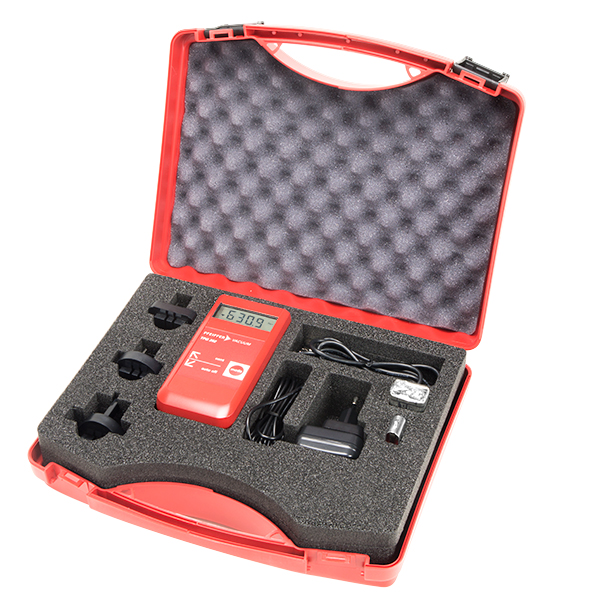

The kit comes with:
- TPG-202 Portable Gauge, KF16 inlet
- Accessory Case
- Plug-in Connectors for EU, UK, US
- 1 9V Battery
- USB cable
- USB Memory Stick with DokuStar Software
The DokuStar Software is essential for evaluating and measuring pressure gauge data. The DokuStar Software is only available with the TPG 201/202 Accessories kit.
The Pfeiffer TPG-202 Portable Piezo/Pirani gauge is a battery operated handheld gauge. It can be operated with a 9V battery, or alternately with a 12V external power supply. With a Measurement range from 1.2 x 10
3 to 5 x 10
-4mbar and an NW/KF-16 flange it's perfect for low and medium vacuum applications. The Piezo-resistive pressure transducer in the TPG-202 allows for gas-type independent pressure measurement above 10 mbar. The TPG-202 also has a high accuracy atmospheric pressure indicator. The TPG-202 has an integrated data logger and can be connected to a computer and operated using DokuStar software that comes only with the accessories kit.
See operation .pdfs below.
