This Pfeiffer HiScroll 6 dry scroll roughing/backing pump has a pumping speed of 3.6 cfm (6.1 m/hr), and an ultimate vacuum of 1.5 x 10 Torr (2 x 10 mbar). It has KF-25 (NW25) inlet and outlet ports. Input of 100-240 VAC, 50/60 Hz, single phase power is required and and the pump has a standard C14 input power connector. The HiScroll 6 pump draws 4A@120VAC (2A@240 VAC) and is extremely quiet at 48 dB(A). This HiScroll pump has internal motor protection and an integrated two-stage gas ballast which allows for pumping of condensable vapours including water, solvents, dilute acids and bases. Maximum dry air or inert gas ballast pressure is 21.7 psi (1500 hPa).

This Pfeiffer HiScroll 6 dry scroll roughing/backing pump with pressure sensor has a pumping speed of 3.6 cfm (6.1 m/hr), and an ultimate vacuum of 1.5 x 10 Torr (2 x 10 mbar). It has KF-25 (NW25) inlet and outlet ports. Input of 100-240 VAC, 50/60 Hz, single phase power is required and and the pump has a standard C14 input power connector. The HiScroll 6 pump draws 4A@120VAC (2A@240 VAC) and is extremely quiet at 48 dB(A). This HiScroll pump has internal motor protection and an integrated two-stage gas ballast which allows for pumping of condensable vapours including water, solvents, dilute acids and bases. Maximum dry air or inert gas ballast pressure is 21.7 psi (1500 hPa).

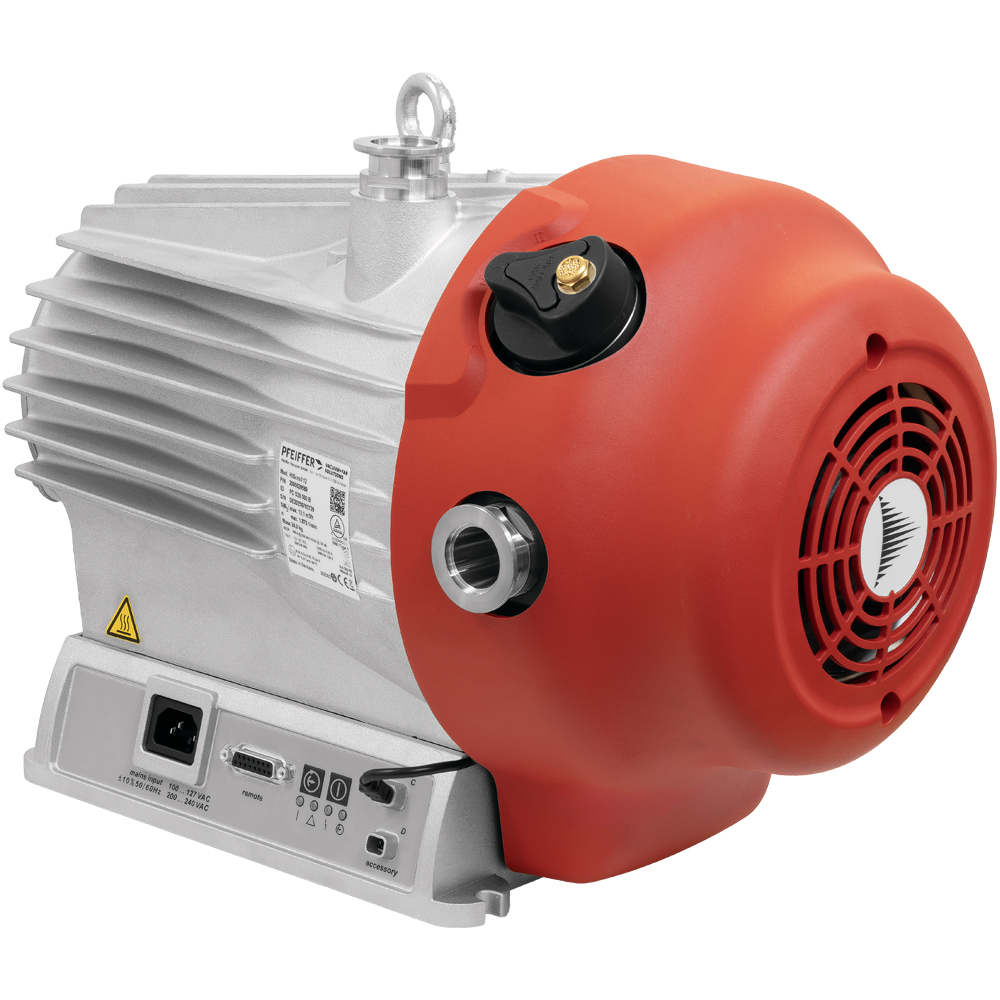

This Pfeiffer HiScroll 12 dry scroll roughing/backing pump has a pumping speed of 7.1 cfm (12.1 m/hr), and an ultimate vacuum of 6.75 x 10 Torr (9 x 10 mbar). It has KF-25 (NW25) inlet and outlet ports. Input of 100-240 VAC, 50/60 Hz, single phase power is required and and the pump has a standard C14 input power connector. The HiScroll 12 pump draws 8A@120VAC (4A@240 VAC) and is extremely quiet at 47 dB(A). This HiScroll pump has internal motor protection and an integrated two-stage gas ballast which allows for pumping of condensable vapours including water, solvents, dilute acids and bases. Maximum dry air or inert gas ballast pressure is 21.7 psi (1500 hPa).

This Pfeiffer HiScroll 12 dry scroll roughing/backing pump with pressure sensor has a pumping speed of 7.1 cfm (12.1 m/hr), and an ultimate vacuum of 6.75 x 10 Torr (9 x 10 mbar). It has KF-25 (NW25) inlet and outlet ports. Input of 100-240 VAC, 50/60 Hz, single phase power is required and and the pump has a standard C14 input power connector. The HiScroll 12 pump draws 8A@120VAC (4A@240 VAC) and is extremely quiet at 47 dB(A). This HiScroll pump has internal motor protection and an integrated two-stage gas ballast which allows for pumping of condensable vapours including water, solvents, dilute acids and bases. Maximum dry air or inert gas ballast pressure is 21.7 psi (1500 hPa).

This Pfeiffer HiScroll 18 dry scroll roughing/backing pump has a pumping speed of 10.7 cfm (18.1 m/hr), and an ultimate vacuum of 5.25 x 10 Torr (7 x 10 mbar). It has KF-25 (NW25) inlet and outlet ports. Input of 100-240 VAC, 50/60 Hz, single phase power is required and and the pump has a standard C14 input power connector. The HiScroll 18 pump draws 10A@120VAC (6A@240 VAC) and is extremely quiet at 47 dB(A). This HiScroll pump has internal motor protection and an integrated two-stage gas ballast which allows for pumping of condensable vapours including water, solvents, dilute acids and bases. Maximum dry air or inert gas ballast pressure is 21.7 psi (1500 hPa).

This Pfeiffer HiScroll 18 dry scroll roughing/backing pump with pressure sensor has a pumping speed of 10.7 cfm (18.1 m/hr), and an ultimate vacuum of 5.25 x 10 Torr (7 x 10 mbar). It has KF-25 (NW25) inlet and outlet ports. Input of 100-240 VAC, 50/60 Hz, single phase power is required and and the pump has a standard C14 input power connector. The HiScroll 18 pump draws 10A@120VAC (6A@240 VAC) and is extremely quiet at 47 dB(A). This HiScroll pump has internal motor protection and an integrated two-stage gas ballast which allows for pumping of condensable vapours including water, solvents, dilute acids and bases. Maximum dry air or inert gas ballast pressure is 21.7 psi (1500 hPa).

This is a Pfeiffer OEM Tip Seal Maintenace Kit for Pfeiffer HiScroll 6 Scroll Vacuum Pumps. These are user friendly replaceable.

This is a Pfeiffer OEM Tip Seal Maintenace Kit for Pfeiffer HiScroll 12 or HiScroll 18 Scroll Vacuum Pumps. These are user friendly replaceable.

This is a Pfeiffer Screw Cap for the Gas Ballast on 6-12-18 HiScroll Pfeiffer Vacuum Pumps.

NEW Pfeiffer Handheld Key Pad HPU 001 To Communicate to Pfeiffer HiScroll Pumps. The ideal assistant for controlling and monitoring the pump parameters with graphical display. 9-pin D-sub, serial interface RS-232 for connection to the PC. RJ 45, serial interface RS-485 for connection to a Pfeiffer Vacuum Drive Unit on the HiScroll 6-12-18 Scroll Pumps. Comes with Interface cable M12/RJ 45 and RJ 45/RJ 45 for electronic drive unit, cable length 3 m. Comes with multilingual menus and graphical display. A 9 Volt block battery is required but not supplied. An OPTIONAL ACCESSORY PACK is available to include AC Power Supply Adapter, cables and CD HPU Operating Software. (Not Included with this keypad). Pfeiffer P/N PM 061 005-T.

NEW Pfeiffer HiScroll 6 -12-18 Push-in fitting G 1/8" including seal for hose connection (8/6 mm) to be connected to an external supply with nitrogen (N2) or another dry, inert gas to this coupling.

NEW Pfeiffer Inlet Dust Separator for HiScroll 6-12-18 Scroll Pumps, Polyester Filter, SAS 25 S, KF25. Prevents dust particles entering into the inlet of the Scroll Pump. Allows longer service life of mechanical parts.

The HiScroll vacuum pump is equipped with a pressure sensor in the pumping system, either directly or by way of installation (optional accessory). This digital Piezo/Pirani sensor RPT 010 measures the intake pressure of the vacuum pump. Certain functions described for the vacuum pump are only available with a pressure sensor installed. This Sensor Measures coarse vaccum independent of gas type. Pressure Range 1 X 10-4 - 1200 hPa. NOTE: To connect the RPT 010 Piezo Pirani Sensor, See Operating Instructions .pdf to the left at downloads.
