This Pfeiffer HiPace 350 turbo pump package deal with Conflat CF 6.0" inlet flange includes a Pfeiffer HiScroll 12 dry scroll roughing pump. The HiPace 350 has a pumping speed of 350 liters per second (l/s), an ultimate pressure of 3.5 x 10
-10 Torr, and comes ready for air or water cooling unit (sold separately). The pump has an integrated TC 400 electronic pump drive unit. This package includes an OmniControl 300 display control unit and power supply with large LED display (includes AC power cable). The OmniControl 300 powers the pump through an included 3 meter long power connection cable (part number P103408). It communicates with and controls the pump through an RS485 communications cable (part number P1012287), also included. To protect the pump from debris, a splinter guard with fine mesh (0.8 mm) screen is also part of this package. This turbo pump package deal includes a roughing pump, but does not include roughing lines, vacuum chamber, pressure measurement gauges, valves or cooling unit. Some upgrades might include: an air cooling kit, solenoid venting or sealing gas purge valves. All these items are available and sold separately by Ideal Vacuum.
About the HiPace 350 turbo pump with CF 6.0" flange

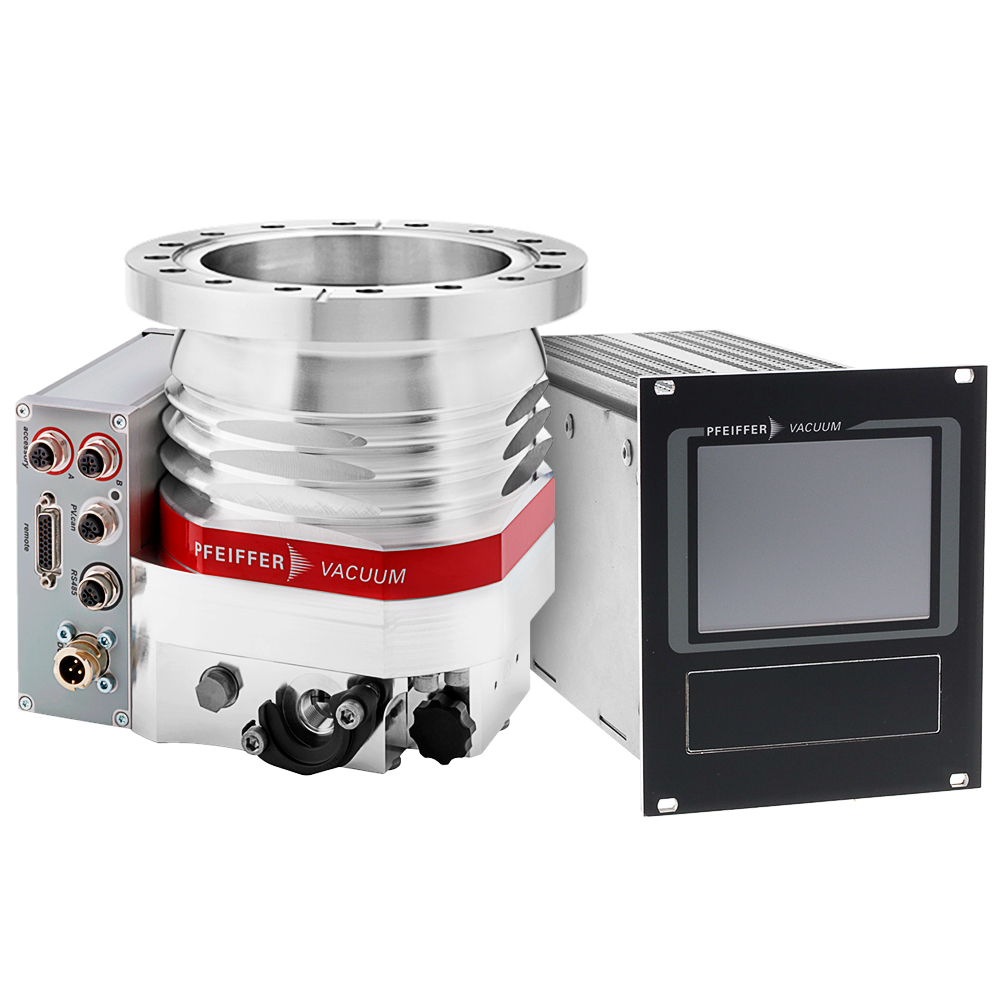

Pfeiffer HiPace 350 turbomolecular high-vacuum pump with a Conflat CF 6.0 inch inlet flange and KF-16 outlet flange have a pumping speed of 350 liters per second (l/s) and an ultimate pressure of 3.5 x 10
-10 Torr. The pump can be mounted in any orientation. 24 VDC input power at a maximum of 300 Watts is required. This Pfeiffer HiPace 350 pump comes with an integrated TC 400 drive unit side-mounted to the pump. The TC 400 has an RS485 (M12) communication port, a D-sub connector for remote operation, and two M12 accessory ports (to control an air-cooling fan or solenoid valve). This HiPace 350 turbo pump with CF 6.0" inlet and TC 400 drive unit has Pfeiffer part number: PM P070 411 40.
About the HiScroll 12 dry scroll roughing pump
This Pfeiffer HiScroll 12 dry scroll roughing/backing pump has a pumping speed of 7.1 cfm (12.1 m
3/hr), and an ultimate vacuum of 6.75 x 10
-3 Torr (9 x 10
-3 mbar). It has KF-25 (NW25) inlet and outlet ports. Input of 100-240 VAC, 50/60 Hz, single phase power is required and and the pump has a standard C14 input power connector. The HiScroll 12 pump draws 8A@120VAC (4A@240 VAC) and is extremely quiet at 47 dB(A). This HiScroll pump has internal motor protection and an integrated two-stage gas ballast which allows for pumping of condensable vapours including water, solvents, dilute acids and bases. Maximum dry air or inert gas ballast pressure is 21.7 psi (1500 hPa).
About the OmniControl 300 drive control unit
The Pfeiffer OmniControl 300 turbo pump controller can be bench top or rack mounted and is designed to operate Pfeiffer HiPace 300, HiPace 350, and HiPace 450 turbo pumps that have the integrated TC 400 drive unit. The OmniControl 300 supplies 24 VDC at a maximum of 300 Watts to the TC 400 electronic drive unit which then powers the pump. Separate power and communication interface cables are used to connect the OmniControl 300 to the TC 400 drive unit. Input power to the OmniControl 300 is 115/230 VAC and a standard C14 rear-mounted socket is provided for mains power entry. This OmniControl 300 turbo pump display control unit and power supply has Pfeiffer part number PE D60 100 0.
About the water cooling unit Options

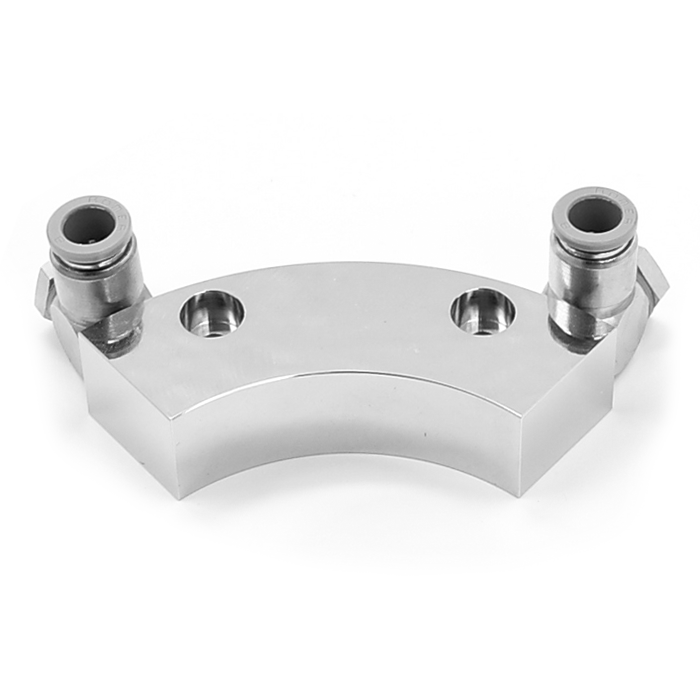

The turbo pump comes ready to install water cooling or cooling fan units to the side of the pump with two banjo bolts, or a third option for a round water cooling unit to be installed at the bottom of the pump with three bolts. The water cooling block and the round unit have push-fit connectors for the supply and discharge hoses (8mm OD plastic hose). The hose connections may be unscrewed and removed to make use of the integrated G 1/8” threads. The radial air cooling fan unit comes with a M12 connector to be powered with the TC 400 Drive. These cooling units can be found in this website with the following P10xxxx numbers:
- Pfeiffer Radial Air Cooling Fan: P1012615 (Pfeiffer part number: PM Z01 374)
- Pfeiffer Water Cooling Block: P103334 (Pfeiffer part number: PM 016 623 -T)
- Pfeiffer Water Cooling Round Unit: P1012609 (Pfeiffer part number PM 026 068 -T)
Applications for this package deal include:
- Mass Spectrometry
- Gas Chromatography Mass Spectrometry (GC/MS)
- Liquid Chromatography Mass Spectrometry (LC/MS)
- Inductively Coupled Plasma Mass Spectrometry (ICP-MS)
- Time-of-Flight Mass Spectrometry (TOF)
Vacuum in Research and Development:
- High Energy Physics
- Fusion Technology
- General UHV Research
- Synchrotron Light Sources Particle Accelerators
Nanotechnology Instruments:
- Electron Microscopy
- Scanning Electron Microscopy (SEM)
- Transmission Electron Microscopy (TEM)
- Focused Ion-beam Systems (FIB)
- Surface Analysis
- Semiconductor Manufacturing
Industrial Vacuum Processing:
- Thin Film Deposition:
- Glass coating equipment (architectural and automotive glass, flat panel displays)
- Thin film solar cells production (photo-voltaic)
- Optical data media (CD, DVD, Magneto Optical Discs)
- Magnetic storage media
- Surface treatments
- Optical coating (ophthalmic, precision opto-electronics)
- Roll/Web coating on films or foils
Device Processing:
- TV & Monitor picture tube manufacture
- Evacuation of lamps (motorway lighting, beamers)
- X-Ray tubes & electron devices
General Processes:
- Vacuum Furnaces
- Metallurgy
This package deal is stored in our inventory as a kit, made up of many separate parts, and each is listed in our
Availability of Kit Components section below. The operating instructions manuals are available in the downloads.
