Condition:
  New
Part Number:
  P101413
Warranty:
  Against Product Defect

Available Now:
8899  



$15.34


Print Version

PVC Steel Spring Reinforced Clear Vacuum Hose, 1-1/2 inch ID, Sold by the Foot


PVC Steel Spring Reinforced Clear Vacuum Hose, 1-1/2 inch ID (Sold by the Foot).
Maximum Length is 100 ft.

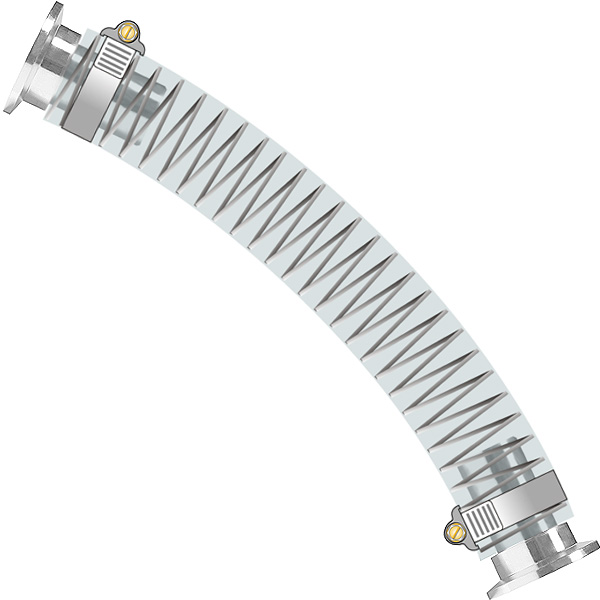

This 1-1/2 inch clear PVC vacuum hose is steel wire reinforced with a temp range from 20 to 150F. Resistant to chemicals, non-marking, non-toxic, silicone-free, is flexible and developed for mechanical vacuum pumps. Fastens with hose clamps and stainless steel PVC adapters.

Note that this vacuum hose is sold by the foot, you will receive one segment for the total feet ordered with a maximum of 50ft. roll. If you wish to purchase segments of certain length, please add separate lines for each one into your shopping cart.

    PVC Steel Reinforced Spring Vacuum Hose 1-1/2 inch (Sold by the Foot).

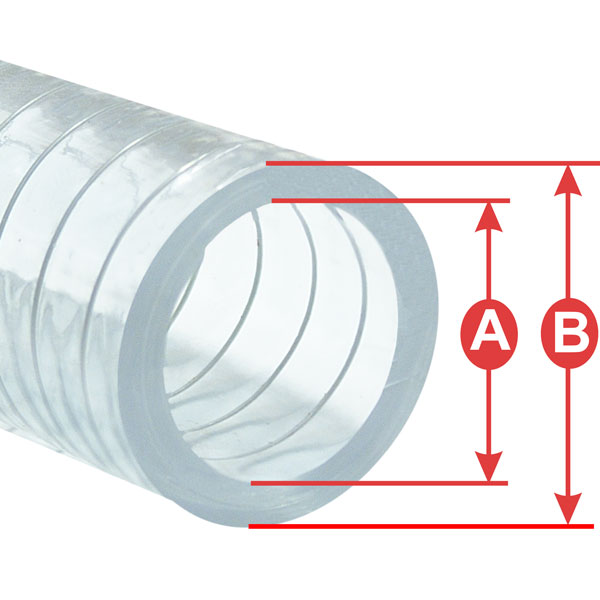

    Common Dimensions:
    Hose Size ID: A= 1.50 inch (38mm)
    Hose Size OD: B= 1.89 inch (48mm)

    Vacuum Rating: 1 mTorr (29.9 inHG)
    Temperature Range: 20-150 °F



Press ESC to Close


P103175 = 0.25 in. Clear Hose P1013184 = 0.25 in. x 100 ft. Roll Clear Hose P103174 = 0.375 in. Clear Hose P1013185 = 0.375 in. x 100 ft. Roll Clear Hose P102139 = 0.50 in. Clear Hose P1013186 = 0.50 in. x 100 ft. Roll Clear Hose P101409 = 0.625 in. Clear Hose P1013187 = 0.625 in. x 100 ft. Roll Clear Hose P101410 = 0.75 in. Clear Hose P1013188 = 0.75 in. x 100 ft. Roll Clear Hose P101411 = 1.0 in. Clear Hose P1013189 = 1.0 in. x 100 ft. Roll Clear Hose P101412 = 1.25 in. Clear Hose P1013190 = 1.25 in. x 100 ft. Roll Clear Hose P101413 = 1.50 in. Clear Hose P1013191 = 1.50 in. x 100 ft. Roll Clear Hose P101414 = 2.0 in. Clear Hose P1013192 = 2.0 in. x 50 ft. Roll Clear Hose P109765 = 2.50 in. Clear Hose P1013193 = 2.50 in. x 50 ft. Roll Clear Hose P1010399 = 3.0 in. Clear Hose P1013194 = 3.0 in. x 50 ft. Roll Clear Hose
