PVC Flex Hose Kit, 2 Foot Length, with Clear Reinforced Hose, KF-40 Stainless Steel Flanges and Hose Clamps

PVC Flex Hose Kit, 2 Foot Length, with Clear Reinforced Hose, KF-40 Stainless Steel Flanges and Hose Clamps

These PVC flexible hose kits are perfect for rough vacuum applications. The hose is made of 1-1/2 inch I.D., clear, flexible PVC hose, reinforced with stainless steel wire. It has a temperature range from -7°C to 65°C (20°F to 150°F).

PVC hoses are are resistant to chemicals, non-marking, non-toxic, silicone-free, and developed specifically for use with mechanical vacuum pumps.

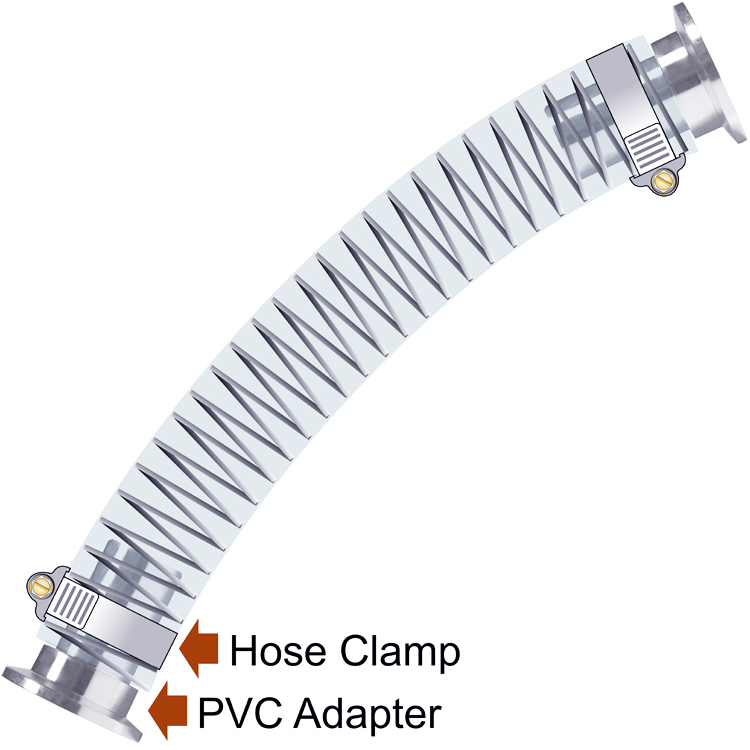

You will receive one pre-cut section of PVC hose, two KF-40 (ISO-KF NW 40) stainless steel flanges and two stainless steel hose clamps, ready for assembly. Overall length is approximately 2 feet once assembled.

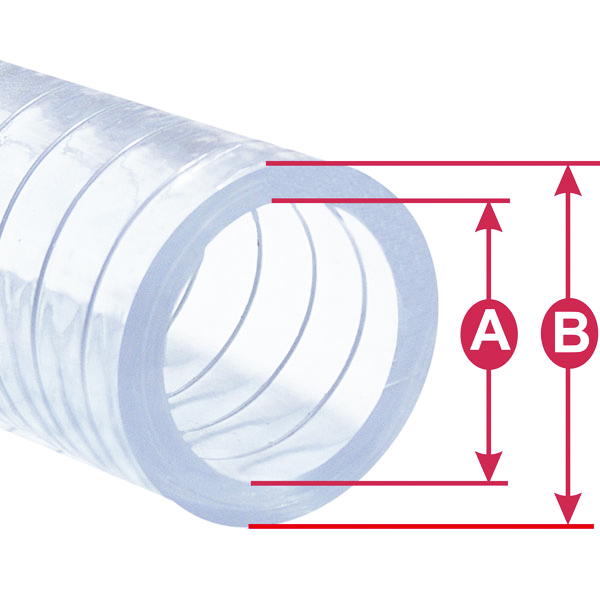

Common Dimensions:

Hose Size ID: A= 1-1/2 inch
Hose Size OD: B= 1.854 inch
Total Length: 24 inches
Flanges: KF-40

Press ESC to Close

Availability Of Kit Components Kit: P103804 - PVC Flex Hose Kit, 2 Foot Length, with Clear Reinforced Hose, KF-40 Stainless Steel Flanges and Hose Clamps
Component	Desc.	Req'd	Avail
Non-Standard	No Component Description Available On Website	2	751
P101391	Adapter KF-40 to 1.5 in. PVC Hose, ISO-KF Flange Size NW-40, Stainless Steel	2	955
P101413	PVC Steel Spring Reinforced Clear Vacuum Hose, 1-1/2 inch ID, Sold by the Foot	2	10645
