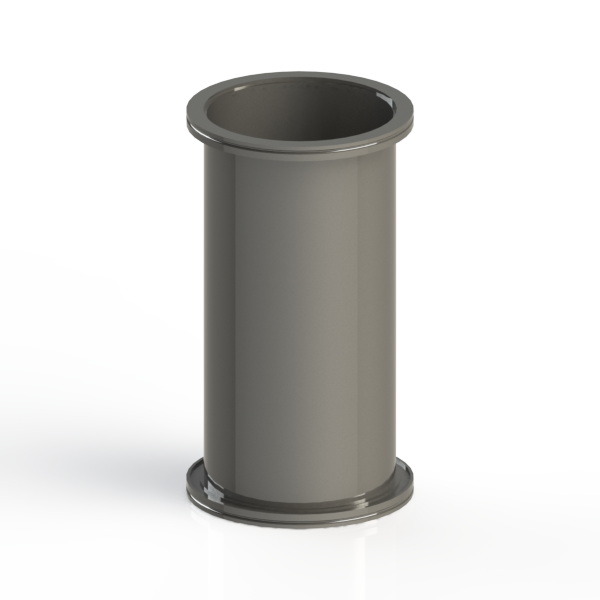

Nipple Full, 12.6 inch height, NW-160 Fittings, ISO-LF Large Flange Size NW-160, Stainless Steel

Nipple Full, 12.6 inch, 320mm height, NW-160 Fittings, ISO-LF Large Flange Size NW-160, 6 inch tube size, Stainless Steel, INF1600600

These full nipples follow International Standards Organization (ISO) standards and have a flange size of NW-160. ISO flanged vacuum fittings are commonly used to build process vacuum plumbing and systems for industrial applications. The fittings are quick to assemble using double claw clamps and a centering ring (please see top right figure - click to enlarge). The Viton® centering ring contains a rubber/elastomeric o-ring. The ISO standard sizes for large flanges are NW-63, NW-80, NW-100, NW-160, NW-200, NW-250, NW-320, NW-400, NW-500, NW-630. These vacuum fittings are made of corrosive resistant stainless steel.

Nipple Full, NW-160 Vacuum Fittings, ISO-LF Large Flange Size NW-160, Stainless Steel
ISO-LF Flange Size: NW-160
Common Dimensions: A = 12.6" (320mm), 6 inch tube size

Press ESC to Close

RoHS Compliance Download

P101713.sldprt

P101713.step

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:
