Condition:
  New
Part Number:
  P104011
Warranty:
  Against Product Defect

Available Now:
4  



$584.49


Print Version

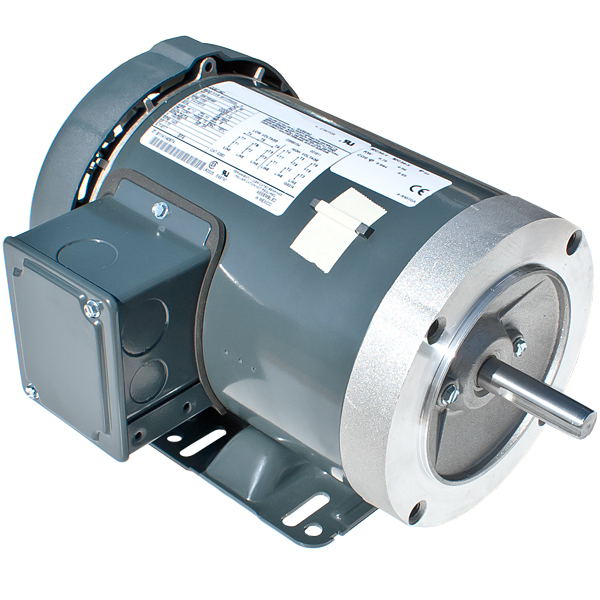

New Welch 1397 Vacuum Pump, Replacement Electric Motor, 3 phase 208-230/460 VAC, 4 Bolt Base


New Welch 1397 Vacuum Pump, Replacement Electric Motor, 3 phase 208-230/460 VAC, 4 Bolt Base

These motor replacements fit the Welch 1397 DuoSeal Belt Drive Rotary Vane vacuum pumps. They have the 4 bolt-hole pattern base and a 5/8 in diameter keyed shaft for mounting the pulley. These Welch 1397 electric motor replacements are 3-Phase and can be operated at low voltage 208-220 VAC or at high voltage 440-480 VAC. These motors are easy to install. They do not come with a power cord (power cord has to be installed). The power cords are available (please contact our sales department 505-872-0037).

Motor Specification:

  • Horsepower: 1 HP
  • Frame: 56
  • Phase: 3
  • Shaft: 5/8 inch, Keyed
  • Voltage: 208-220/440-480 VAC (follow supplied wiring diagram)
  • 4 Bolt Base to Match Welch Base Plate
  • Power Cord: Not Included
  • Installation: Easy to Install
