Home > > > NPT Aluminum Bulkhead Feedthrough Fitting 1/8" to 1/8" Female FNPT with Viton O-Ring, fit 1" Hole Through, up to 1" Thick

Condition:

New

Part Number:

P105371

Warranty:

Against Product Defect

Available Now: 6

RoHS Compliance Sticker

$244.90

Print Version

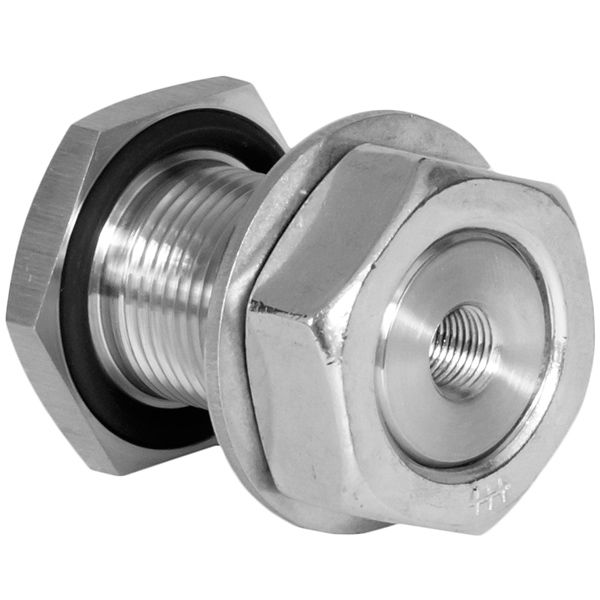

NPT Aluminum Bulkhead Feedthrough Fitting 1/8" to 1/8" Female FNPT with Viton O-Ring, fit 1" Hole Through, up to 1" Thick

NPT Aluminum Bulkhead Feedthrough Fitting 1/8" to 1/8" Female FNPT with Viton O-Ring, fit 1" Hole Through, up to 1" Thick.

These high vacuum rated aluminum bulkhead feedthrough fittings have a Viton O-ring and have 1/8" FNPT female national pipe threads on each side. These fittings fit a 1" hole through and can be used on bulkheads up to 1" thick.

Aluminum 1" FNPT Bulkhead Feedthrough Fitting Data:

Body Material: 6061-T6 Aluminum
Seal: Viton O-Ring
Ultimate Vacuum: 10^-8 Torr (High Vacuum)
Dimensions: A = 1.25" Max., B = 1.0", C = 1.75" Max., D = 1.875"

Press ESC to Close

RoHS Compliance Download

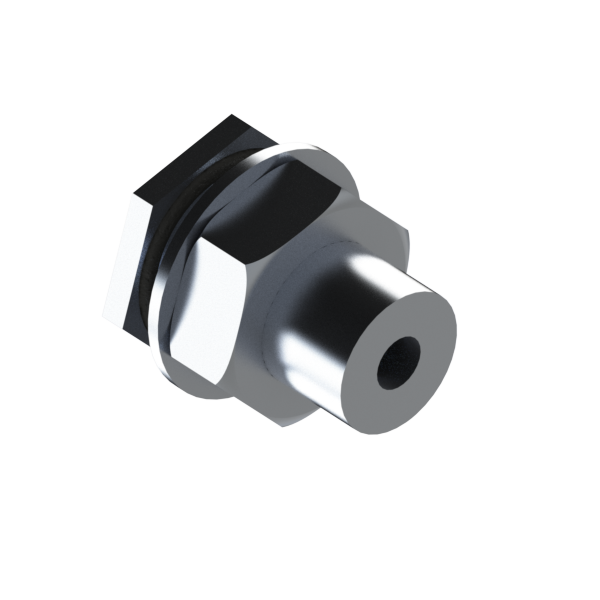

P105371.sldprt

P105371.step

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

eDrawings Viewer For Windows
eDrawings Viewer For MAC.
