NEW Edwards MF30 (MF-30) Oil Mist Filter for E2M28 and E2M30
(Edwards Part Number A462-33-000)

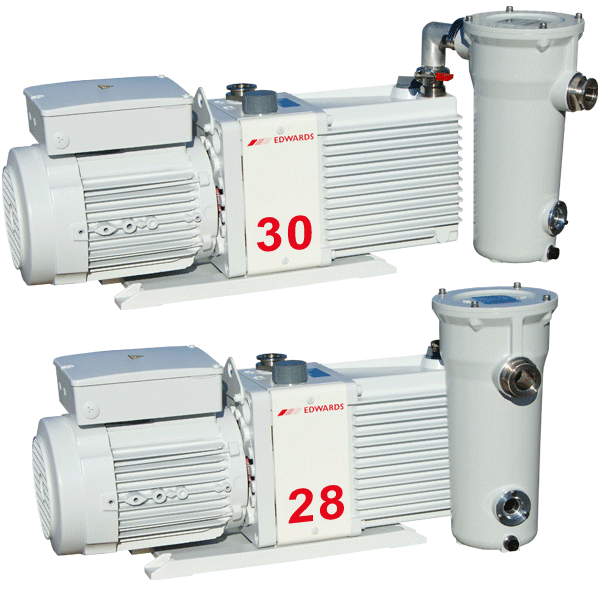

This MF30 (MF-30) Outlet Oil Mist Filter is suitable for the Edwards Rotary Vane pumps E2M28 and E2M30. Supplied with NW25 clamp, NW25 90 degree Elbow, centering rings, O-Rings, 2 NW25 to 3/4 BSP adapters, 1 oil element filter. The Benefits of the Oil Mist Filter includes: Protection from oil mist emissions as required by COSHH and health and safety regulations. If the oil element becomes blocked, an integral pressure relief valve opens. This filter is very efficient at 99.999% DOP test and is also azide proof. You can also monitor the oil level through the sight glass provided and the body has a drain plug so that you can drain the trapped oil from the filter. For complete specifications download instruction manual (see below avaliable below).
Edwards MF30 Oil Mist Filter Specifications:
Fits Pump Models:
E2M28 and E2M30
Inlet & Exhaust Flanges:
ISO KF25 (NW25)
Dimensions:
Height 12.5 x Width 8 inches
Weight:
10 lb
Material:
Cast Aluminum Body
Oil Filter Element:
Epoxy Impregnated Glass Fiber
Replacement Oil Filter Part Number:
A223-04-057
Edwards MF30 Part Number:
A462-33-000
