The MF 100 Oil Mist Filter removes oil mist (vapor) from the process gases exhausted from the outlet of an oil sealed pump. The filters remove both odor and oil vapor and so prevent it from reaching the atmosphere and the workplace. This filter is very efficient at 99.999% DOP test. For complete specifications download the instruction manual (see below available downloads).
Supplied with two NW25 "C" clamps, NW25 elbow, two NW25 centering ring and O-rings, bolts, washers, mounting brackets and studs.

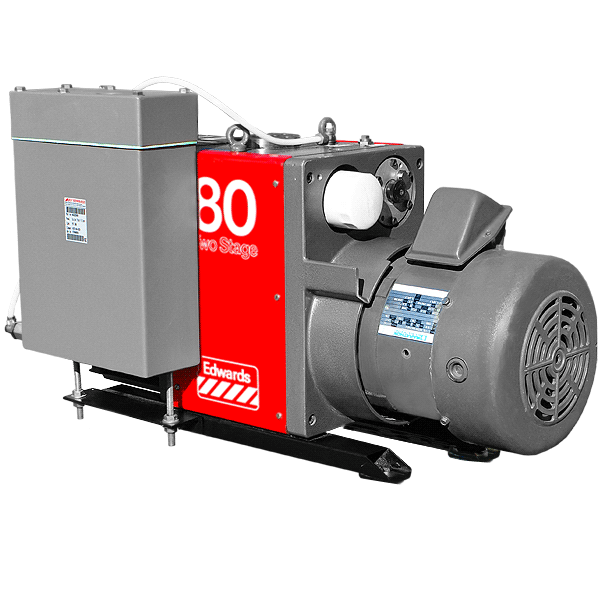

Edwards MF100 MF-100 Filter, Filter Media Included. Specifications: MF100 Edwards Oil Mist Filter - Fits The Following Pumps: Edwards E1M40, E2M40, E1M80, E2M80 Dimensions: Height 15.25" Width 6" Length 10.75" Ports: Outlet 1 inch BSP, Inlet NWKF25 Mass: 12 kg Number Filter Elements: 2 Material: Steel Edwards Part Number for (NEW) MF100: PN A462-03-000 Edwards Replacement Filter Element: PN A223-04-020
