Condition:
  New
Part Number:
  P1013772
Warranty:
  Full Manufacturer's Warranty

Available Now:
3  



$1,050.00


Print Version

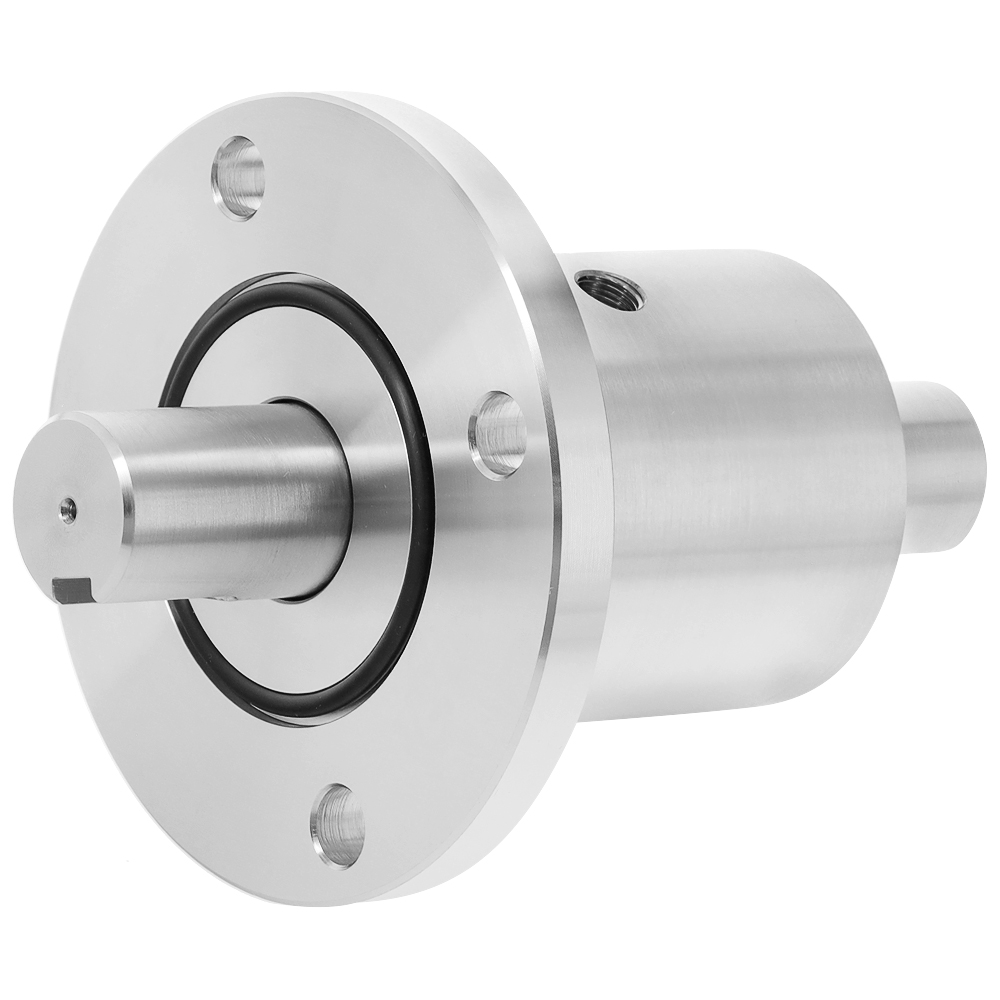

MoreTec Solid Shaft, 25-mm Shaft, Flange Mounted Bolt Holes On 85-mm BCD, Ferrofluidic Sealed, Water Cooled, Rotary Feedthrough, Rotary Speed < 500 RPM, Torque 1066 Kg cm, PN SFB025WNC23


MoreTec Solid Shaft, 25-mm Shaft, Flange Mounted Bolt Holes On 85-mm BCD, Ferrofluidic Sealed, Water Cooled, Rotary Feedthrough, Model SFB025WNC23

This is a 25-mm solid shaft MoreTec Ferrofluidic sealed feedthrough model SFB025WNC23. This feedthrough has the following specifications:
  • Torque: 1066 Kg cm
  • Shaft: 25-mm Diameter
  • Mounting: Flange Mount With (4) 10-mm Bolts Holes on 85mm BCD
  • Cooling: Water Cooled
  • Rotary Speed: < 500 RPM
  • Vacuum Base: 10-7 Torr
  • Vacuum Leak Check To Less Than 10-12 Pa.M3/sec Helium
  • Differential Pressue: 0.1 MPa
  • Temperature: 0-80 degrees C
  • Type of Gas: Non-reactive gas
For precision measurement specifications, refer to the CAD mechanical drawing in pdf format.




Press ESC to Close


Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

E-drawing LogoeDrawings Viewer For Windows
E-drawing LogoeDrawings Viewer For MAC.
