Metal Hose Thin Wall, 10 in. NW-100 Vacuum Fittings, ISO-LF Large Flange Size NW-100, Stainless Steel
These metal hoses follow International Standards Organization (ISO) standards and have a flange size of NW-100. ISO flanged vacuum fittings are commonly used to build process vacuum plumbing and systems for industrial applications. The fittings are quick to assemble using double claw clamps and a centering ring (please see top right figure - click to enlarge). The Viton® centering ring contains a rubber/elastomeric o-ring. The ISO standard sizes for large flanges are NW-63, NW-80, NW-100, NW-160, NW-200, NW-250, NW-320, NW-400, NW-500, NW-630.
Metal Hose Thin Wall, 10 in. NW-100 Vacuum Fittings, ISO-LF Large Flange Size NW-100, Stainless Steel
ISO-LF Flange Size: NW-100
Wall Thickness: 0.06 in. (0.15 mm)

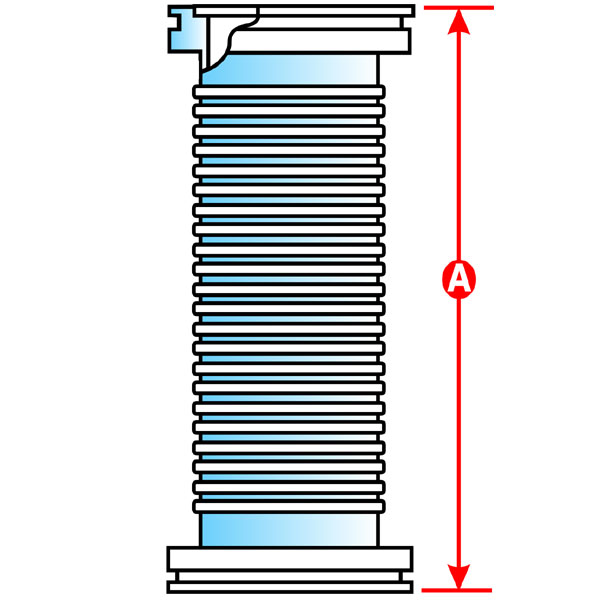

Common Dimensions: A = 9.84" (250mm)
