Condition:
  New
Part Number:
  P109331
Warranty:
  Full Manufacturer's Warranty

Available Now:
1  



$4,200.00


Print Version

Matheson Model 3613A Single Stage High Purity SS Regulator with Tied Diaphragm, CGA-590, Delivery Pressure Range 2-30 PSIG, SEQ3613A590


Matheson Model 3613A Single Stage High Purity SS Regulator with Tied Diaphragm
SEQ3613A, CGA-590



A CGA fitting is the standardized system for the attachment of a compressed gas cylinder to the required regulator or transfer line. The three digit number, CGA (XXX), corresponds to specific gasses which that fitting is tailored for. See CGA Connection Chart.pdf in the downloads section for specific gas types compatible with this Stainless Steel CGA-590 fitting.

Regulator Specifications
  • Maximum Inlet Pressure: 3000 psig (20,700 kPa)
  • Maximum Flow Rate: 550 SCFH (320 SLPM)(At 2500 psig, N2)
  • Flow Capacity (Cv): 0.09
  • Operating Temperature: -40°F to 160°F (-40°C to 71°C)
  • Porting (Regulator Body): 1/4” NPT Female
  • Porting Configuration: 2 High, 2 Low
  • Delivery Pressure Range: 2-30 PSIG
  • Delivery Pressure Gauge: Vac-0-60 PSIG
  • Cylinder Pressure Gauge: 0-3000 PSIG

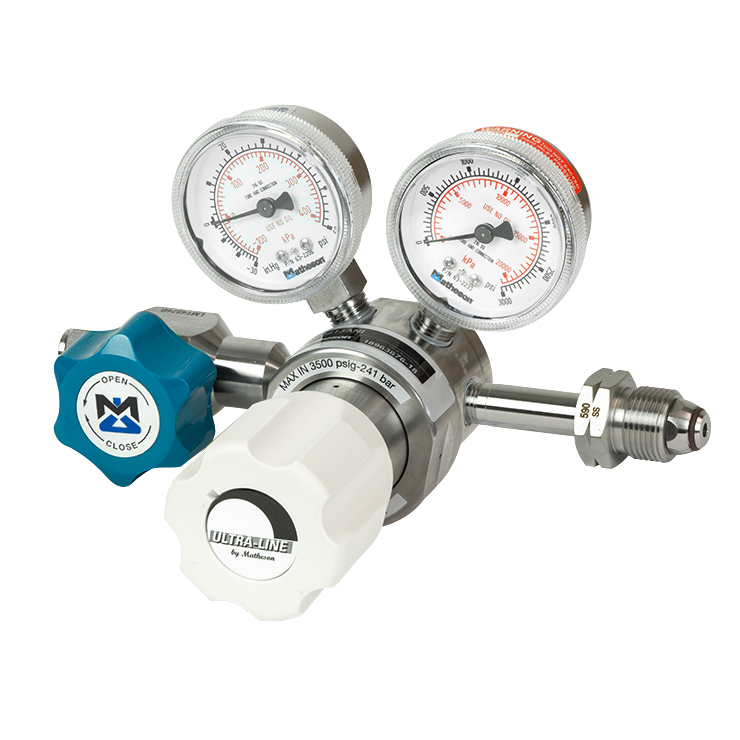

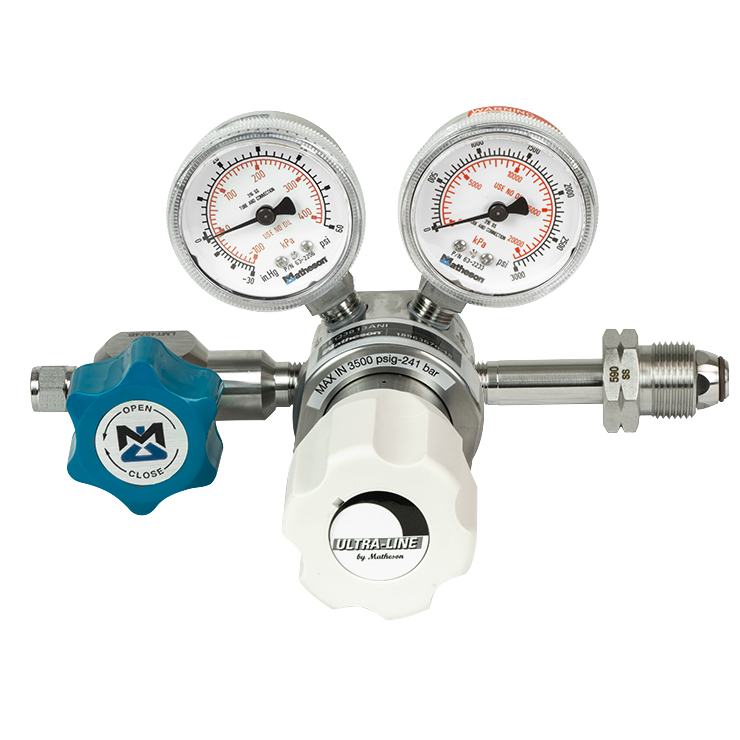

This is a Matheson Single Stage 316 Stainless Steel regulator with a 1/4 in compression tube outlet connection and 1/4 in FNPT body porting. It comes equipped with 2 inch inlet and delivery pressure gauges, an outlet diaphragm valve, metal to metal seals, Nickel plated brass bonnet, and a PCTFE seat.

This Matheson series 3610A, model 3613A regulator is to be used in applications requiring delivery pressures up to 100 PSIG and can accept a maximum inlet pressure of 3000 PSIG. This regulator is suitable for specific applications requiring the supply of particular corrosive, toxic, or pyrophoric gases where a positive closure of the regulator is desired (eg. Semiconductor Manufacturing).

Single-Stage vs. Two-Stage

Both single-stage and two-stage regulators operate by reducing the pressure of gas supplied by a cylinder to an appropriate output level. The intake and delivery pressure ranges of regulators do not depend on how many stages they have, but by each regulators mechanical characteristics. When considering a single vs. a two-stage regulator there are two things to keep in mind: Droop and Supply Pressure Effect. Droop is the decrease in output pressure caused by an increase in flow rate. Supply Pressure Effect is simply the variation in delivery pressure from the cylinder to the regulator.

Single Stage regulators will experience less droop with varying flow rates but a large supply pressure effect and need to be monitored and adjusted by an operator or used in applications where supply pressure will remain constant. Two-Stage regulators inherently control for variations in supply pressure while producing a constant output and therefore can be used without an operator present and in applications which require a very specific delivery pressure. The specification sheet for this series of regulator can be found in the downloadable section as a .PDF.
