Pfeiffer Part Number: PTT02140010 The Pfeiffer PKR 360 is a FullRange® Pirani cold cathode gauge that provides optimal measurements in the range of 1x10 to atmosphere. The PKR 360 features two measurement circuits: Pirani and Cold Cathode. The Pirani circuit is active at all times and the cold cathode circuit becomes active after passing the 1x10 Torr threshold, providing a full range of measurement and allowing for use in a wide variety of applications. Vacuum pressure can be displayed via a DCU or Pfeiffer TPG 361 Vacuum Gauge controller. The gauge can not be used for the measurement of highly flammable or combustible gases in the mix-ture with an oxidizing agent (e.g. atmospheric oxygen) within the explosion limits

The Pfeiffer PKR 360 is a FullRange® Pirani cold cathode gauge that provides optimal measurements in the range of 1x10 to atmosphere. The PKR 360 features two measurement circuits: Pirani and Cold Cathode. The Pirani circuit is active at all times and the cold cathode circuit becomes active after passing the 1x10 Torr threshold, providing a full range of measurement and allowing for use in a wide variety of applications. Vacuum pressure can be displayed via a DCU or Pfeiffer TPG 361 Vacuum Gauge controller. The gauge can not be used for the measurement of highly flammable or combustible gases in the mix-ture with an oxidizing agent (e.g. atmospheric oxygen) within the explosion limits

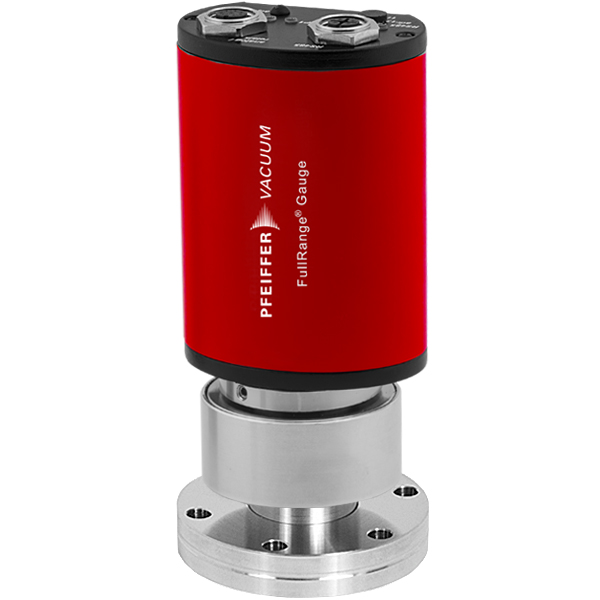

Pfeiffer Pirani Cold Cathode Gauge X MPT 200 AR, DN 40 CF-F, CF 2.75 inch Inlet Flange provide measurable vacuum pressure in the range 750 to 3.5 x 10-9 Torr. The vacuum pressure can be displayed via a DCU or TCP 350 turbopump controller or via the DPG 202, TPG 261, 262, or 256 Active Gauge controllers. They have an RS-485 interface which can be used to connect up to 16 measuring points to a controller. This is the X MPT 200 AR (Analog Relay) version and also has 2 set points. The (8-pin, A-coded) connector with the text "analog/relay" can be used to connect the gauge to an ActiveLine controller and to evaluate the switching contacts. The analog signal and relay contacts can also be evaluated using customer-specific circuitry. These gauges are bakeable with electronics removed to 180°C. This pricing is for the Pfeiffer X MPT 200 AR Digiline Pirani Cold Cathode Gauge only. All Pfeiffer controllers and signal cables sold separately on this website. For complete operating instructions and specifications scroll down to (AVAILABLE DOWNLOADS) below and download the PDF's.

Pfeiffer Connecting cable for MPT 200 AR Digital Full Range Pirani/Cold Cathode Gauge to DigiLine Controller PN:PT348250-T. This pricing is for the Pfeiffer X MPT 200 AR Connecting cable only. All Pfeiffer controllers and gauges sold separately on this website. For complete operating instructions and specifications on other Pfeiffer products scroll down to (AVAILABLE DOWNLOADS) below and download the PDF's.

NEW Pfeiffer Pirani Cold Cathode Gauge X MPT 200 AR, KF25 DN25 ISO-K Inlet Flange provide measurable vacuum pressure in the range 750 to 3.5 x 10-9 Torr. The vacuum pressure can be displayed via a DCU or TCP 350 turbopump controller or via the DPG 202, TPG 261, 262, or 256 Active Gauge controllers. They have an RS-485 interface which can be used to connect up to 16 measuring points to a controller. This is the X MPT 200 AR (Analog Relay) version and also has 2 set points. The (8-pin, A-coded) connector with the text "analog/relay" can be used to connect the gauge to an ActiveLine controller and to evaluate the switching contacts. The analog signal and relay contacts can also be evaluated using customer-specific circuitry. These gauges are bakeable with electronics removed to 180°C. This pricing is for the Pfeiffer X MPT 200 AR Digiline Pirani Cold Cathode Gauge only. All Pfeiffer controllers and signal cables sold seperately on this website. For complete operating instructions and specifications scroll down to (AVAILABLE DOWNLOADS) below and download the PDF's.
