The MKS PR4000B is a half-rack Digital Power Supply and Display module. It is available with either one or two channels, and has a 4.5 place backlit LCD display as standard. Both versions support internal or external set points and master/slave control schemes. The single-channel version can control one Baratron® pressure transducer or one Mass-Flo® meter or controller. The dual-channel version supports up to two pressure transducers or two mass flow controllers, or one of each. Engineering units are user-selectable as Torr, mTorr, kTorr, Pa, kPa, cmH2O, psi, N/qm, ìbar, mbar and bar for pressure transducers; sccm, scm, slm, scfm, scfh for flow meters or controllers and V, % and °C.

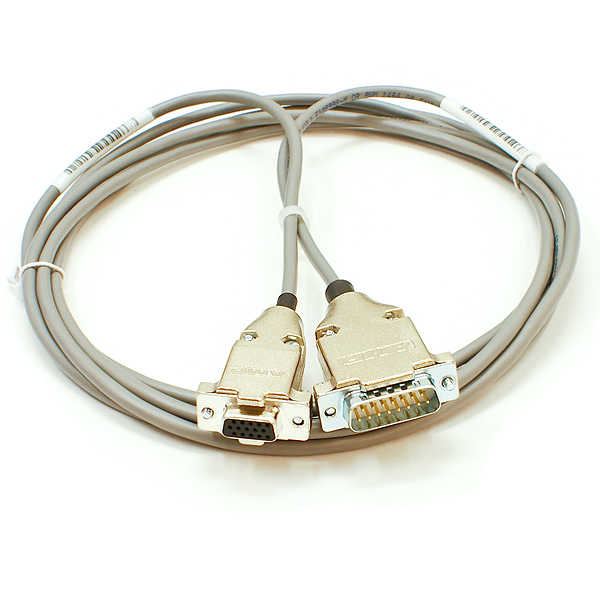

The MKS Mass Flow Controller Cable connectsa PR4000 controller to MKS mass flow meters and controllers with 15-pin D-sub connectors. This is the Cable ONLY. The MKS PR4000B is a half-rack Digital Power Supply and Display module. It is available with either one or two channels, and has a 4.5 place backlit LCD display as standard. Both versions support internal or external set points and master/slave control schemes. The single-channel version can control one Baratron® pressure transducer or one Mass-Flo® meter or controller. The dual-channel version supports up to two pressure transducers or two mass flow controllers, or one of each. Engineering units are user-selectable as Torr, mTorr, kTorr, Pa, kPa, cmH2O, psi, N/qm, ìbar, mbar and bar for pressure transducers; sccm, scm, slm, scfm, scfh for flow meters or controllers and V, % and °C.

This cable is for the MKS Controllers PR4000, 146, 186, 651, 660 and connects to the terminal block on the 223, 622, 623 Baratron® Capacitance Manometers. These cables are 10 feet long.

This cable is for the MKS PR4000 Controller, 146 or 186, and connects to ALL MKS Mass-Flo® Controllers and Mass-Flo® Meters with 15 pin connectors. These cables are 10 feet long.

This cable is for the MKS Controllers PR4000, 146, 186, and connects to ALL MKS Mass-Flo® Controllers and Mass-Flo® Meters with 20 pin card edge. These cables are 10 feet long.

This cable is for the MKS Controllers PR4000, 146, 186, to 722, 750B Baratron® Capacitance Manometers with 9 pin Connectors, and is 10 feet long.

This cable is for the MKS Controllers PR4000, 146, 186, to 722, 750B Baratron® with 15 pin Connectors Capacitance Manometers. These cables are 10 feet long.

This cable is for the MKS Controllers PR4000, 146, 186, and connects to ALL MKS Mass-Flo® Controllers and Mass-Flo® Meters with 9 pin connectors. These cables are 10 feet long.
