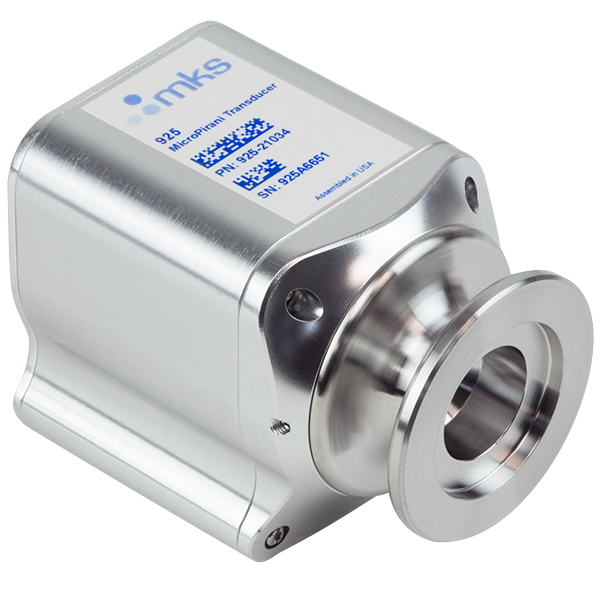

MKS HPS 925 MicroPirani Transducer NW/KF 16, RS-232, 10-5 to Atmosphere with Display. PN: 925-11034

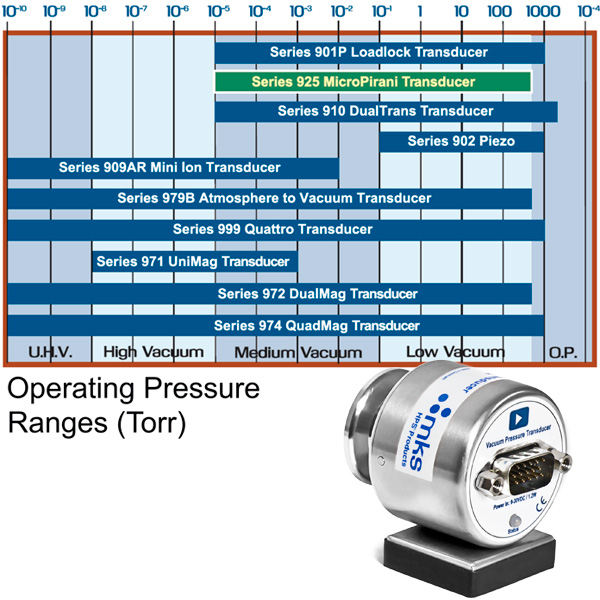

The MKS 925 features an increased pressure measurement range from 1x10^-5 Torr to atmosphere, two decades below a standard Pirani sensor. The Series 925 MicroPirani™ transducer is a thermal conductivity gauge and incorporates a MEMS MicroPirani™ sensor technology in a compact package. The 925 has three optional set point relays. With its extended range, the 925 may replace multiple transducers, in certain applications. This has a KF16 flange RS232/Analog, 0-9VDC 1V/Decade, 15 pin sub-D male, and 3 relays.

The integrated touch-screen display is user configurable; the user can change pressure units, orientation and has access to set point parameters as well as gas type. The display also indicates the status of the available set point relays. Displayed reading can be seen from >5 meters away on the high contrast display. For Complete Specs and Operation Information See AVAILABLE DOWNLOADS Below.
