Condition:
  New
Part Number:
  P1010647
Warranty:
  Against Product Defect
Out of Stock  
Expecting:   11
Anticipated Arrival:  6 on 2024-11-19



$1,426.13


Print Version

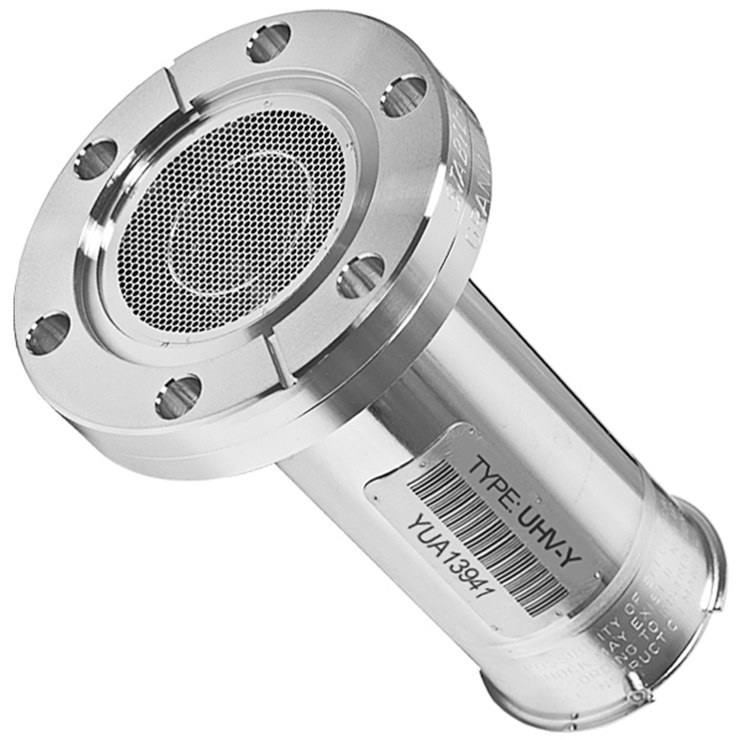

MKS Granville Phillips Stabilion 370 Stabil-Ion Gauge, (UHV Range) w/ Dual Yttria Coated Iridium Filaments CF 2.75 in. PN: 370121


MKS Granville Phillips 370 Stabil-Ion Gauge, (UHV Range) with Dual Yttria Coated Iridium Filaments, CF 2.75 Inch Conflat-Type Flange and Calibration Memory Module.
MKS Granville Phillips Part Number: 370121

MKS Granville Phillips Stabilion 370 Stabil-Ion Gauge, (UHV Range) with Dual Yttria Coated Iridium Filaments 2.75 Inch Conflat-Type Flange and Calibration Memory Module. All metal gauge tube means no glass breakage, glass decomposition, or helium permeation. Complete electrostatic shield and grounded metal gauge tube housing provides a stable electrical environment and shields against external electrical influences. Burnout resistant filaments. Precision-wound, stress-relieved grid retains shape even after high temperature degassing. Tensioned filaments remain in position over time, providing long-term repeatability.

This gauge comes with a memory module, each Stabil-Ion Gauge is individually calibrated and supplied with a memory module matched to its own calibration data. If you replace a Stabil-Ion Gauge on your system, you also replace the memory module supplied with the new gauge and you immediately have a calibrated system again. For use with series 370 Stabil-Ion Gauge Vacuum Measurement Controllers. Download a .PDF Below for complete Specs and Advantages of the Stabil-Ion Vacuum Gauge. PN 370121

Works With: MKS Granville Phillips Models 370 Stabli-Ion Gauge Vacuum Measurement Gauge Controller.


Press ESC to Close

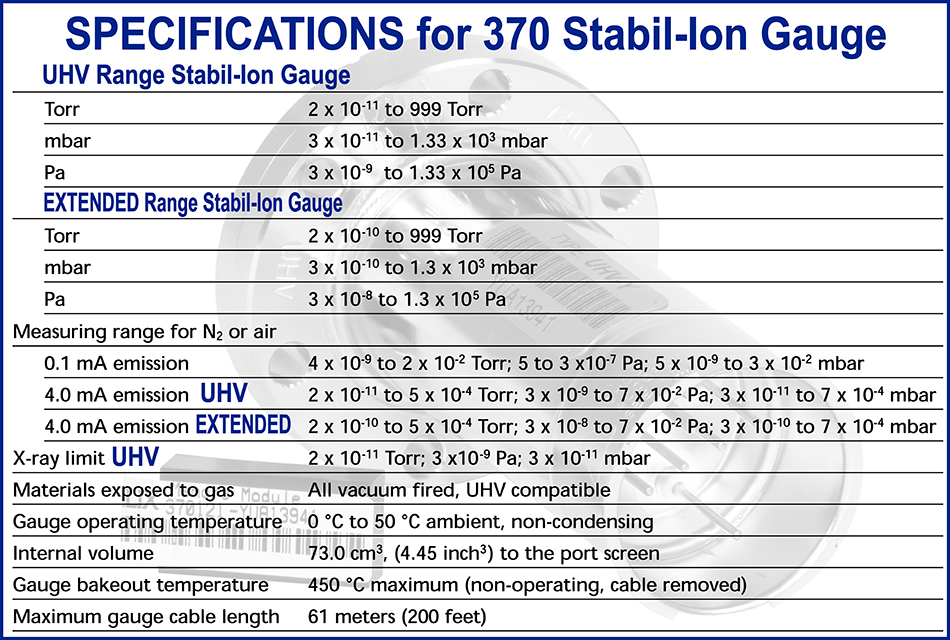

PDF Logo Granville Phillips 370 Series Stabil-Ion Guage Specs and Brochure.pdf
