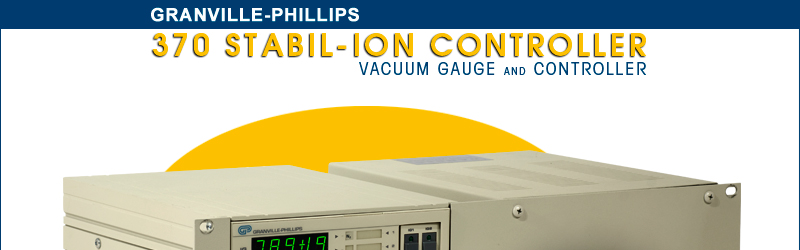

MKS Granville Phillips 370 Stabil-Ion Vacuum Gauge Controller with power supply, Dual Convectron and RS-232, 1-Phase 115 VAC.
MKS Granville Phillips Part Number: 370501-A10-T1

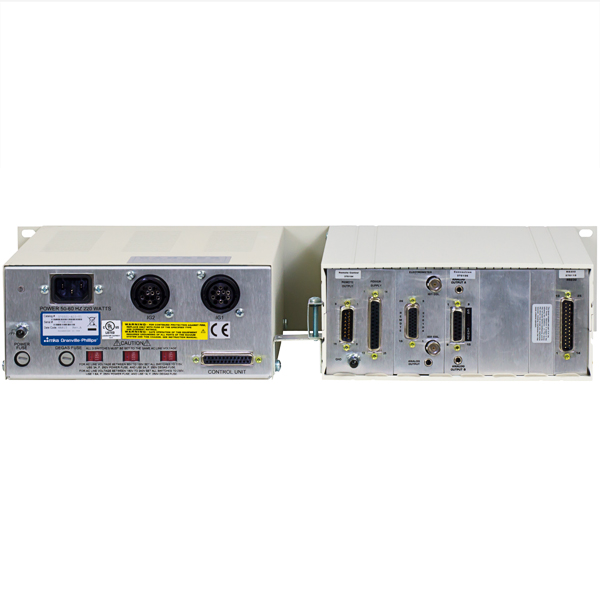

MKS Granville Phillips 370 Stabil-Ion Gauge Controller, Left mount, side-by-side with power supply for 19-inch rack, With Dual Convectron, with RS-232 1-Phase 115 VAC. The MKS Granville Phillips Stabil-Ion vacuum gauge controller combines the latest technology in ionization gauges and control electronics, giving you the most reliable and accurate vacuum pressure measurements for your systems and research. Bright LEDs display the pressures read by the Stabil-Ion and Convectron Gauges. The flexible, modular design offers a range of computer interfaces, setpoint control relays, dual Convectron Gauge operation, and digital display in Torr, Millibar, or Pascal to meet your specific requirements.
If the Stabil-Ion Gauge and memory module are replaced, processing results are much more likely to remain the same. If you need vacuum measurements that are accurate and repeatable over time, the Stabil-Ion Gauge and Controller is your answer. Every Stabil-Ion Gauge is individually calibrated at 15 pressure values and supplied with a memory module matched to its own calibration data. This provides gauge-to-gauge reproducibility which is essential for process replication.
Benefits
• All-metal, rack-mount controller for Stabil-Ion and Convectron® vacuum gauges is noise-immune and CE compliant
• The latest ionization gauge technology provides accurate vacuum pressure measurement from the 10-11 Torr range (10-11 mbar, 10-9 Pa)
• Convectron Gauge option extends pressure measurement to atmosphere
• Flexible design allows for optional setpoint relays and digital interfaces
• Three-digit display of pressure measurements
• Stabil-Ion Gauge with memory module of calibration data
• Ultra-clean gauge construction allows rapid response during pumpdown
• Dual filaments increase equipment uptime
Other features include analog output, selectable emission current, degas timer, and selectable N2/ Ar gas for Convectron. These features are sold separately.
