Home > > > Liquid or Gas Double Feedthrough, 0.25 Inch OD Tube, Flange KF-25 Vacuum Fittings, ISO-KF Flange, SS

Condition:

New

Part Number:

P104211

Warranty:

Against Product Defect

Available Now: 33

RoHS Compliance Sticker

$267.02

Print Version

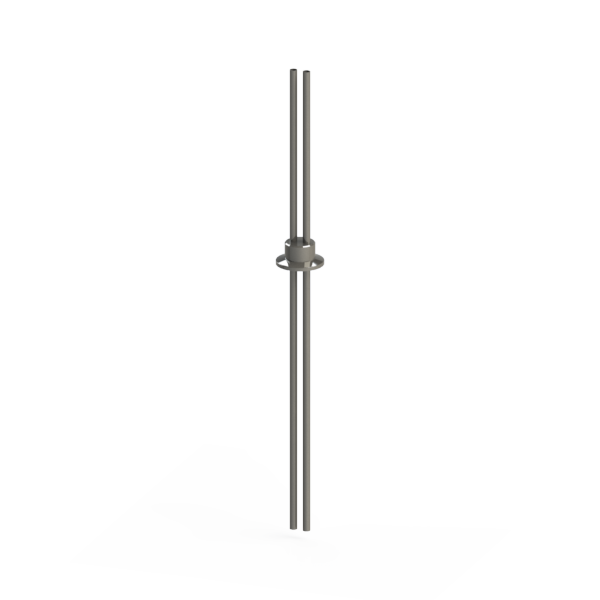

Liquid or Gas Double Feedthrough, 0.25 Inch OD Tube, Flange KF-25 Vacuum Fittings, ISO-KF Flange, SS

Liquid or Gas Double Feedthrough, 0.25 Inch OD Tube, Flange KF-25 Vacuum Fittings, ISO-KF Flange Size NW-25, Stainless Steel

These Feedthroughs, Liquid or Gas Double Tubes have a flange size of ISO KF25 NW-25. They are often called quick flange fittings because they are quick to assemble. A circumferential clamp and centering ring form the vacuum seal between the connecting flanges. The centering ring contains a rubber elastomer o-ring. These Feedthroughs for quick flange fittings come in either single or double 1/4 inch OD tube, KF-25 or KF-40 flange sizes. They are made of corrosive resistant stainless steel.

The Feedthroughs are Stub Blanks bored through with Double 1/4" tubes
ISO-KF Flange Size: NW-25
Common Dimensions: A = 9.10" (230mm), B = 15.70" (400mm)
Tube Wall Thickness: 0.035" (0.9mm)
Feedthrough Tubing OD: 0.25" (6mm)
Material: 304 Stainless Steel

Press ESC to Close

RoHS Compliance Download

P104211.sldprt

P104211.step

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

eDrawings Viewer For Windows
eDrawings Viewer For MAC.
