Condition:
  New
Part Number:
  P1012621
Warranty:
  Leybold Warranty

Available Now:
1  

RoHS Compliance Sticker


$5,597.10


Regular Price: $6,219.00

On Sale Flyer
Print Version

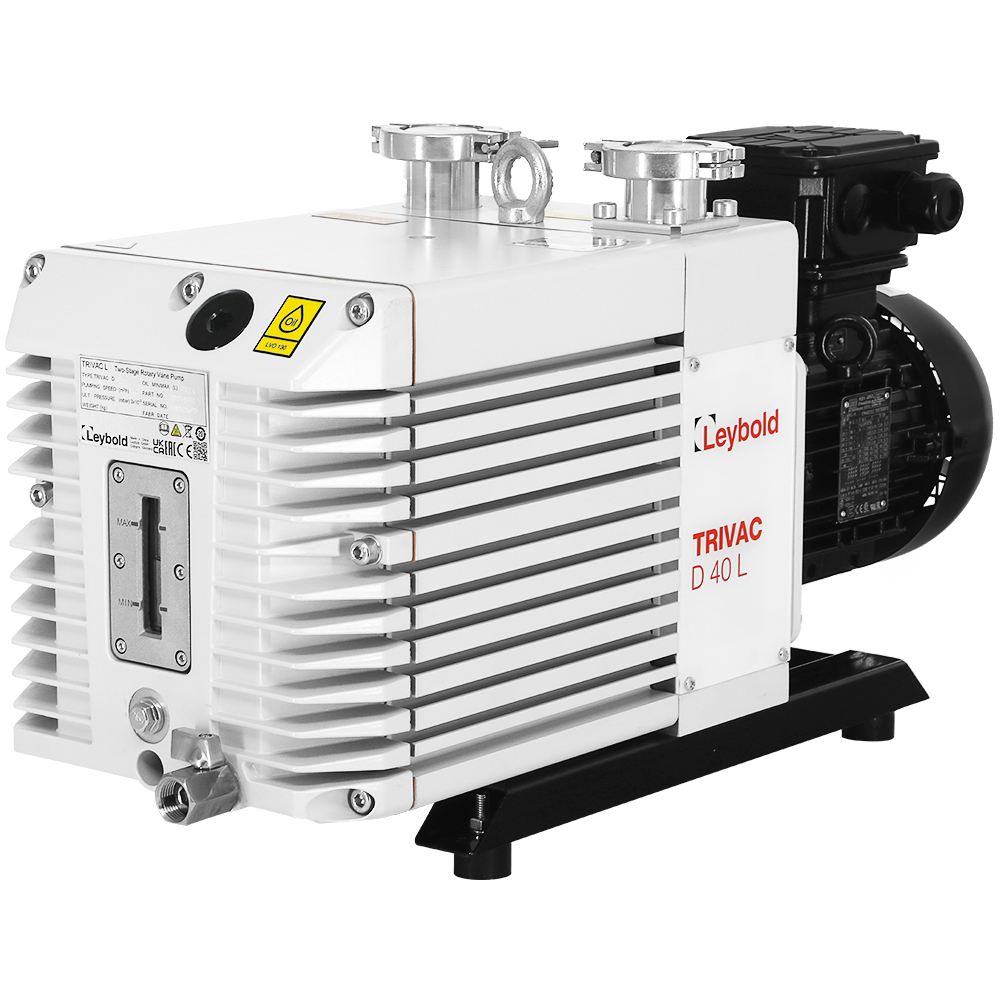

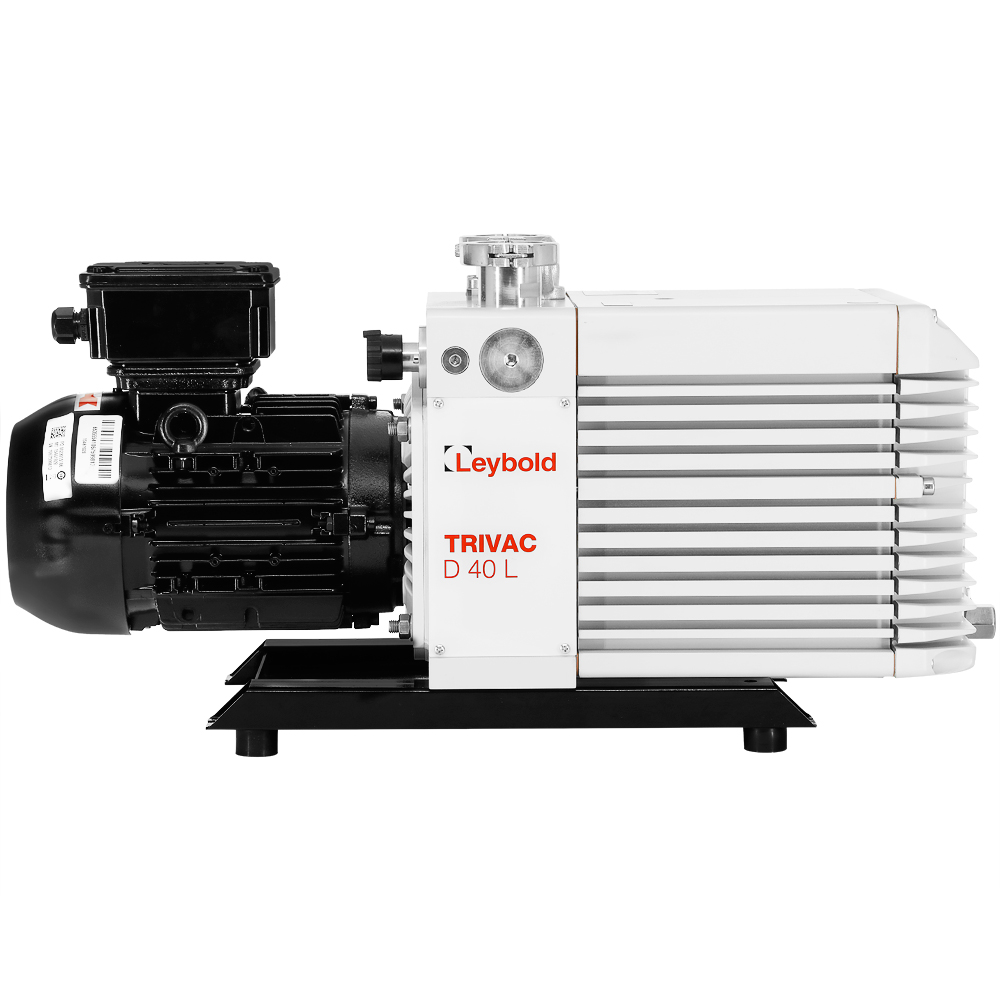

Leybold TriVac D40L TriVac Dual Stage Rotary Vane Vacuum Pump Three Phase 230/460 VAC 29.4 CFM, PN: 1019040V01


Leybold TriVac D40L TriVac Dual Stage Rotary Vane Vacuum Pump Three Phase 230/460 VAC 34.7 CFM.
Leybold Part Number: 1019040V01.

This Leybold TriVac D40L is a dual-stage rotary vane vacuum pump with integrated anti-suckback valve and gas ballast. This pump is fitted with a three phase, 230/460 VAC, 50/60Hz motor which draws 1.3kW. At 60 Hz it has a pumping speed of 29.4 cfm (50 m3/hr) and an ultimate pressure of 2.2 x 10-3 Torr (3 x 10-3 mbar). Inlet and outlet ports are KF-40. This pump has a noise level of 60 dB(A). The D40L pump requires 3.1 - 4.1 liters of LVO 130 oil (not included, see part number P108582). This D40L three phase pump is not supplied with accessories for electrical connection. It must be connected via the appropriate cable, and a suitable motor protection switch.

Included with the D40L pump are:
  • 1 centering ring
  • 1 centering ring with dirt trap
  • 2 clamping rings DN 40 KF
  • Operating Instructions (manual) or QR sheet to download it
  • Spare Parts List

The TriVac L series of pumps are suited for pumping water vapor within the specified water vapour tolerance limits. Condensable vapors that can liquify when being compressed inside the pump and exceed the vapor tolerance of the pump should be avoided. In the case of wet processes we recommend the installation of liquid separators upstream and downstream of the pump as well as the use of the gas ballast. Trivac T pumps are not designed for pumping dusty, aggressive, corrosive, flammable or explosive gases or gas mixtures, or for pumping oxygen or other highly reactive gases in concentrations greater than in normal ambient atmosphere (>21%).

    Applications Include:
  • Backing high-vacuum pumps (turbo, diffusion, cryo...)
  • Backing roots pumps
  • Backing mass spectrometers
  • Refrigeration system evacuation
  • Epoxy degassing
  • Vacuum sterilization
  • Freeze drying
  • Vacuum centrifugal applications
  • Vacuum distillation
  • Space research
  • Other vacuum processes

We carry repair kits for most of the pumps we sell, have welded and modular chambers of all sizes, and have all the fittings, hoses, valves, gauges, and other accessories needed to build your custom vacuum solution.

Please see the operating instruction manual located in the downloads for more information about this Trivac D40L pump, Leybold part number 1019040V01.



Press ESC to Close

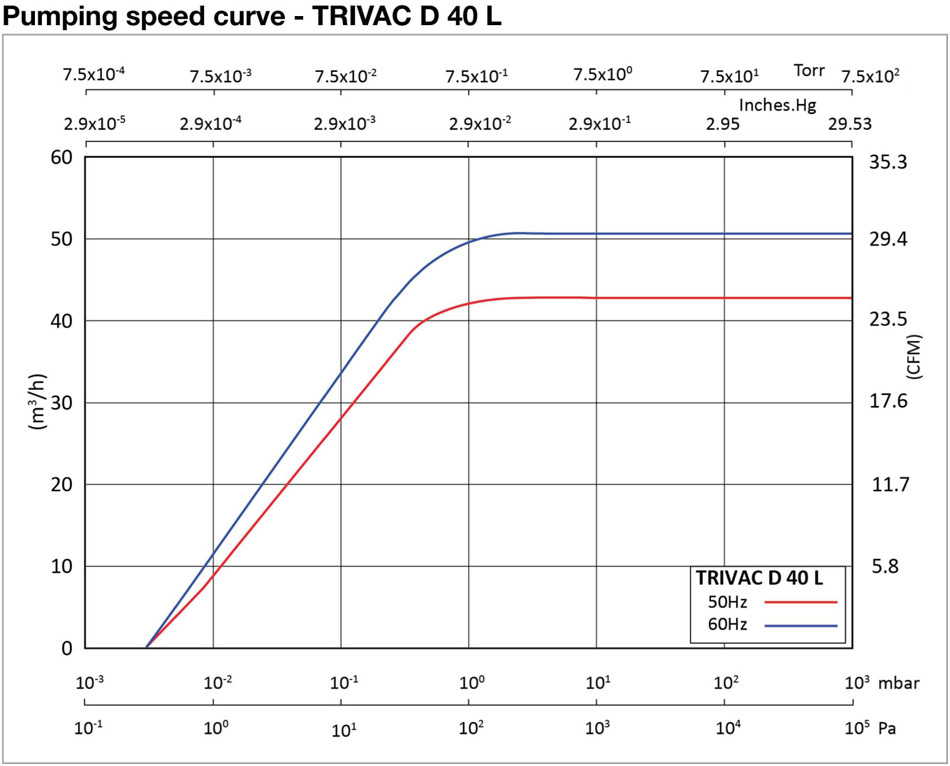

Leybold Trivac T D40L Dual Stage Rotary Vane Pump Pumping Speed Graph
PDF Logo RoHS Compliance Download

PDF Logo Leybold Trivac L Series Dual Stage Vacuum Pumps D40L, D63L, D90L Operating Instructions.pdf
