Leybold TURBO.POWER Integra Power Supply for smaller TURBOVAC Turbo Pumps. PN: 800100V0003

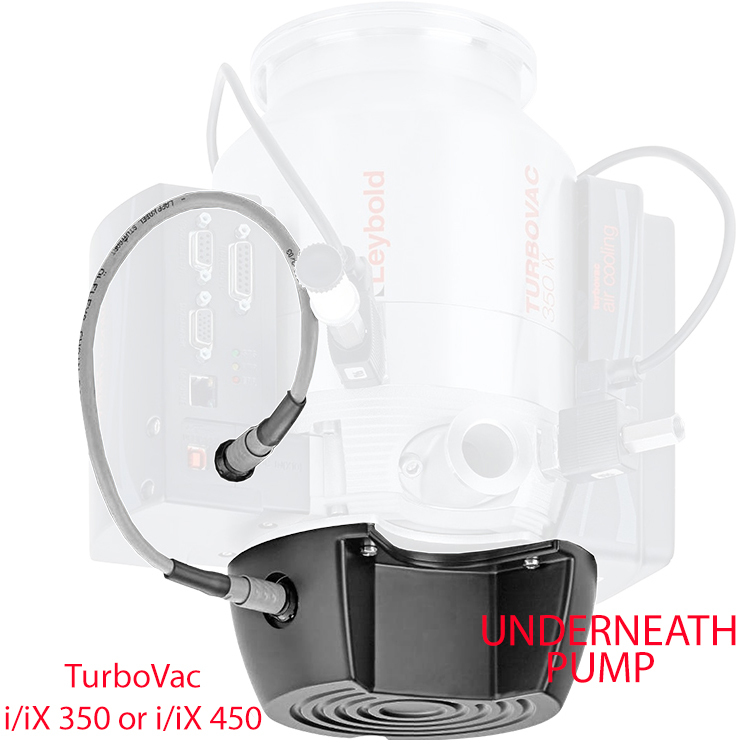

The Leybold TURBO.POWER Integra is a 288-Watt power supply providing 24 VDC output at 10 Amps and is designed to power the TURBOVAC i-series pump models: 90i, 250i, 350i, and 450i. It supplies 24 VDC clean fused power from a 110-240 VAC input source (power cable part number P108678 is also required). Hardware is included to mount the TURBO.POWER integra below the turbo pump along with a short 0.3-meter cable to connect the undermounted power supply to the pump. The TURBO.POWER Integra power supply has Leybold part number 800100V0003.

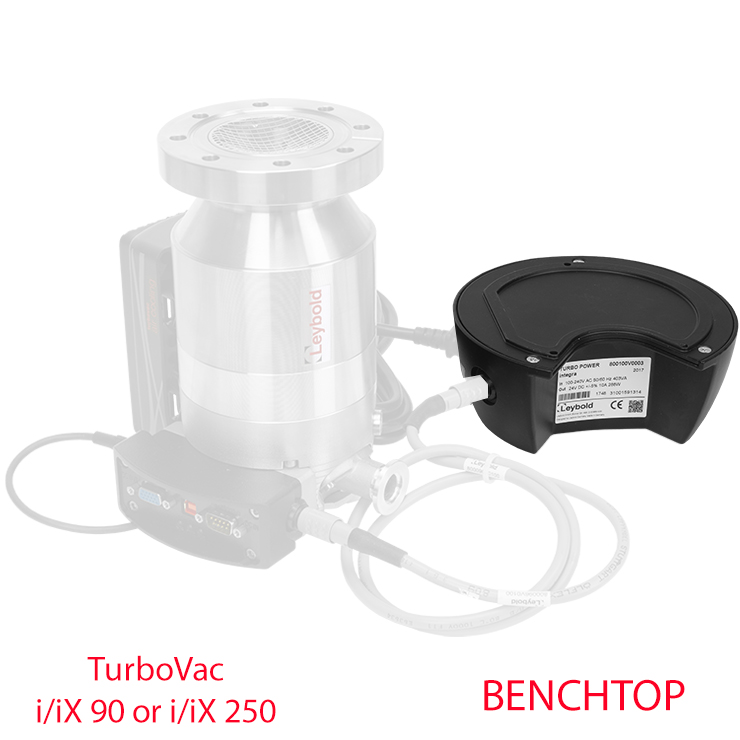

To mount the TURBO.POWER Integra below the smaller sized 90i or 250i TURBOVAC pumps, an adaptor mounting kit is required (part number P1012440). It could alternatively be used as a remote benchtop power supply. When using the power supply away from the pump, a longer interconnecting power cable is needed. A 1-meter cable (part number P109190) and 3-meter cable (part number P108858) are available.

There are two types of air-cooling kits available for these TURBOVAC i-series pumps; the axial air-cooling kit is designed to mount to the bottom of the turbo pump and provide forced-air flow colinear to the pump’s shaft, while the radial air-cooling kit provides air flow perpendicular to the pump. The radial air-cooling kit should be purchased when plans are to mount the TURBO.POWER integra below the turbo pump.

The Leybold TURBO.POWER Integra power supply is compatible with these pumps:

• TURBOVAC 90i
• TURBOVAC 250i
• TURBOVAC 350i
• TURBOVAC 450i
