Condition:
  New
Part Number:
  P109298
Warranty:
  Leybold Warranty

Available Now:
1  



$41,204.35


Regular Price: $43,373.00

On Sale Flyer
Print Version

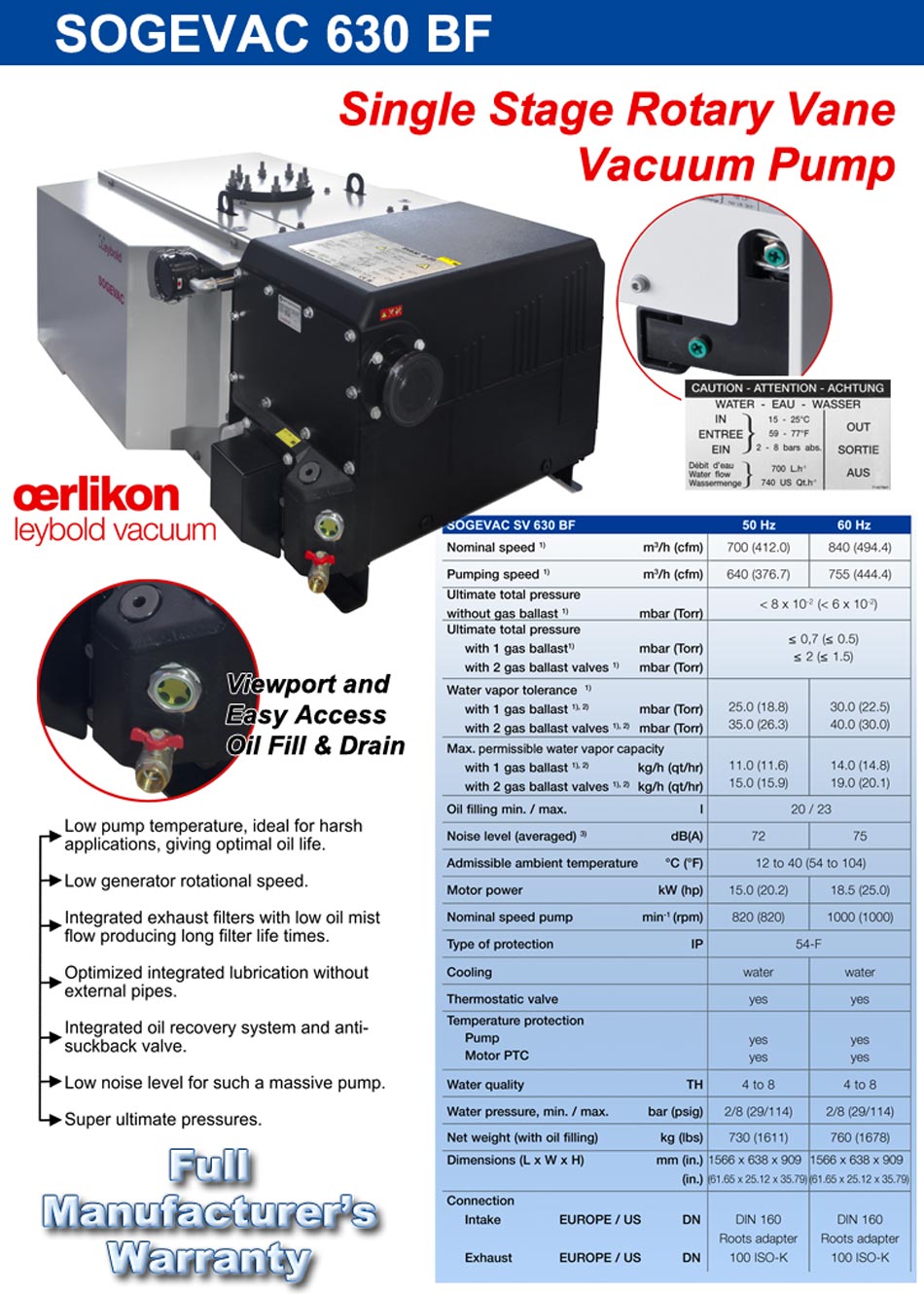

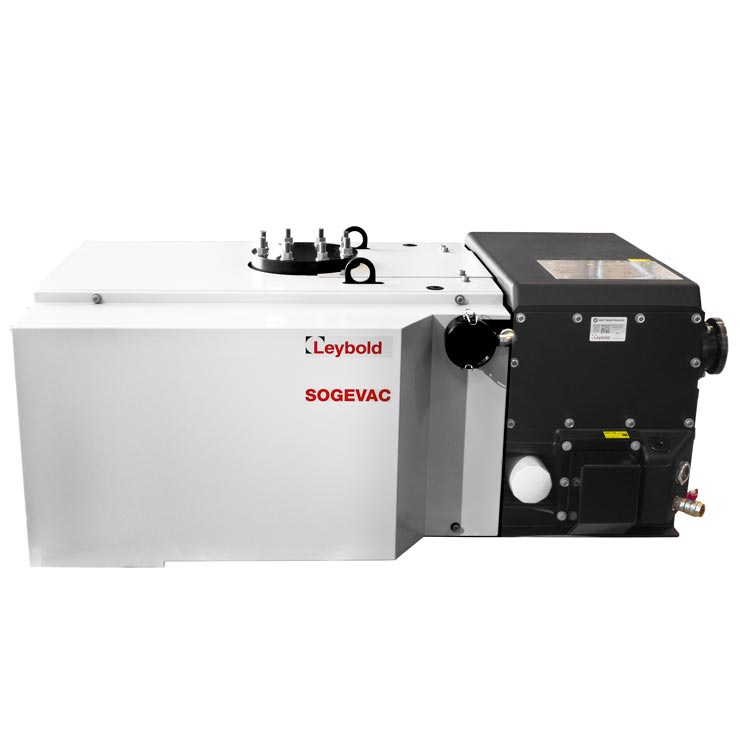

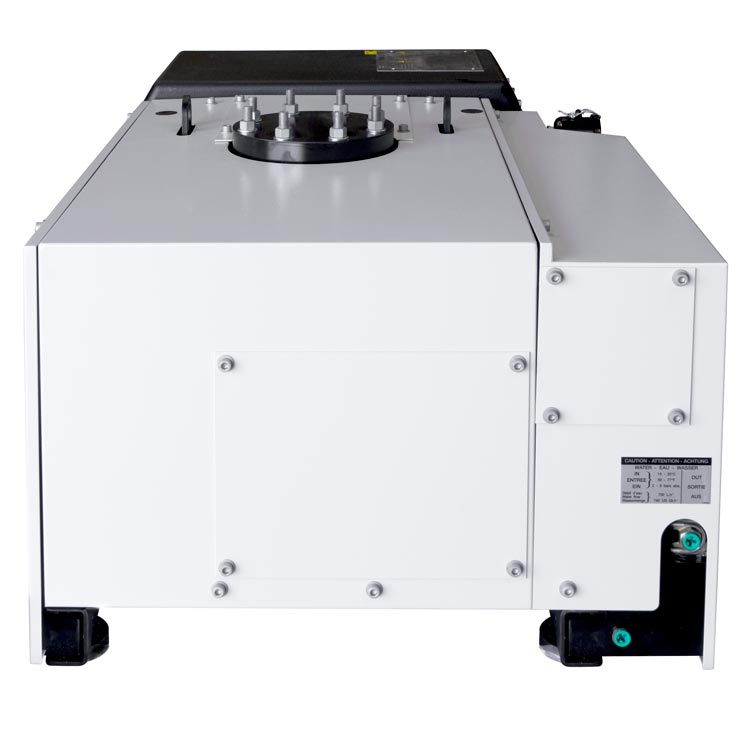

Leybold Sogevac SV630BF Single Stage Rotary Vane Vacuum Pump, Water Cooled, 3-Phase 208-230/460 VAC 60Hz, PN 960869


Leybold Sogevac SV 630B (F) Single Stage Rotary Vane Vacuum Pump, Water Cooled, NEMA Motor, with Gas Ballast, 3-ph. motor, 208-230/460 V, 60 Hz or 400 V, 50 Hz (NEMA)

This version of the Leybold Sogevac SV630B single stage oil sealed vacuum pump, termed the SV630BF is water cooled and is designed for continuous operation over the working pressure range from atmosphere to less than 1 Torr. The Leybold Sogevac SV630BF consists of the pump body oil casing and drive cooling system. It has built in exhaust filters, gas ballast valve, and an automatic oil return system. The Leybold Sogevac SV630BF is low noise, compact, low vibration, and easy to operate; being easy to maintain, service and repair.

These Leybold Sogevac SV630BF vacuum pumps are used in a variety of industries such as packaging in the food preparation industry, degassing, thermal forming of plastics, vacuum drying, impregnation, vacuum stirring, and mixing. Pumping Speed 444 CFM. Maintenance service, repair, oils and accessories for these Leybold Sogevac SV630BF vacuum pumps are available on this website. This is a New Pump with factory warranty. We also service, repair and rebuild this Sogevac vacuum pump and perform maintenance repair on other Leybold Sogevac models as well. The complete operating instructions manual in PDF format is available for download below.

Leybold SV630BF, water cooled, 444 CFM pumping speed, 3-Phase 208-230/460 V, 60 Hz, with gas ballast, with oil filter and filled with oil. Item Number 960869.



Press ESC to Close


PDF Logo Leybold Sogevac SV630B-SV750B Operating Instructions.pdf
