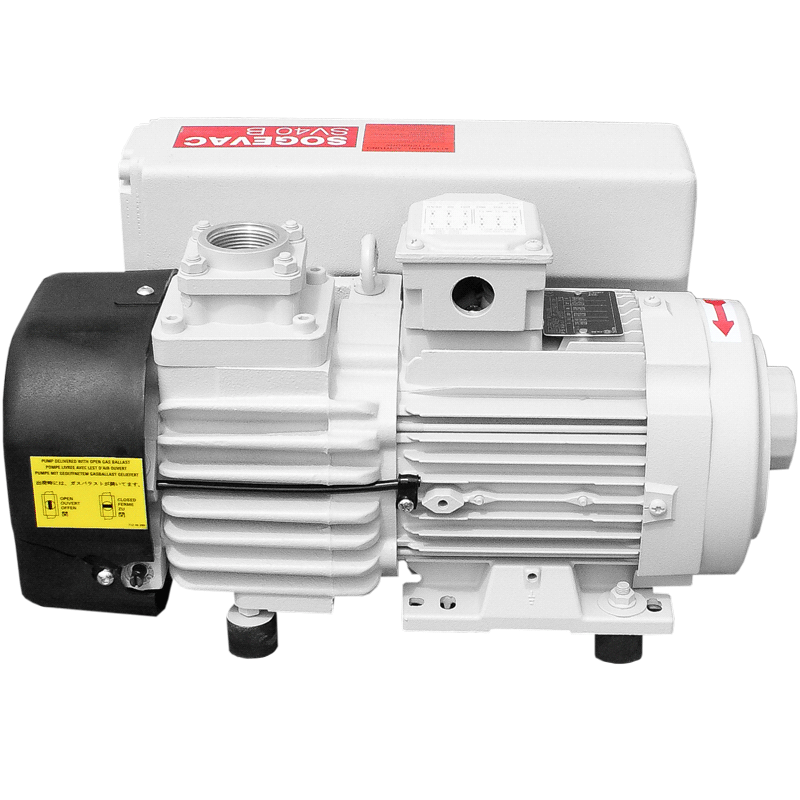

Leybold Sogevac SV40B SV 40B Single Stage Rotary Vane Vacuum Pump, 230/460 V, 60 Hz and 400 V, 50 Hz,
NPT flanges (UL/CSA motor). Leybold Item Number 960314

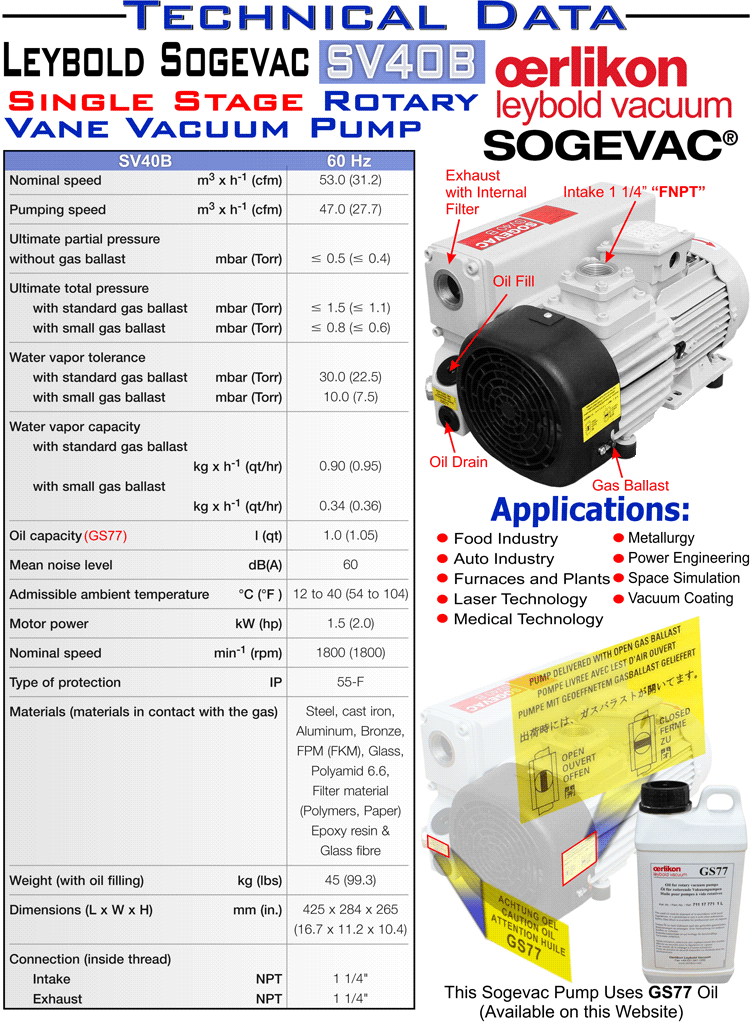

The NEW Leybold Sogevac SV40B SV 40B single stage oil sealed vacuum pump is designed for continuous operation over the working pressure range from atmosphere to less than 1 Torr. The Leybold Sogevac SV40B SV 40B consists of the pump body oil casing and drive cooling system. The Leybold Sogevac SV40B SV 40B has built in exhaust filters, gas ballast valve, and an automatic oil return system. The NEW Leybold Sogevac SV40B SV 40B is low noise, compact, low vibration, and easy to operate. This Leybold Sogevac SV40B SV 40B is also easy to maintain, service and repair. These Leybold Sogevac SV40B SV 40B vacuum pumps are used in a variety of industries such as packaging in the food preparation industry, degassing, thermal forming of plastics, vacuum drying, impregnation, leak testing, vacuum stirring and mixing. Pumping Speed 31.2 CFM. Maintenance service, repair, oils and accessories for these Leybold Sogevac SV40B SV 40B vacuum pumps are available on this website. This is a New Pump with factory warranty. We also service, repair and rebuild this Sogevac vacuum pump and perform maintenance repair on other Leybold Sogevac models as well. For more specifications see below. For Operation Instructions Download PDF below from "AVAILABLE DOWNLOADS"
