Condition:
  New
Part Number:
  P103393
Warranty:
  Leybold Warranty

Available Now:
2  



$16,370.40


Regular Price: $17,232.00

On Sale Flyer
Print Version

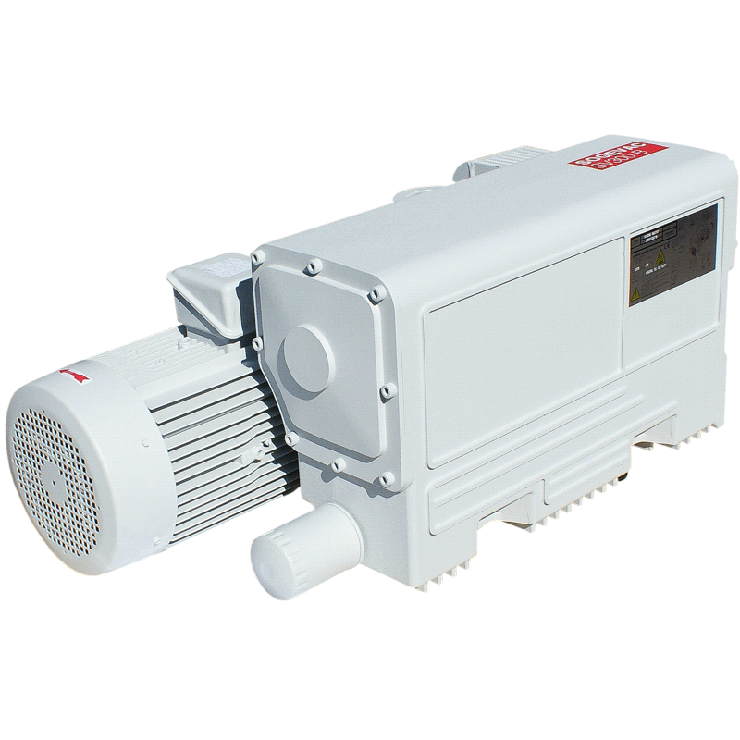

Leybold Sogevac SV300B Single Stage Rotary Vane Vacuum Pump, 3-Phase 208-230/460 VAC, with Gas Ballast. PN: 960707


Leybold Sogevac SV300B Single Stage Rotary Vane Vacuum Pump with Gas Ballast, 3-Phase 208-230/460 VAC. Leybold Part Number: 960707

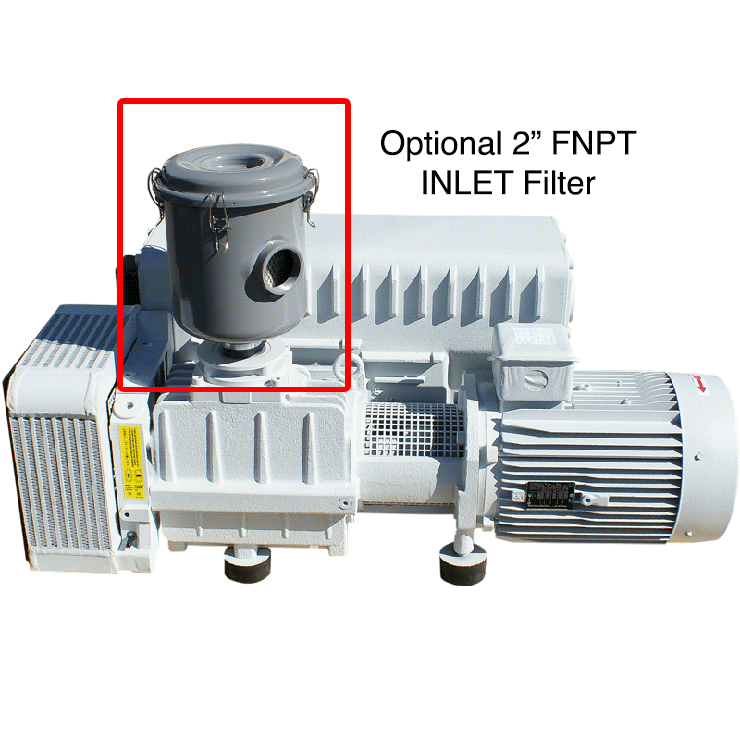

The Leybold Sogevac SV300B, SV 300B, single stage oil sealed vacuum pump is designed for continuous operation over the working pressure range from atmosphere to 1.13 Torr (1.5 mbar). The Leybold Sogevac SV300B SV 300B consists of the pump body oil casing and drive cooling system. The Leybold Sogevac SV300B SV 300B has built in exhaust filters, gas ballast valve, and an automatic oil return system. The Leybold Sogevac SV300B, SV 300B, is low noise, compact, low vibration, and easy to operate. This Leybold Sogevac SV300B SV 300B is also easy to maintain, service and repair. These Leybold Sogevac SV300B SV 300B vacuum pumps are used in a variety of industries such as packaging in the food preparation industry, degassing, thermal forming of plastics, vacuum drying, impregnation, leak testing, vacuum stirring and mixing. Pumping Speed 200 CFM. Maintenance service, repair, oils and accessories for these Leybold Sogevac SV300B SV 300B vacuum pumps are available on this website. This is a New Pump with factory warranty. We also service, repair and rebuild this Sogevac vacuum pump and perform maintenance repair on other Leybold Sogevac models as well. For Accessories for this pump see OPTIONAL ACCESSORIES below. For Operating Instructions see (AVAILABLE DOWNLOADS) PDF below.



Press ESC to Close


PDF Logo Oerlikon Leybold Sogevac SV300B Rotary Vane Pump Operating Instructions.pdf
