Condition:
  New
Part Number:
  P102337
Warranty:
  Leybold Warranty

Available Now:
3  



$2,047.23


Regular Price: $2,154.98

On Sale Flyer
Print Version

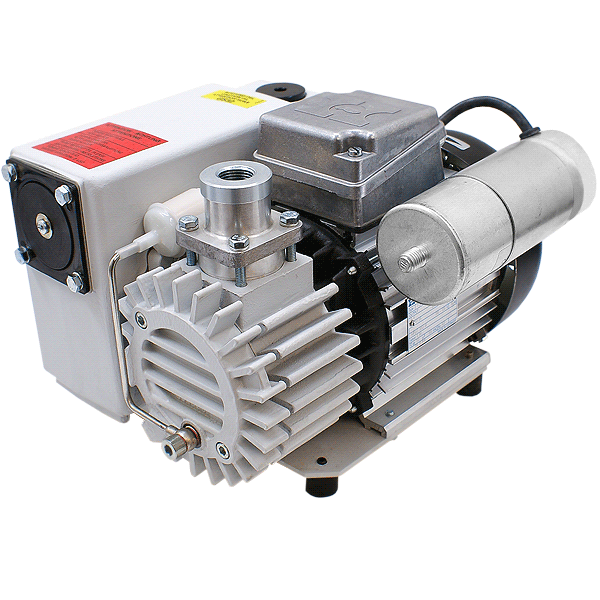

Leybold Sogevac SV10B, 115 V, 60 Hz, 1-Ph, Single Stage Rotary Vane Vacuum Pump. PN: 960110


Leybold Sogevac SV10B, SV 10B, 115 V, 60 Hz, 1-Phase, Single Stage Rotary Vane Vacuum Pump. Leybold Part Number: 960110


The NEW Leybold Sogevac SV10B SV 10B single stage oil sealed vacuum pump is designed for continuous operation over the working pressure range from atmosphere to less than 1 Torr. The Leybold Sogevac SV10B SV 10B consists of the pump body oil casing and drive cooling system. The Leybold Sogevac SV10B SV 10B has built in exhaust filters, gas ballast valve, and an automatic oil return system. The Leybold Sogevac SV10B SV 10B is low noise, compact, low vibration, and easy to operate. This Leybold Sogevac SV10B SV 10B is also easy to maintain, service and repair. These New Leybold Sogevac SV10B SV 10B vacuum pumps are used in a variety of industries such as packaging in the food preparation industry, degassing, thermal forming of plastics, vacuum drying, impregnation, leak testing, vacuum stirring and mixing. Pumping Speed 7.7 CFM.

NOTE: The intake for this pump comes with a screw on reduction flange size 1/2 inch "G" BSPT Female commonly used in Europe and Great Britain. With the reduction flange removed the size becomes 3/4 inch "G" BSPT Female. An NW/KF 16 to 1/2 inch "G" BSPT adapter fitting is available on this website, Part Number P........(see middle picture above.) Maintenance service, repair, oils and accessories for these Leybold Sogevac SV10B SV 10B vacuum pumps are available on this website. This is a New Pump with factory warranty. We also service, repair and rebuild this Sogevac vacuum pump and perform maintenance repair on other Leybold Sogevac models as well. For complete specifications, application and Instruction Manual - See (AVAILABLE DOWNLOADS) below for PDF.



Press ESC to Close


PDF Logo Oerlikon Leybold Sogevac SV10B, SV16B Single-Stage Rotary Vane Pumps Operating Instructions.pdf
