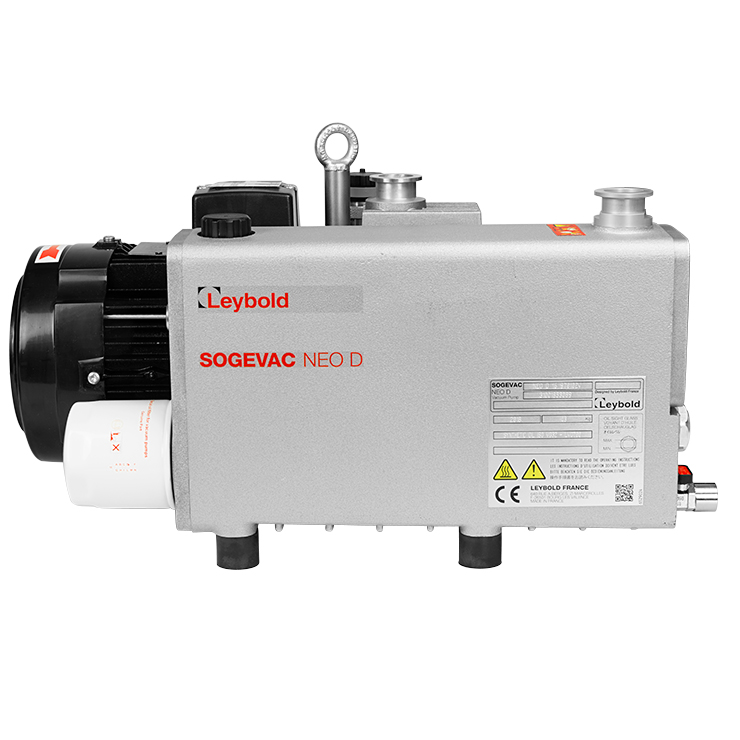

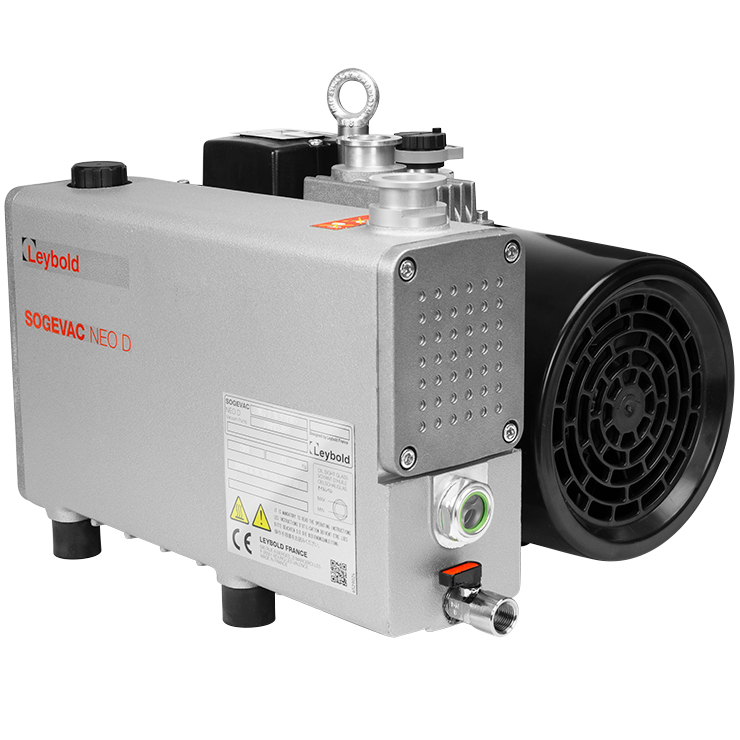

Leybold Sogevac Neo D 16 Dual Stage Rotary Vane Vacuum Pump, 1 Phase 115VAC, 970103V


Leybold Sogevac Neo D 16 Dual Stage Rotary Vane Vacuum Pump
1 phase with Overload Protection, DN 25 ISO-KF, Leybold Part Number: 970103V


The new Leybold Sogevac Neo D series, dual stage oil sealed rotary vane vacuum pumps are designed with performance, efficiency and convenience in mind. Leybold’s cutting edge shaft seal technology allows the Sogevac Neo D series to operate maintenance-free for up to 3 years in clean applications. Built-in filtration with a top of the line exhaust filter inside the oil casing provides clean pump down and greatly reduces oil-loss and oil smoke. The Sogevac Neo D series is perfect in a variety of industries such as packaging in the food preparation industry, degassing, thermal forming of plastics, vacuum drying, impregnation, leak testing, vacuum stirring and mixing, heat treatment & plasma processes, R&D and sterilization.

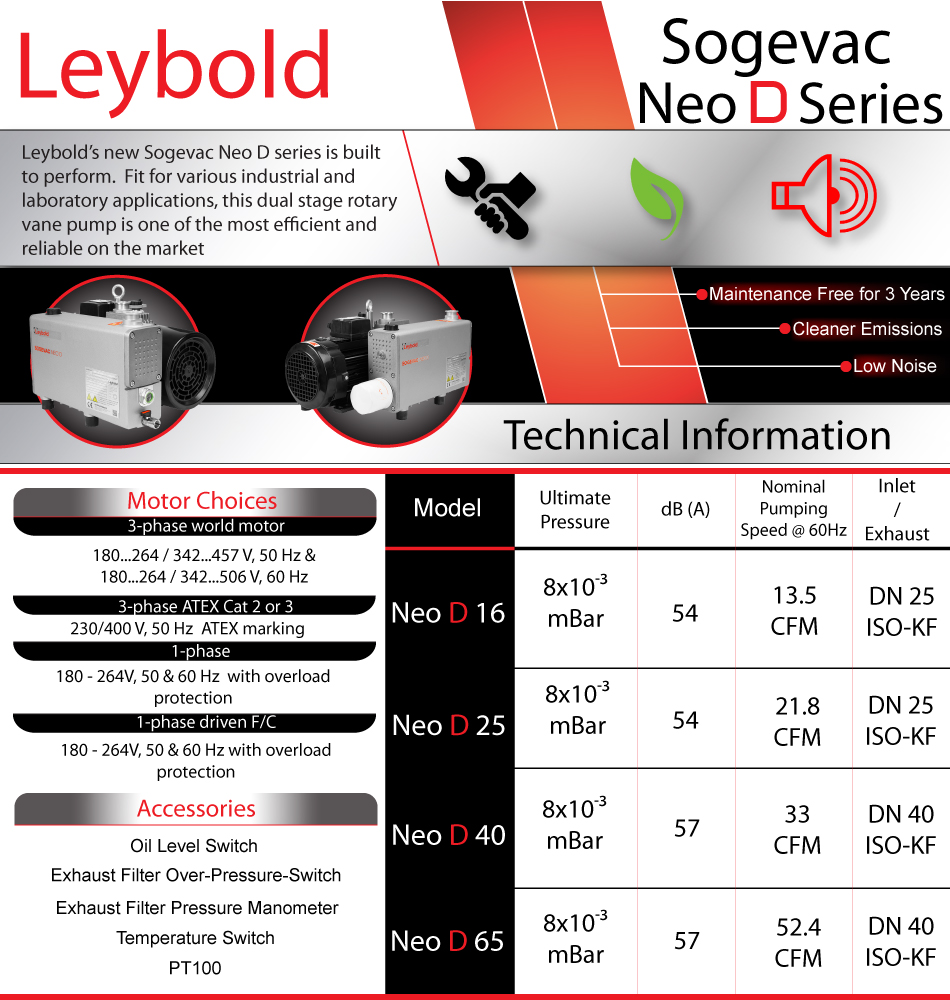

This Sogevac Neo D 16 comes equipped with a 1 phase 115VAC motor that has overload protection. This model is flanged for DN 25 ISO-KF and can achieve an ultimate pressure of 8x10-3Mbar. This Sogevac Neo D 16 can pump up to 13.5 CFM and at max speed is quiet at 54 dB(A). Accessories for the Leybold Sogevac Neo D series are sold separately and include:

  • LVO 700 Oil Ideal Vacuum Part Number P1010326
  • Oil Level Switch (Leybold Part Number: 9700LS)
  • Exhaust Filter Over-Pressure Switch (Leybold Part Number: 971471210)
  • Exhaust Filter Pressure Manometer (Leybold Part Number: 95193)
  • Temperature Switch (Leybold Part Number: 9700TS)
  • PT100 (Leybold Part Number: 971444320) ----Only available for Neo D 40 & 65


Press ESC to Close


PDF Logo Leybold Sogevac Neo D 16, 25 Rotary Vane Vacuum Pumps Brochure.pdf

PDF Logo Leybold Sogevac Neo D 16, 25, 40, 65 Rotary Vane Vacuum Pumps Original Instruction Manual.pdf
