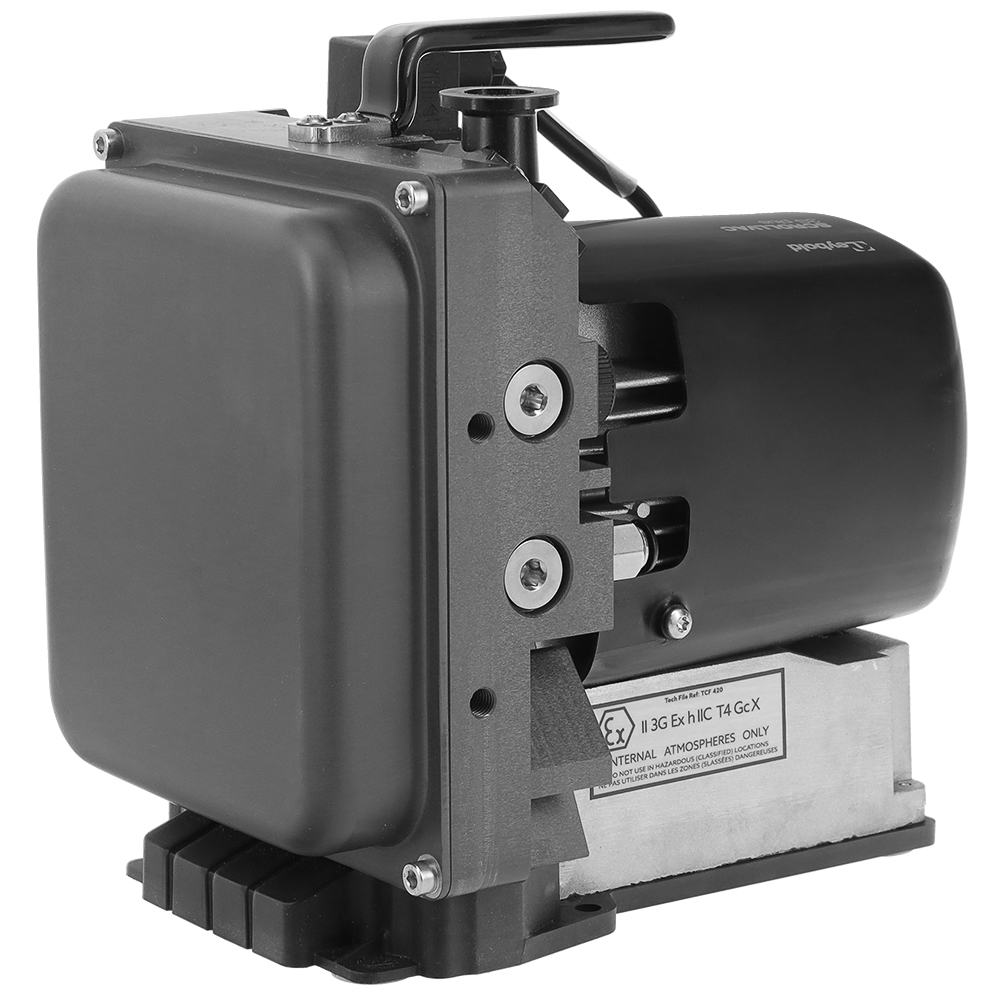

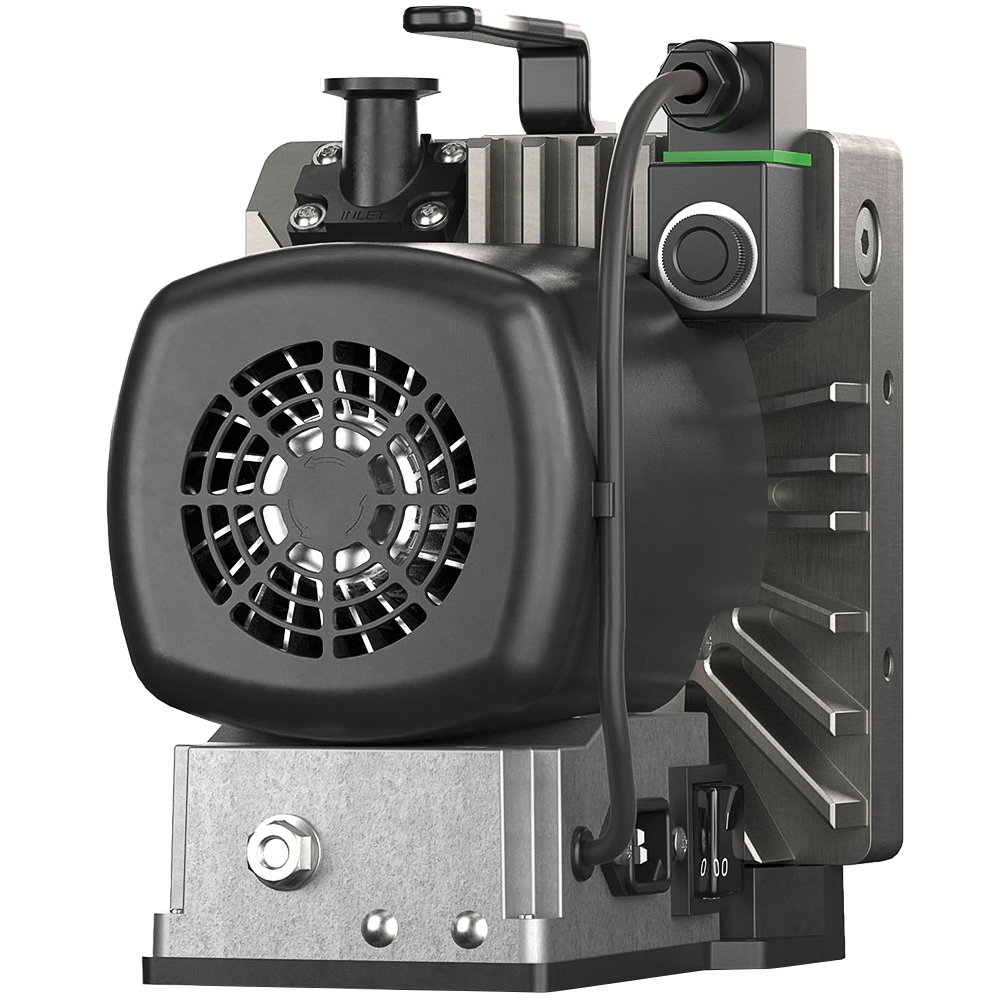

Leybold Scrollvac 3S Plus Compact Dry Scroll Vacuum Pump with Gas Ballast, Preconfigured with Inlet Valve & Exhaust Silencer Included, 1-Phase 200 VAC, 2 CFM Pumping Speed. PN: 142030V420

This Leybold Scrollvac 3S Plus dry scroll pump weights is capable of achieving peak pumping speeds of up to 2 CFM (3.5 m3/h) at 60 Hz and a typical ultimate pressure of 0.0750 Torr (0.1 mbar) with closed gas ballast. As such, the Scrollvac 3S Plus is a very capable alternative to diaphragm pumps. This is the Scrollvac 3S Plus preconfigured version which comes factory fitted with an inlet valve, featuring delayed opening, and supplied with an exhaust silencer.

The Leybold Scrollvac 3S Plus offers all the benefits of advanced scroll pump technology in a clean, dry, compact and powerful pumping performance. Because there is no oil to worry about, the Scrollvac 3S Plus promises less hassle, less risk, less maintenance, less total cost of ownership, and less environmental impact compared with oil-sealed rotary vane pumps.

The very small footprint and light weight of 17.2 lbs. (7.8 kg) the Scrollvac 3S Plus make it easy to integrate in any system. It is supplied as standard with DN 16 ISO-KF inlet and push-fit exhaust connections along with a mains-driven motor, IEC connection, and on-off switch for easy operation.

APPLICATIONS General clean pumping applications Scanning Electron Microscopes - SEM Beam lines and high energy physics Mass Spectrometry Electron Microscopy Sample Preparation Research and Development High Energy Physics Industrial Semiconductor Backing turbo pumps Centrifuges, ultra-high speed Coating Cryogenics Degassing/curing - oil, epoxy resin Distillation/extraction/filtration Laboratory bench top vacuum Lasers, gas recovery and recirculation Research and development Surface science instruments
