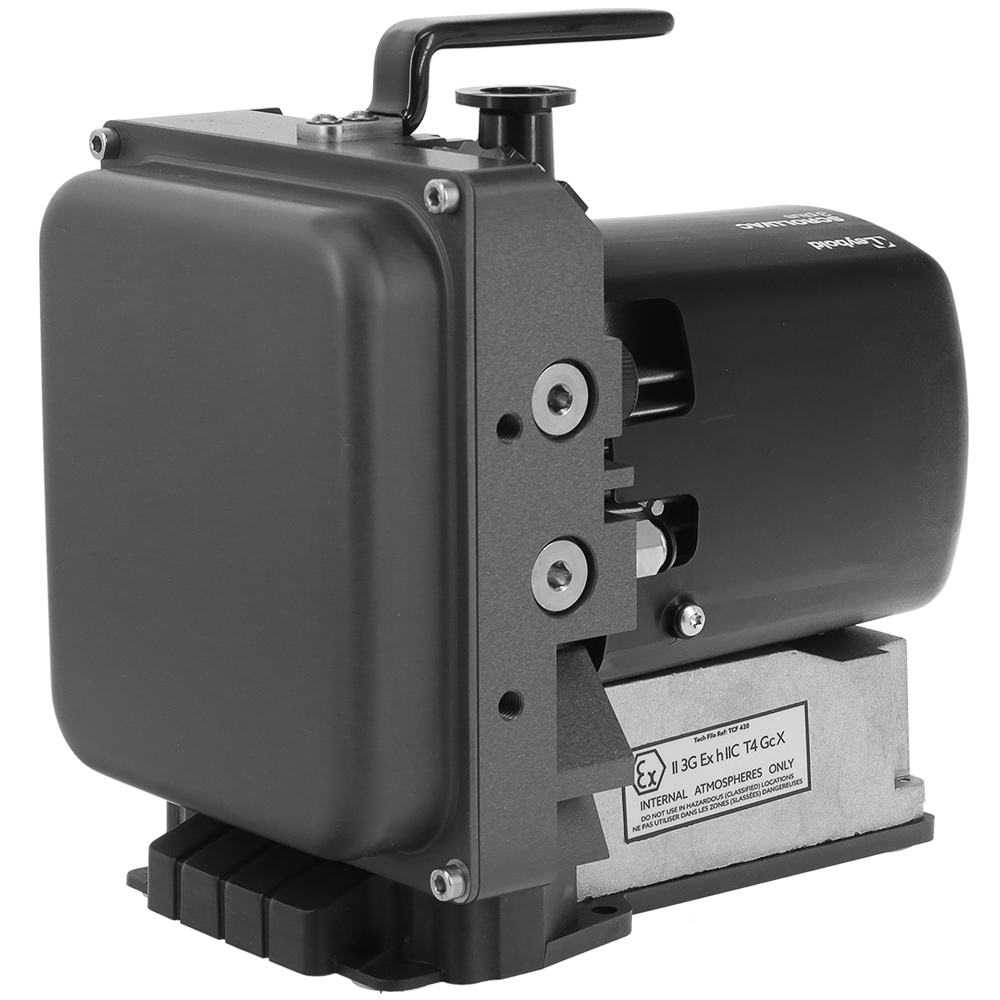

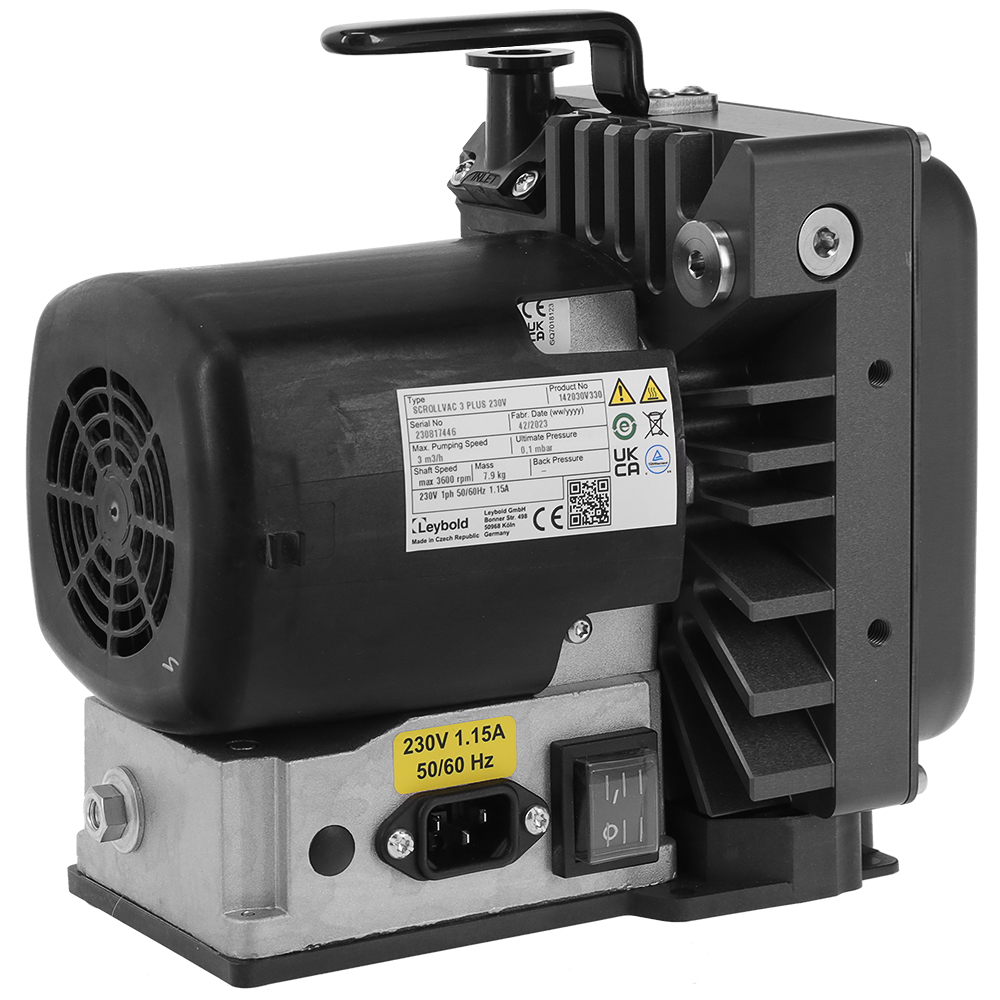

Leybold Scrollvac 3 Plus Compact Dry Scroll Vacuum Pump with Gas Ballast, 1-Phase 230 VAC, 2 CFM Pumping Speed.
Leybold Part Number: 142030V330.
This new Leybold Scrollvac 3 plus dry scroll pump is capable of achieving peak pumping speeds of up to 2 CFM (3.5 m3/h) at 60 Hz and a typical ultimate pressure of 0.0750 Torr (0.1 mbar). As such, the SCROLLVAC 3 plus is a very capable alternative to diaphragm pumps.
The Leybold Scrollvac 3 plus offers all the benefits of advanced scroll pump technology in a clean, dry, compact and powerful pumping performance. Because there is no oil to worry about, the Scrollvac 3 plus promises less hassle, less risk, less maintenance, less total cost of ownership, and less environmental impact compared with oil-sealed rotary vane pumps.
The very small footprint and light weight of 17.2 lbs. (7.8 kg) the Scrollvac 3 plus make it easy to integrate in any system. It is supplied as standard with DN 16 ISO-KF inlet and push-fit exhaust connections along with a mains-driven motor, IEC connection, and on-off switch for easy operation.
APPLICATIONS |
- General clean pumping applications
- Scanning Electron Microscopes - SEM
- Beam lines and high energy physics
- Mass Spectrometry
- Electron Microscopy
- Sample Preparation
- Research and Development
- High Energy Physics
- Industrial
- Semiconductor
|
- Backing turbo pumps
- Centrifuges, ultra-high speed
- Coating
- Cryogenics
- Degassing/curing - oil, epoxy resin
- Distillation/extraction/filtration
- Laboratory bench top vacuum
- Lasers, gas recovery and recirculation
- Research and development
- Surface science instruments
|
|
