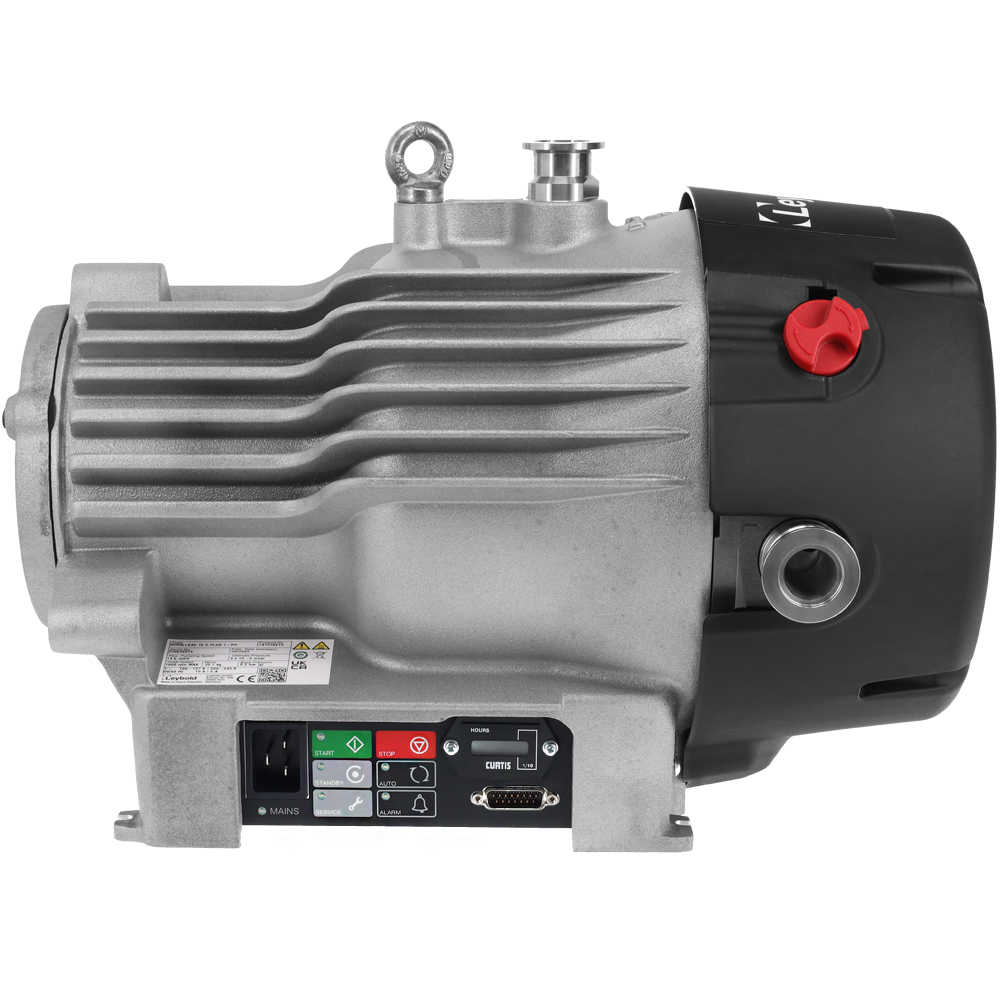

Leybold Scrollvac-15 C Plus Oil Free Dry Scroll Vacuum Pump with Gas Ballast, Chemical Resistant, 100-240 VAC. PN: 141015V12
Leybold ScrollVac 15 C Plus Oil-Free Dry Scroll Vacuum Pump 1 phase with Gas Ballast, C version with GB for Aggressive Applications, 100-127 VAC, 200-240 VAC, 50/60 Hz.
Leybold Part Number: 141015V12.
Ideal Vacuum Products is now selling the new Leybold ScrollVac 15 Plus series pumps!
This new Leybold ScrollVac15 Plus range from Leybold has exceptional pumping capability, ultimate vacuum performance and state-of-the-art design features. The Leybold ScrollVac 15 Plus is the best performing pump in its class. The Leybold ScrollVac 15 Plus is up to 20 times quieter than other pumps. Its intelligent control functions and up to five year service interval offer low cost of ownership, making it the small dry pump of choice for today’s most advanced technologies. NOW with a universal voltage power supply (100-127VAC - 200-240VAC) for performance anywhere in the world. This is the 1 phase motor ScrollVac 15 Plus version with 8.5 CFM.
The Leybold ScrollVac 15 Plus pumps are truly dry vacuum pumps as all the bearings, with their hydrocarbon lubricant, are isolated from the vacuum space. The Leybold ScrollVac 15 Plus is the next generation in completely oil free, dry scroll pumps. No shaft seal to wear allowing much longer intervals between servicing. It offers increased pumping speeds, combined with lower ultimate pressures, lower power consumption and lower noise. Gas ballast allows for pumping of condensable vapours including, water, solvents, dilute acids and bases. ScrollVac 15 Plus pumps also feature the latest in tip seal technology giving significantly longer life between tip seal changes. Integrated inverter drive with auto sensing voltage input delivers optimized pumping performance globally. ScrollVac 15 Plus pumps are designed to be completely field serviceable.
Press ESC to Close
APPLICATIONS
General clean pumping applications
Scanning Electron Microscopes - SEM
Beam lines and high energy physics
Mass Spectrometry
Electron Microscopy
Sample Preparation
Research and Development
High Energy Physics
Industrial
Semiconductor
Backing turbo pumps
Centrifuges, ultra-high speed
Coating
Cryogenics
Degassing/curing - oil, epoxy resin
Distillation/extraction/filtration
Laboratory bench top vacuum
Lasers, gas recovery and recirculation
Research and development
Surface science instruments
Now with an integral pump controller managing the supply of current to a three-phase electric motor in accordance with
operating conditions. The controller monitors power and temperature, and will protect the pump in the event of
operation under sustained high load or under fault conditions.
The controller provides the user interface. The pump may be operated in Manual mode, using the buttons on the interface panel, with a unique feature to control the speed of the pump in Standby Mode to 70% of full speed or with other buttons to increase or decrease pump speed to save wear and tear on tip seals and bearing service life; or a Remote Mode, via serial communications; or a digital and analogue process control (parallel) mode, via the 15-way D-type logic interface connector.
To pump high vapor loads, gas ballast can be delivered into the pump to prevent condensation of the vapor carried by the pumped gases.
The logic interface has been designed to support both serial control, parallel control and monitoring, operating through one connector. For serial control either RS232 or RS485 can be selected.
Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be
downloaded here:
