Condition:
  New
Part Number:
  P105155
Warranty:
  Leybold Warranty

Available Now:
1  



$13,340.00


Regular Price: $16,675.00

On Sale Flyer
Print Version

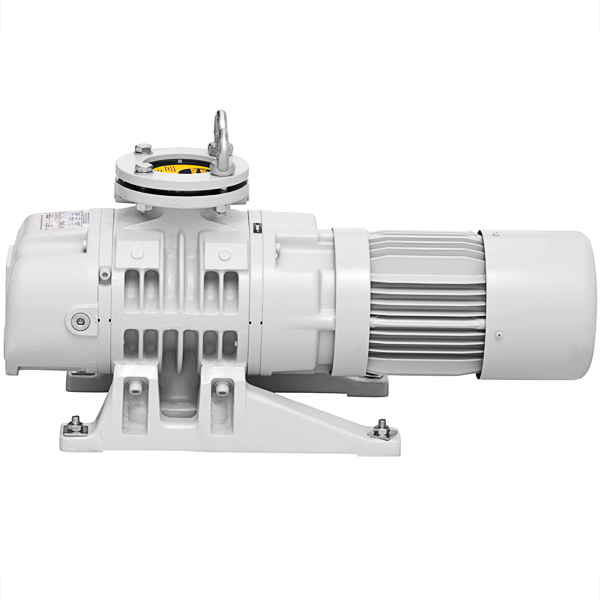

Leybold RuVac WSU-251 Roots Blower Booster Vacuum Pump, PFPE LVO-400, 3-Phase, 208-230/460 VAC. PN 11728


Leybold WSU-251 PFPE Chemical Series Roots Blower Vacuum Pump, 3-Phase, 208-230/460 VAC 60 Hz NEMA Motor.
Requires LVO 400 PFPE Oil. Leybold Part No. 11728


The Leybold WSU 251 WSU-251 PFPE chemical series Roots blower vacuum pumps are driven by air cooled motors. They have no shaft feedthrough to the atmosphere, thus the Leybold WSU 251 WSU-251 is particularly leak-tight. In the canned motor, rotor and stator pack are separated by a vacuum-tight can made of a nonmagnetic material. The rotor operates on the drive shaft of the pump in the vacuum, so that a shaft seal which would be subject to wear is not required. The WSU pumps are easy to operate! They include a pressure differential valve that allows them to be started at the same time as the roughing pump. In the event of an excessively high pressure difference between the flanges, the valve will open. Then a part of the pumped gas will flow through this line back to the intake flange. Therefore the pump may be switched on together with the backing pump at atmospheric pressure. This increases the pumping speed of the pump combination also at high intake pressures. These Leybold WSU 251 WSU-251 are chemical series pumps being prepare from the factory with PFPE chemical resistant LVO-400 oil. These blowers are stock items and typically can ship instantly from our warehouse and have Leybold part number 11728.

The price for the pump listed is for a Leybold WSU 251 WSU-251 blower booster PFPE oil prepared vacuum pump only, backing pumps are extra. We also sell mechanical and blower vacuum pump systems. Please call (505) 872-0037 for more information.


Nominal Pumping Speed
304 m3h-1, 179 ft3min-1 (CFM)

Maximum Pumping Speed with Backing Pump - Example
Leybold D65BCS: 251.0 m3h-1, 148 ft3min-1 (CFM)

Ultimate Total Pressure
<8 X 10-4 mbar, <6 X 10-4 Torr

Rotational speed
60 Hz supply (3600 rpm)

Max. permissible pressure difference during continuous operation
0 - 80 mBar, 0 – 60 Torr

Connection Flange
DN 63 ISO-K

Electrical supply voltage
3-phase, 60 Hz, 208 - 230 VAC / 460 VAC
