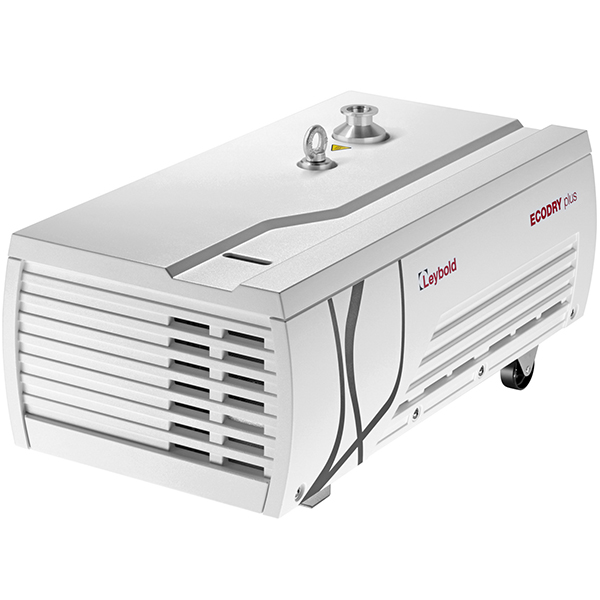

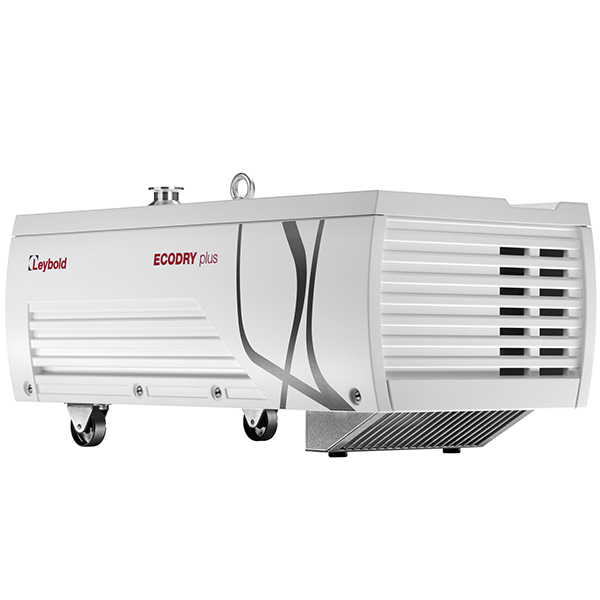

Leybold ECODRY 40 Plus Multi Stage Roots Vacuum Pump, 200-240V, 1-Phase, 24 cfm, PN 161040V22


Leybold ECODRY 40 Plus Multi Stage Roots Vacuum Pump, 200-240VAC, 1-Phase, 24 cfm.
Leybold PN 161040V22

Facilities around the world can now become quieter, thanks to the new ECODRY Pump Plus. Now offered in 2 sizes the ECODRY 40 and 65 plus. It does the job reliably, without drawing attention to itself. Its 52 dB(A) sound is the quietest in its class and half as loud as other pumps. In terms of noise reduction, the ECODRY plus represents the highest quality of German engineering expertise. Non-contacing rotors with low vibration, a low power drive unit, a low noise fan for efficient cooling, and a cutting-edge silencer add up to an acoustic milestone. Quieter than a conversation or an air conditioner. Compact size and a dry pumping technology. Requiring no maintenance by users, the ECODRY plus frees up many resources.

Low operating costs and plenty of performance, with pumping speeds (24 cfm) optimized for analytical applications. Less power consumption means energy efficiency and lower air conditioning costs. Fewer limitations with low EMC emissions and low leakage current. The ECODRY plus can be powered by regular 200-240 VAC 1 phase wall sockets. The ECODRY creates a smoother workflow. With an integrated frequency converter ensuring reliable pumping performance over a broad frequency and voltage range. With rolling wheels the pump can be moved as needed. All connections are located on one side, allowing for simple installation.

Uses:

Mass Spectrometers in analytical instruments. The vacuum pump is an important unit that is expected to provide reliable vacuum without drawing attention to itself. With the ECODRY plus acoustics, enclosures for noise reduction are no longer needed. The ECODRY emits half the noise of other pumps in its class. With flexible interfaces the pump can be controlled remotely by the instrument control system.

Electron Microscopes need dependable vacuum pumps for backing multiple turbomolecular pumps. To achieve highest resolution images, the pump must not transfer any noise or vibration to the instrument. Not only is it quiet it also creates minimal vibration due to its smooth rotation mechanism. This reduced noise and vibrations benefits resolution and the lab's workers noise stress. Blurred images are a thing of the past.

Cryo-Pump Regeneration sometimes requires a vacuum pump to handle high amounts of water vapor and solvents and transport it out of the vacuum chamber. The ECODRY plus boasts high water vapor tolerances and is built for utmost reliability.

Ultra-High Vacuum (UHV) Applications require reliable pumps for the backing of turbomolecular pumps. To avoid disturbing measurements the noise must be kept to a minimum and contaminants prevented. The ECODRY plus is maintenance free for users to scientist and engineers to concentrate on their experiments without needing to service the pump.

Large Scale Accelerators have large volume chambers to be evacuated. Contamination or dust particles must be avoided at all costs. The Clean ECODRY fulfills the requirements for cleanliness and provides enough pumping speed to evacuate the chambers of considerable volume. With the high water vapor capacity tolerances it continues to operate reliably even in the case of heavy desorption from chamber walls.

Benefits and Features:
  • Air-Cooled
  • Small, Compact Size
  • Non-Contact Design
  • Constant Ultimate Pressure
  • No Production of Tip Seal Dust
  • High Atmospheric Pumping Speeds
  • CE and NRTL rated
  • Low Vibration
  • Very Low Noise
  • Maintenance Free
  • Highest Water Vapor Pumping
APPLICATIONS:
  • Load Lock
  • Analytical Instruments (LCMS Liquid Chromatography–Mass Spectrometry, GCMS Gas Chromatography Mass Spectrometry)
  • Metrology - SEM (Scanning Electron Microscopes), TEM (Transmission Electron Microscopy)
  • PVD (Physical Vapor Deposition) Sputter Systems
  • Drying Vacuum Ovens
  • Oxygen Plasma Systems
  • Wet Pump Replacement
  • Scroll Pump Replacement
  • Clean Application
  • Glove Boxes
  • Lyophilization (Freeze Drying)
  • Sterilizers (Vaporized Hydrogen Peroxide Sterilizer medical devices Vacuum Steam Sterilization for Hospital Applications).
  • Leak Detectors
  • Beam Line & Synchrotrons
  • High Energy Physics (Research & Development Laboratories – R&D)
  • Space Simulation Chambers
  • Turbo Pump Backing
  • Flexible LED Video Display Manufacturing
  • Absolutely Clean & Dry Vacuum for Medical Devices & PCB Board Manufacturing
  • Medium Duty, compete with PFPE Rotary Vane Pumps, Pumping Oxygen Applications. Plasma O2 CF4
