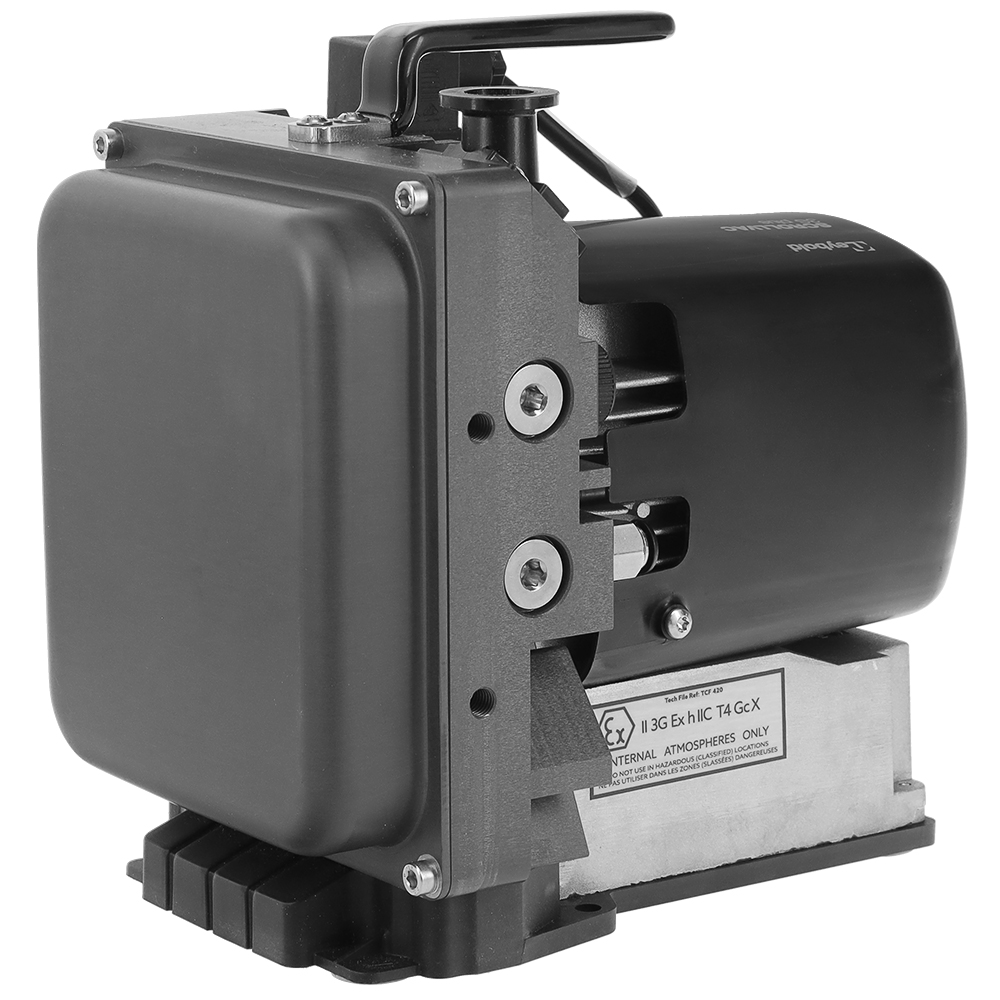

Leybold Scrollvac 3S Plus Compact Dry Scroll Vacuum Pump with Gas Ballast, Preconfigured Version with Inlet Valve and Exhaust Silencer Included,1-Phase 230 VAC, 2 CFM Pumping Speed. PN: 142030V430

This new Leybold Scrollvac 3S Plus dry scroll pump weights is capable of achieving peak pumping speeds of up to 2 CFM (3.5 m3/h) at 60 Hz, and a typical ultimate pressure of 0.0750 (0.1 mbar) with closed gas ballast. As such, the Scrollvac 3S Plus is a very capable alternative to diaphragm pumps. The Leybold Scrollvac 3S Plus preconfigured version which comes factory fitted with an inlet valve, featuring delayed opening, and supplied with an exhaust silencer.

The Leybold Scrollvac 3S Plus offers all the benefits of advanced scroll pump technology in a clean, dry, compact and powerful pumping performance. Because there is no oil to worry about, the Scrollvac 3 S Plus promises less hassle, less risk, less maintenance, less total cost of ownership, and less environmental impact compared with oil-sealed rotary vane pumps.

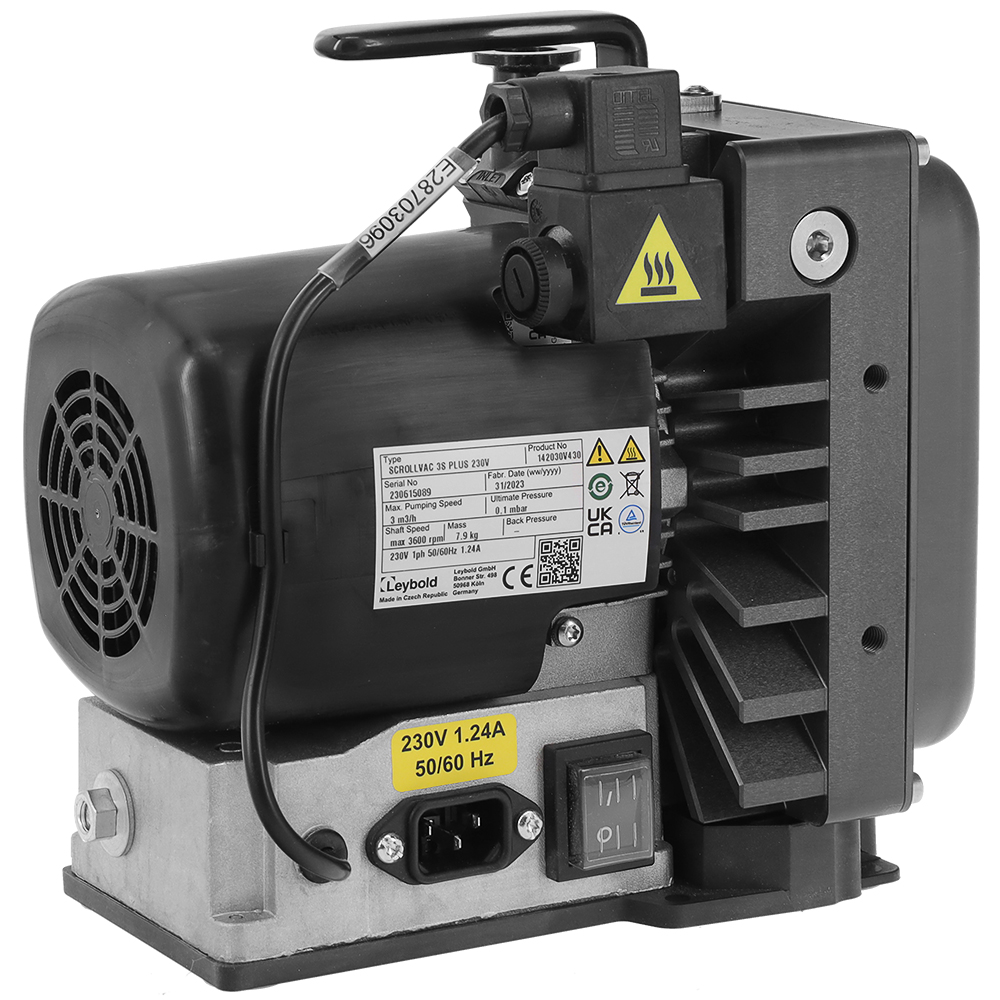

The very small footprint and light weight of 17.2 lbs. (7.8 kg) the Scrollvac 3S Plus make it easy to integrate in any system. It is supplied as standard with DN 16 ISO-KF inlet and push-fit exhaust connections along with a mains-driven motor, IEC connection, and on-off switch for easy operation. It can also be mounted either horizontally or vertically, if required, with brackets and base plates available as optional accessories, making it easy to attach the pump to any structure.

APPLICATIONS General clean pumping applications Scanning Electron Microscopes - SEM Beam lines and high energy physics Mass Spectrometry Electron Microscopy Sample Preparation Research and Development High Energy Physics Industrial Semiconductor Backing turbo pumps Centrifuges, ultra-high speed Coating Cryogenics Degassing/curing - oil, epoxy resin Distillation/extraction/filtration Laboratory bench top vacuum Lasers, gas recovery and recirculation Research and development Surface science instruments
