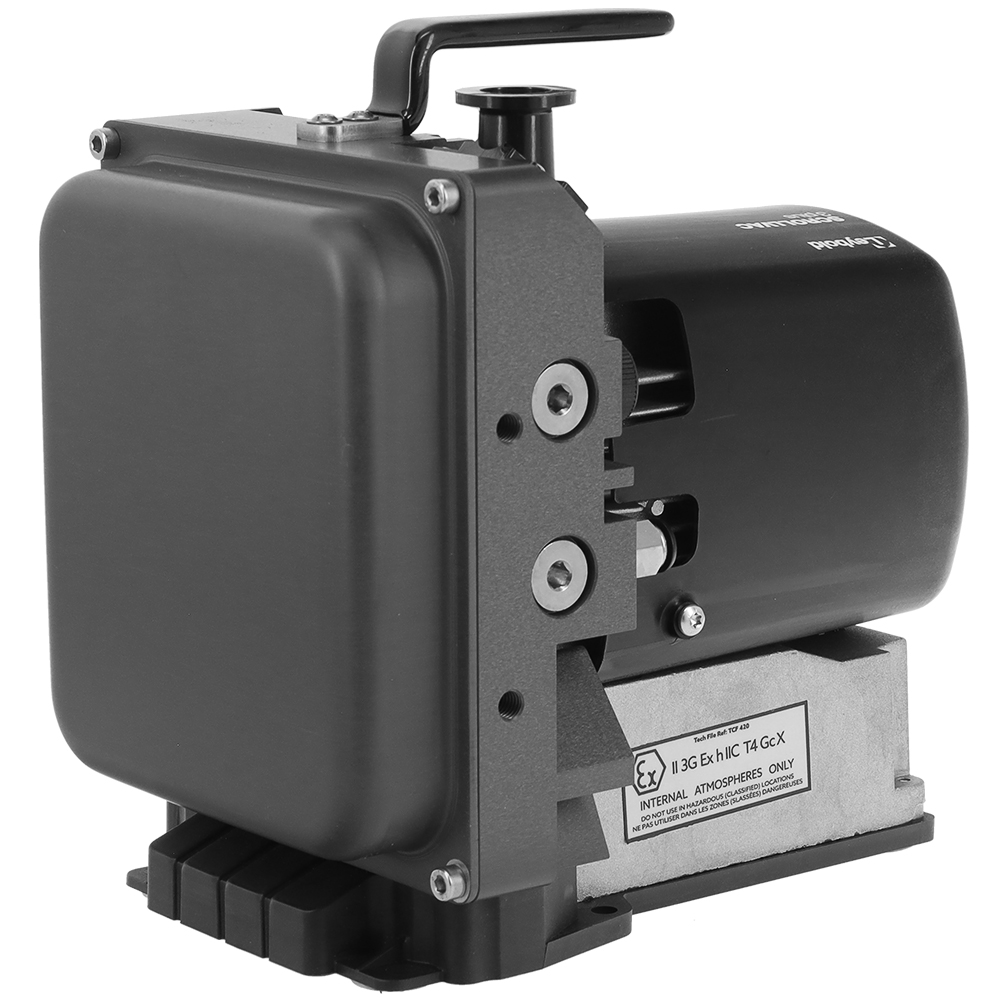

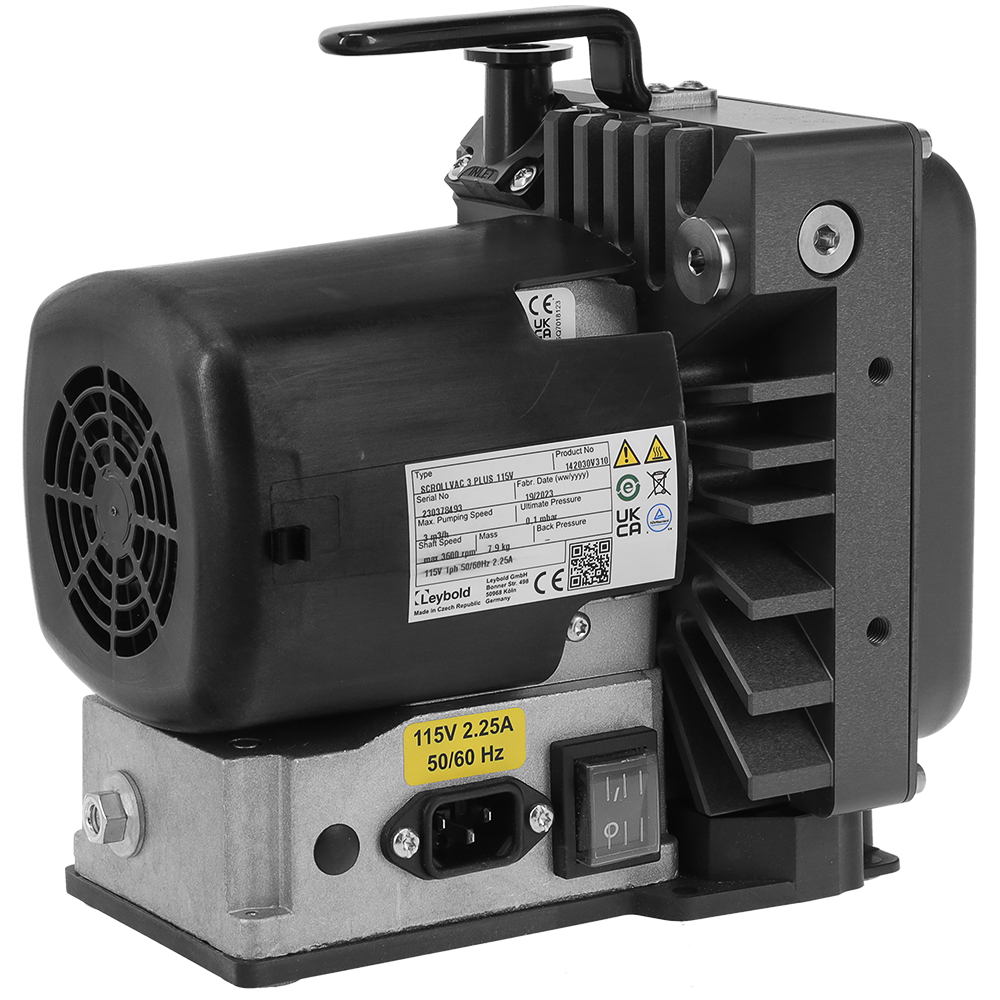

Leybold Scrollvac 3 Plus Compact Dry Scroll Vacuum Pump with Gas Ballast, 1-Phase 115 VAC, 2 CFM Pumping Speed. PN: 142030V310

This Leybold Scrollvac 3 Plus dry scroll pump is capable of achieving peak pumping speeds of up to 2 CFM (3.5 m3/h) at 60 Hz, and a typical ultimate pressure of 0.0750 Torr (0.1 mbar) with closed gas ballast. As such, the Scrollvac 3 Plus is a very capable alternative to diaphragm pumps.

The Leybold Scrollvac 3 Plus offers all the benefits of advanced scroll pump technology in a clean, dry, compact and powerful pumping performance. Because there is no oil to worry about, the Scrollvac 3 Plus promises less hassle, less risk, less maintenance, less total cost of ownership, and less environmental impact compared with oil-sealed rotary vane pumps.

The very small footprint and light weight of 17.2 lbs. (7.8 kg) the Scrollvac 3 Plus make it easy to integrate in any system. It is supplied as standard with DN 16 ISO-KF inlet and push-fit exhaust connections along with a mains-driven motor, IEC connection, and on-off switch for easy operation.

APPLICATIONS General clean pumping applications Scanning Electron Microscopes - SEM Beam lines and high energy physics Mass Spectrometry Electron Microscopy Sample Preparation Research and Development High Energy Physics Industrial Semiconductor Backing turbo pumps Centrifuges, ultra-high speed Coating Cryogenics Degassing/curing - oil, epoxy resin Distillation/extraction/filtration Laboratory bench top vacuum Lasers, gas recovery and recirculation Research and development Surface science instruments
