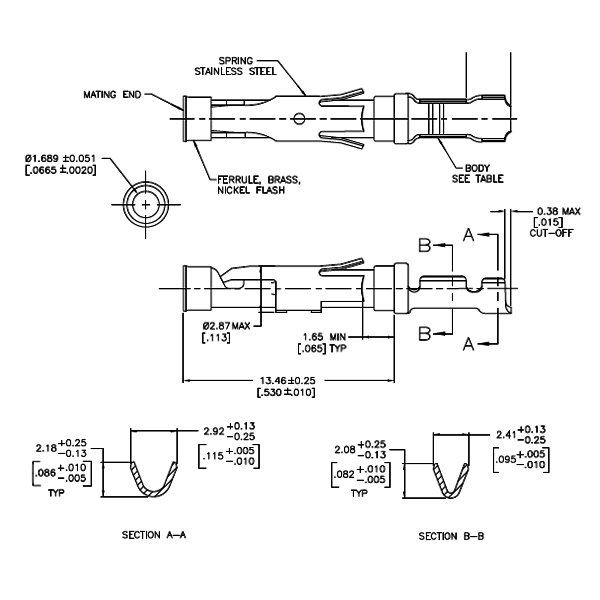

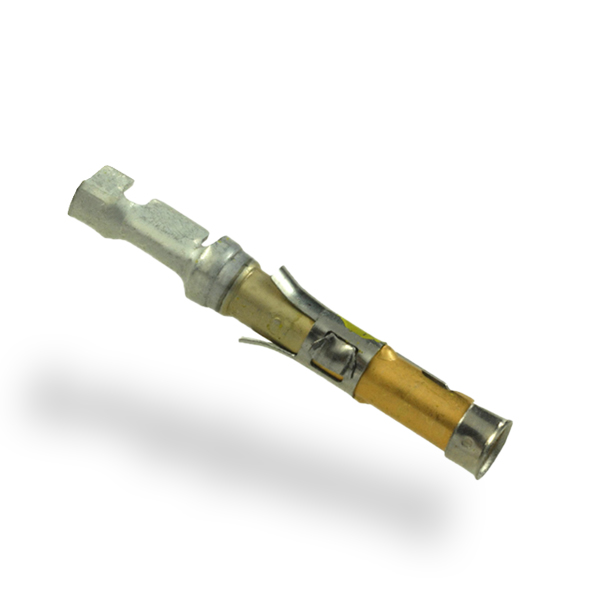

Ion Gauge Connector Kit, Socket Contact, Tin Crimp, for 20-24 AWG Contact
Sold As One Each
These connectors are typically used to customize female cable connectors mating to ion gauges.
Product Type Features:
● Pin/Socket = Socket
● Insulation Diameter (mm [in]) = 1.02 – 2.03 [0.040 – 0.080]
● Product Type = Type III+
● Insulation Support = Yes
● Wire Termination Type = Crimp
● Wire/Cable Type = Discrete Wire
● Grade = Commercial
● Comment = Overall insulation crimp diameter, including crimp barrel, must not exceed 3.18 [.125].; PRO-CRIMPER II # 58495-1 Hand Tool for field repair use only.; Insertion Tool No. 91002-1 (for Insulation Dia. 1.78 [.070] or less), No. 200893-2 (for Insulation Dia. .090 [2.29] max.) Extraction Tool No. 305183.
Electrical Characteristics:
● High Current = No
Termination Related Features:
● Termination End Plating = Bright Tin
● Pin Diameter (mm [in]) = 1.57 [0.062]
Body Related Features:
● Wire Range (mm [AWG]) = 0.20-0.60˛ [24-20]
● Spring Material = Stainless Steel
● Used With = G Series Connectors, CPC Connectors, M Series Connectors
Contact Related Features:
● Contact Mating Area Plating Material = Gold (30) over Nickel (30)
● Contact Base Material = Brass
● Contact Size = 16
● Contact Type = Signal
Industry Standards:
● RoHS/ELV Compliance = RoHS compliant, ELV compliant
● Lead Free Solder Processes = Not relevant for lead free process
● RoHS/ELV Compliance History = Always was RoHS compliant
Conditions for Usage:
● Terminate To = Wire
● Test Current (Amps.) = 13.0
