Condition:
  New
Part Number:
  P103198
Warranty:
  Against Product Defect

Available Now:
3  



$338.33


Print Version

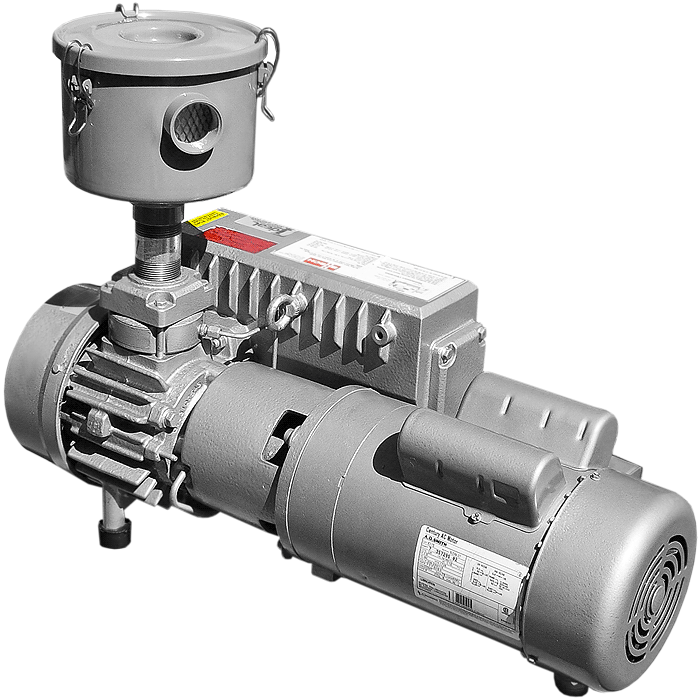

Intake Air Filter For Busch Pumps R5 0025/0040/0063/0100 B/C/E With 1 1/4 inch NPT Inlet


Intake Air Filter For Busch Pumps R5 0025/0040/0063/0100 B/C/E with 1 1/4 inch NPT Inlet. Comes with paper filter element.

This filter typically has a vacuum level of 1X10-3 mbar. Paper element has a 99% removal efficency standard to 2 micron. Brazed fittings for HIGH vacuum duty. Stainless steel torsion clips for durability. Seamless housings with O-Ring seal system. Large dirt holding capacity and easy field cleaning. Rugged steel construction with baked enamel finish. A paper filter element is enclosed with this metal housing. This filter has a rated flow of up to 60 CFM.

Small Compact Inlet Vacuum Filter 1 1/4 inch NPT Inlet and Outlet threaded openings:
Fits Pump Models: Busch R5 0025/0040/0063/0100 B/C/E

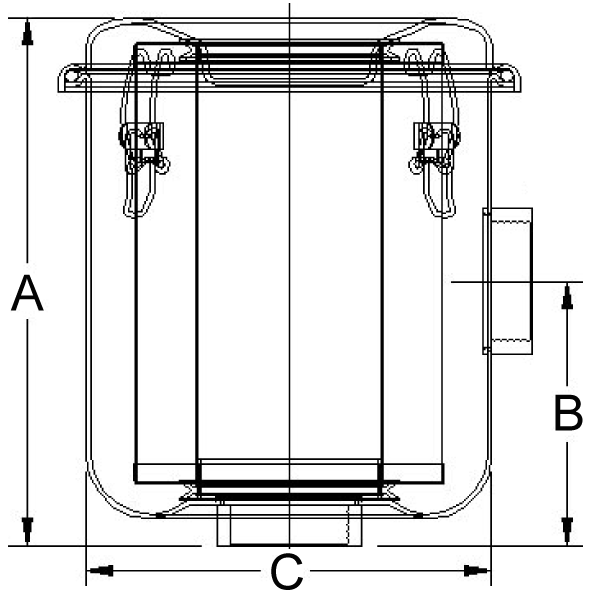

Dimensions: A: 6 3/4", B: 4 1/2", C: 7 5/16".
Weight: 5 lbs.
