Condition:
  New
Part Number:
  P1011053
Warranty:
  Against Product Defect
Out of Stock  

RoHS Compliance Sticker


$1,220.97


Print Version

Inlet Posi-Trap Straight Through KF40 - 8 inch housing with Polypro 2m Media Stainless Steel Canister 340040


NEW Inlet Single Stage Straight Through Posi-Trap® 8 in. KF40 comes with Polypro 2m Media - Stainless Steel Canister

The Inlet Single Stage Posi-Trap protects your vacuum pump from being exposed directly to particles, liquids, or solutions that could travel down the vacuum line. The Posti-Trap acts as a catch-pot for trapped materials. The Posi-Trap will also help prevent back-streaming and vacuum pump oil from contaminating your vacuum system. Sometimes your vacuum pump needs protection from the materials you’re pumping, and sometimes your vacuum system needs protection from the pump. The Posi-Trap takes care of both. The sump contains an element insert that traps foreign particles and vapors keeping them from getting where they shouldn’t be. It also traps particles and oil vapors and reduces oil backstreaming. (This trap includes the Polypro 2m media for high volumes of solids and catches particulates as small as 2 microns.)

Key Features:
• One side connects to inlet of vacuum pump, other side to system process.
• Protects vacuum pumps from foreign materials.
• Select element inserts for trapping particles, water, oil, or corrosive acidic chemicals.
• Simple to maintain—unscrew metal clamp on catchpot to change media element inserts.

Specifications:
Fits ALL rotary vane pumps up to 15 CFM with a KF40 inlet flange.
8 inch housing.

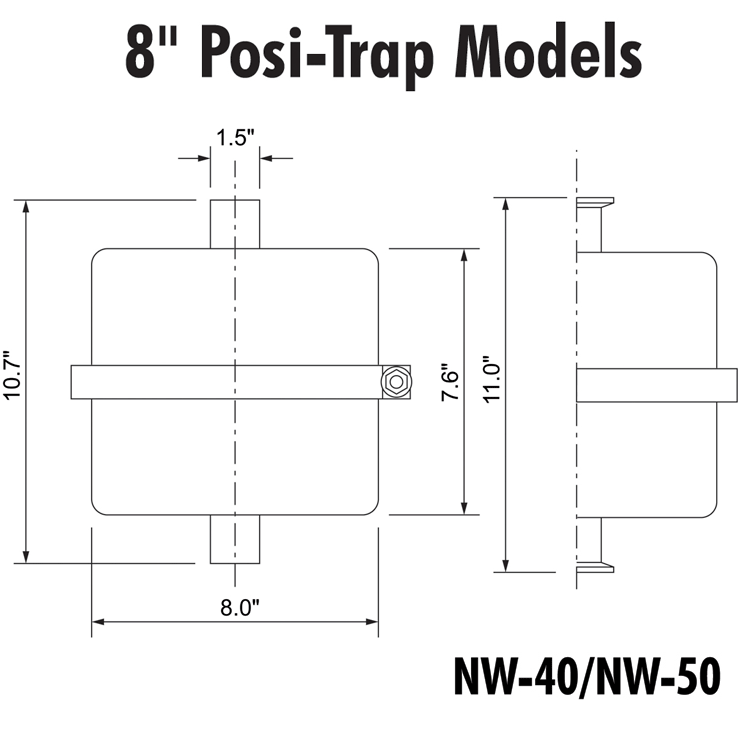

For Dimensions see middle graphic.
Construction: Stainless Steel, Buna O-Rings.


Press ESC to Close


PDF Logo RoHS Compliance Download

PDF Logo IVP Technical Considerations for Selecting Vacuum Components for Chemical Processes.pdf
