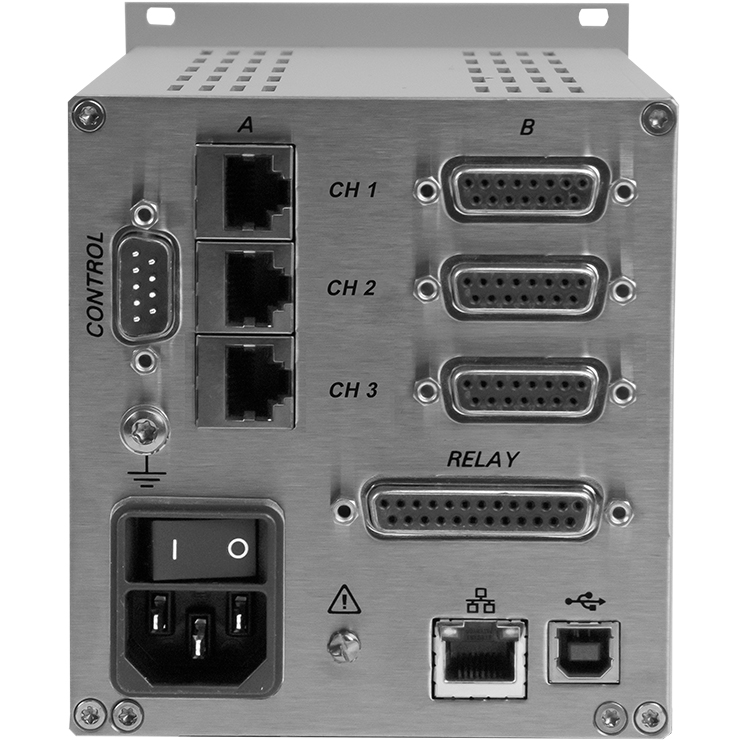

Inficon VGC503 Triple Channel Vacuum Pressure Gauge Controller, PN 398-483.
The VGC503 is your complete solution for process pressure measurement and control.
Compatible with all INFICON active pressure gauges, the VGC503 controller can monitor the entire
pressure range from 10-10 to 1500 mbar (10-10 to 1125 Torr) and the setpoint status.
Features Include: Auto ID of connected INFICON gauges, User selectable measurement unit
(mbar, Torr, Pascal, micron), High resolution – 16 bit A/D converter, Up to six adjustable setpoints with
adjustable hysteresis may be assigned to
any channel (depending on model), Programmable 0 to 10 V chart recorder
output with logarithmic / linear
characteristics for each gauge or gauge
combination (VGC502/503 only), Firmware upgrades available on-line and easily downloaded via the RS232 interface,
Versatile, compact bench-top model design
can easily be mounted in a panel or 19 inch rack,
Widerange power supply
90 to 250V, 50 to 60Hz.
This is the controller ONLY and comes with AC power cord, INFICON Sensors, Gauges and cables sold on this website separately. For a complete instruction manual.pdf, see Downloads to the side.
