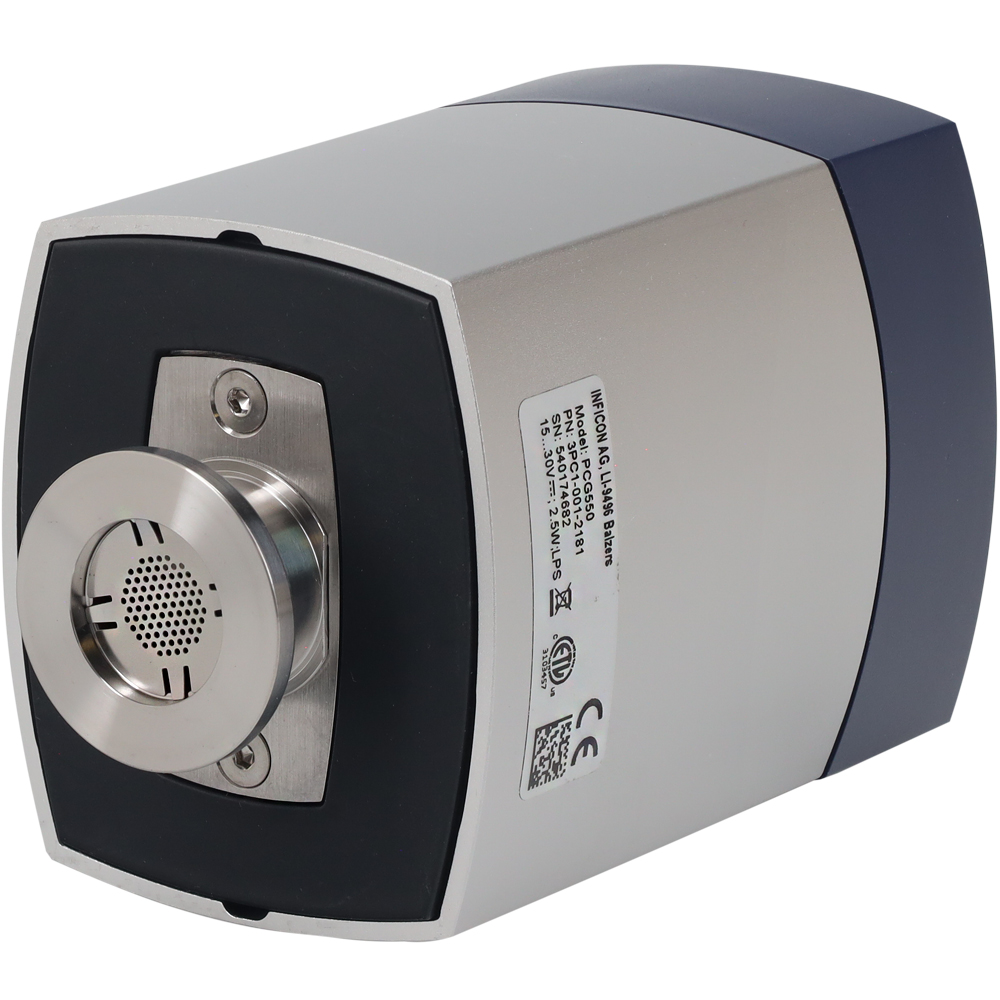

Inficon PCG 550 Pirani Capacitance Diaphragm Gauge, NW-KF 16 Fitting, Tungsten Filament, Mbar Measurement, D Sub 9 pin Connector, 1.2 - 8.68V Measurement Range, 2 set points, EtherCat® Interface. Inficon Part Number: 3PC1-001-2181.
The Iinficon Pirani Capacitance Diaphragm Gauge PCG550 combines the Inficon Pirani technology with the advantages of a ceramic capacitance diaphragm sensor in a single product.
In the measurement range between 10 mbar and atmosphere the capacitance diaphragm technology provides gas-type independent, highly accurate values for reliable pressure measurement. The PCG550 offers also a variety of features which allows the right product configuration for the demanded application. This Gauge has a D Sub 9 pin Connector and a 1.2 - 8.68V Measurement Range with 2 set points and EtherCAT Interface. This Gauge has a Pressure Measurement Range of 5×10-5 mbar (3.75X10-5 Torr) to 1500 mbar (1125 Torr).

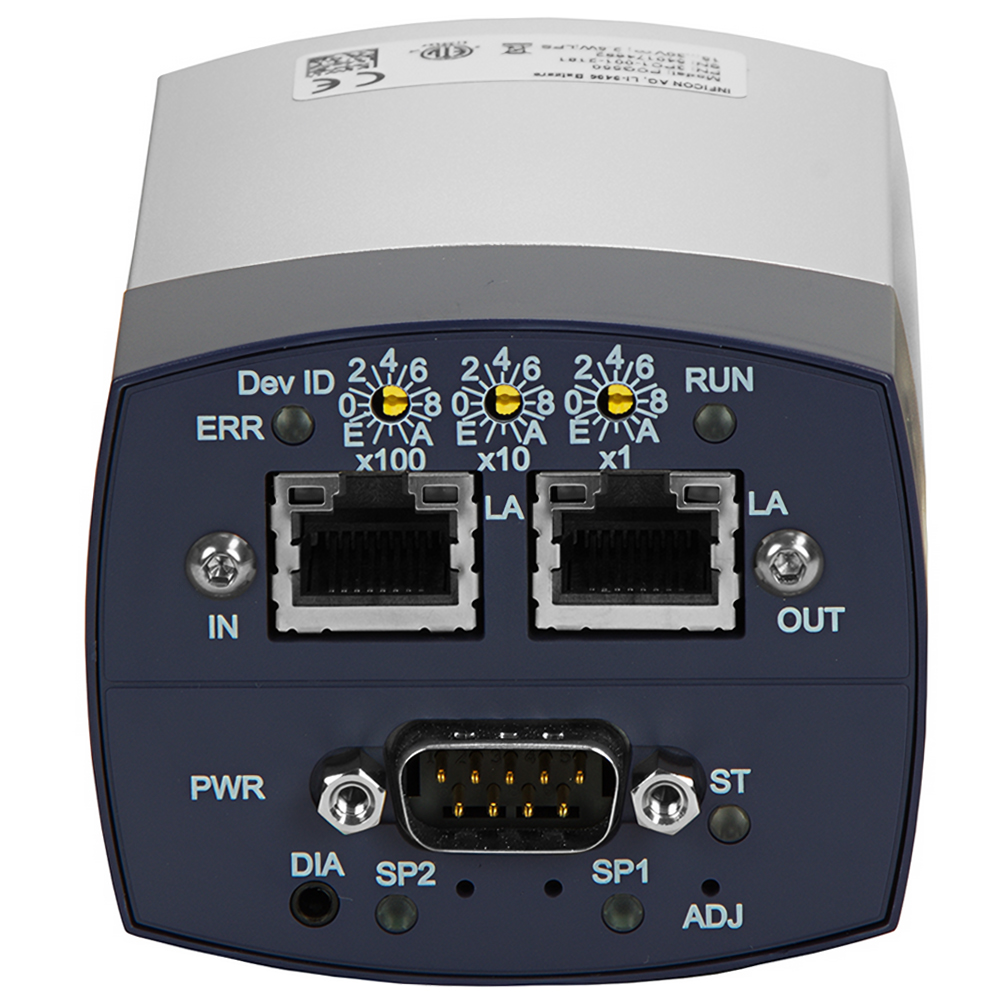

This PCG550 Pirani Capacitance Diaphragm Gauge can work with virtually any Vacuum Pump or Vacuum Pump System with the proper Inficon signal cable. This gauge has a D-Sub, 9-pin Connector, EtherCAT Interface. The gauge is intended for operation in connection with an Inficon Vacuum Gauge Controller VCG401, 402, 403 or withanother suitable controller.
For complete specifications of the PCG550 Capacitance Diaphragm Gauge see the Specification Sheet/Brochure.pdf and for complete Instruction for use see the Operating Manual .pdf, both in the Downloads.
