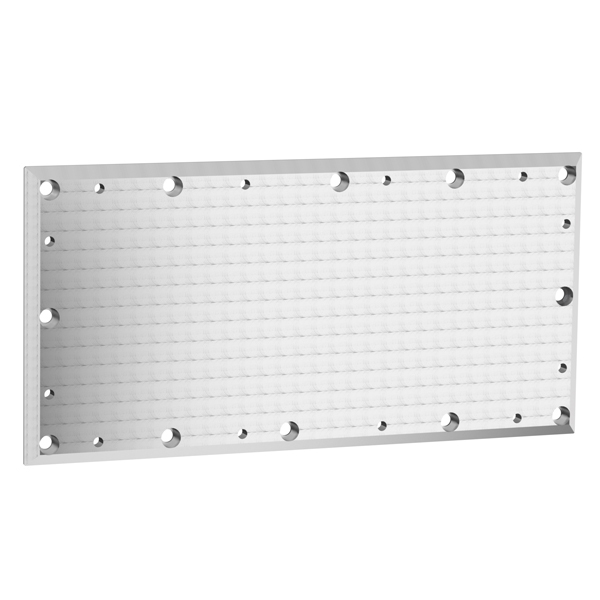

This is an Ideal Vacuum Cube 6 x 12 inch blank plate without ports. The plate is machined from 6061-T6 aluminum and powder coated blue. It has an internal optical breadboard for mounting test items or fixtures. Blank plates are the least expensive Cube plates and are used for the bottom of Cubes or any other Cube sides where ports are not needed. Features:6 x 12 plate6061-T6 aluminumBlue powdercoatBlank plate without ports Internal optical breadboardMounts in any orientationDirectly mounts to frame size:6x12x126x6x12 hexagon6x6x12 octagon This plate can also be mounted on any 12 x 12 x 12, or 24 x 24 x 24 frame with a plate adapter kit.

This is an uncoated Ideal Vacuum Cube 6 x 12 inch blank plate without ports and without the internal optical breadboard grid found on most other Cube plates. The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring. This is the least expensive 6 x 12 Cube plate of we offer. Use it as is for the bottom of a Cube or any other Cube side where ports are not needed, or customize to your requirements by adding unusual or proprietary ports, for welding on bulkhead fittings, or for custom attachments and fixtures. Note that Ideal Vacuum offers custom Cube plate solutions. Please speak to your representative for a quick quote.

This is an Ideal Vacuum Cube 6 x 12 inch blank plate without ports.The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring. It has an internal optical breadboard for mounting test items or fixtures. This is the least expensive 6 x 12 Cube plate with an internal optical breadboard. It is often used for the bottom of Cubes, or any other Cube side where ports are not needed, but the ability to fixture components inside the chamber is desired. Features:6 x 12 plate6061-T6 aluminumUncoated for bakeout to 150°CBlank plate without ports Internal optical breadboardMounts in any orientation

This is an uncoated Ideal Vacuum Cube 6 x 12 inch blank plate without ports and without the internal optical breadboard grid found on most other Cube plates. The plate is machined from 304L stainless steel and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring. Use this plate as is for the bottom of a Cube or any other Cube side where ports are not needed, or customize to your requirements by adding unusual or proprietary ports, for welding on bulkhead fittings, or for custom attachments and fixtures. Note that Ideal Vacuum offers custom Cube plate solutions. Please speak to your representative for a quick quote. Features:6 x 12 plate304L stainless steel

This is an Ideal Vacuum Cube 6 x 12 inch plate with one KF-25 centered bulkhead port. The plate is machined from 6061-T6 aluminum and powder coated blue. SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-25 centering ring (P101243) and bulkhead clamp (P108102 or P104599). Features:6" x 12" plate6061-T6 aluminumBlue powdercoatOne centered KF-25 (NW-25) bulkhead port (uses KF25 bulkhead clamp and centering ring) Internal optical breadboardMounts in any orientation

This is an Ideal Vacuum Cube 6 x 12 inch plate with three KF-25 bulkhead ports. The plate is machined from 6061-T6 aluminum and powder coated blue. SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-25 centering ring (P101243) and bulkhead clamp (P108102 or P104599). Features:6" x 12" plate6061-T6 aluminumBlue powdercoatTriple KF-25 (NW-25) bulkhead ports (uses KF-25 bulkhead clamps and centering rings) Internal optical breadboardMounts in any orientation

This is an Ideal Vacuum Cube 6 x 12 inch plate with one centered KF-40 bulkhead port. The plate is machined from 6061-T6 aluminum and powder coated blue. SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-40 centering ring (P101244) and bulkhead clamp (P108103 or P104600). Features:6" x 12" plate6061-T6 aluminumBlue powdercoatOne centered KF-40 (NW-40) bulkhead port (uses KF-40 bulkhead clamp and centering ring) Internal optical breadboardMounts in any orientation

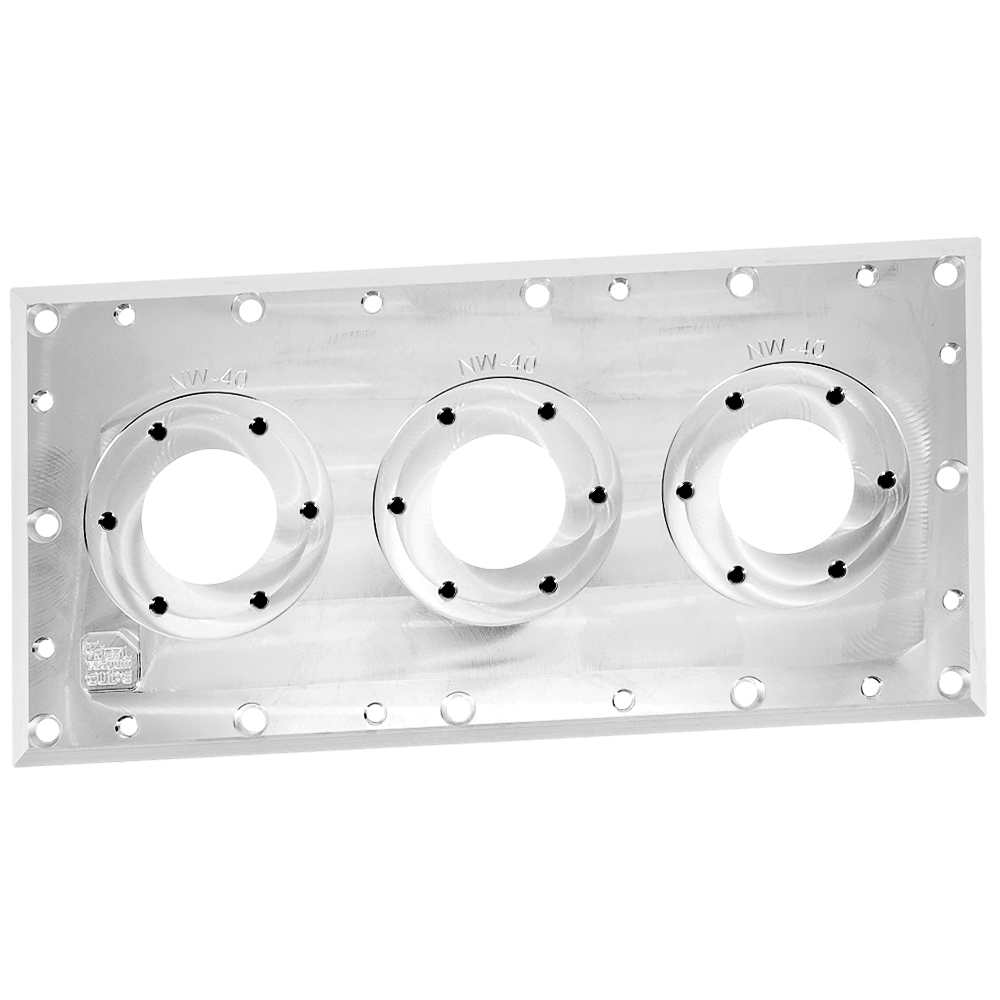

This is an Ideal Vacuum Cube 6 x 12 inch plate with three KF-40 bulkhead ports. The plate is machined from 6061-T6 aluminum and powder coated blue. SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-40 centering ring (P101244) and bulkhead clamp (P108103 or P104600). Features:6" x 12" plate6061-T6 aluminumBlue powdercoatTriple KF-40 (NW-40) bulkhead ports (uses KF-40 bulkhead clamps and centering rings) Internal optical breadboardMounts in any orientation

This is an Ideal Vacuum Cube 6 x 12 inch plate with three KF-40 bulkhead ports. The plate is machined from 6061-T6 aluminum and is uncoated for bakeout to 150°C, the limit of the Viton sealing O-ring. SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-40 centering ring (P101244) and bulkhead clamp (P108103 or P104600). Features:6" x 12" plate6061-T6 aluminumUncoated for bakeout to 150°CTriple KF-40 (NW-40) bulkhead ports (uses KF-40 bulkhead clamps and centering rings)

This is an Ideal Vacuum Cube 6 x 12 inch plate with one KF-50 centered bulkhead port. The plate is machined from 6061-T6 aluminum and powder coated blue. SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use a standard KF-50 centering ring (P101245) and bulkhead clamp (P108104 or P104601). KF-16 uses centering ring (P101242) and bulkhead clamp (P104598 or P108101)KF-25 uses centering ring (P101243) and bulkhead clamp (P108102 or P104599)KF-40 uses centering ring (P101244) and bulkhead clamp (P108103 or P104600)

This is an Ideal Vacuum Cube 6 x 12 inch plate with four KF bulkhead ports, including one KF-40, one KF-25, and two KF-16 ports. The plate is machined from 6061-T6 aluminum and powder coated blue. SInce a bulkhead KF fitting does not have a flange, this type of connection cannot use a standard KF clamp. Bulkhead KF clamps are secured to the plate with screws. To attach a KF flanged component to the KF bulkhead fitting, use standard centering rings and bulkhead clamps. KF-16 uses centering ring (P101242) and bulkhead clamp (P104598 or P108101)KF-25 uses centering ring (P101243) and bulkhead clamp (P108102 or P104599)KF-40 uses centering ring (P101244) and bulkhead clamp (P108103 or P104600)

This is an Ideal Vacuum Cube 6 x 12 inch plate with two ISO-F 63 ports. The plate is machined from 6061-T6 aluminum and powder coated blue. The ISO-F ports have 5/16-18 tapped holes for mounting a turbo pump, or ISO flanged tubing. To mount an ISO-K flanged turbo pump or tubing, single claw clamps (P104063) and a centering ring with O-ring seal are needed. (P101766). Below, please download the Common Vacuum Fittings Selection and Assembly Guide for instructions about making leak-proof flanged connections. Also download the Cube Plate Installation Manual for making leak-proof Vacuum Cube plate seals. Features:6" x 12" plate6061-T6 aluminum

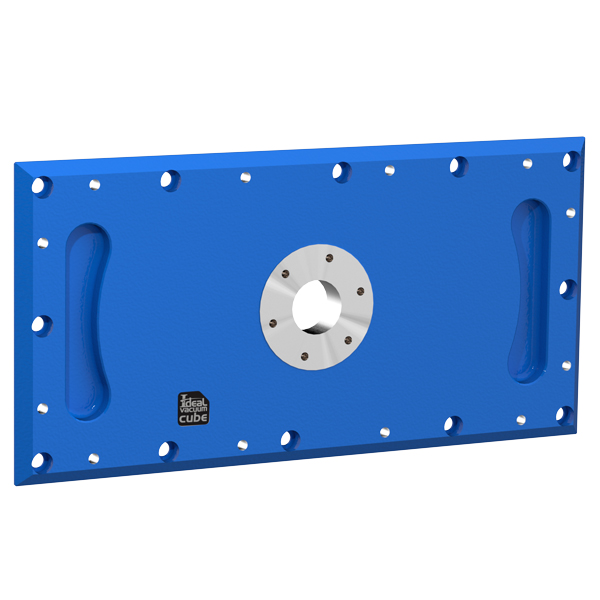

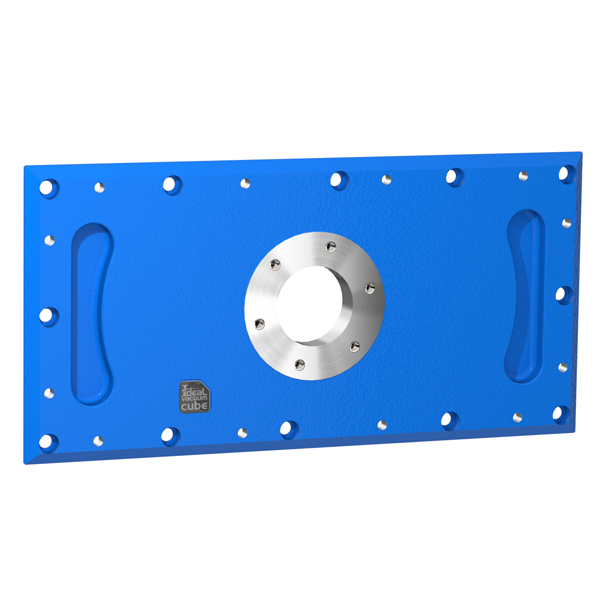

This is an Ideal Vacuum Cube 6 x 12 inch plate with one centered ISO-F 63 port. The plate is machined from 6061-T6 aluminum and powder coated blue. The ISO-F port has 5/16-18 tapped holes for mounting a turbo pump, or ISO flanged tubing. To mount an ISO-K flanged turbo pump or tubing, single claw clamps (P104063) and a centering ring with O-ring seal are needed. (P101766). Below, please download the Common Vacuum Fittings Selection and Assembly Guide for instructions about making leak-proof flanged connections. Also download the Cube Plate Installation Manual for making leak-proof Vacuum Cube plate seals. Features:6" x 12" plate6061-T6 aluminum

NOT COMPATIBLE WITH COPPER GASKETS. USE ONLY WITH VITON CF GASKETS! This is an Ideal Vacuum Cube 6 x 12 inch plate with one CF 2.75" centered Conflat port. The plate is machined from 6061-T6 aluminum and powder coated blue. This Conflat CF ported plate has 1/4-28 UNF tapped holes for mounting a turbo pump or CF flanged tubing. This plate's Conflat port requires six (6) 1/4-28 x 7/8" long, silver-plated, 12 point bolts (P104404). The CF port is not compatible with metal gaskets. Use only Viton seals (P104341). Cube baseline vacuum is 1 x 10 Torr. Features:6 x 12 plate6061-T6 aluminumBlue powdercoatSingle CF 2.75" port with 1/4-28 UNF tapped holes

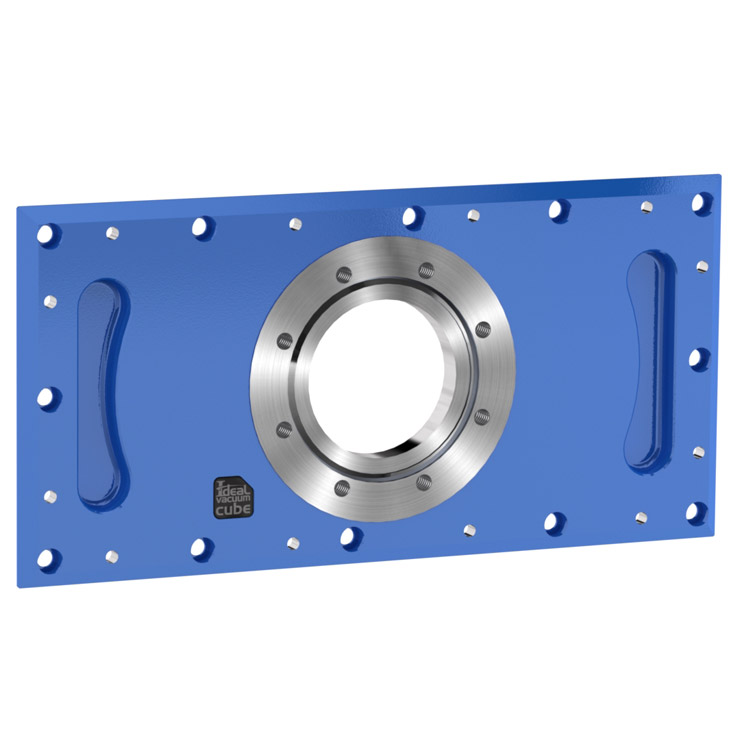

NOT COMPATIBLE WITH COPPER GASKETS. USE ONLY WITH VITON CF GASKETS! This is an Ideal Vacuum Cube 6 x 12 inch plate with one CF 4.5" centered Conflat port. The plate is machined from 6061-T6 aluminum and powder coated blue. This Conflat CF ported plate has 5/16-24 UNF tapped holes for mounting a turbo pump or CF flanged tubing. This plate's Conflat port requires eight (8) 5/16-24 x 1.0" long, silver-plated, 12 point bolts (P1012250). The CF port is not compatible with metal gaskets. Use only Viton seals (P104343). Cube baseline vacuum is 1 x 10 Torr. Features:6 x 12 plate6061-T6 aluminumBlue powdercoatSingle CF 4.5" port with 5/16-24 UNF tapped holes

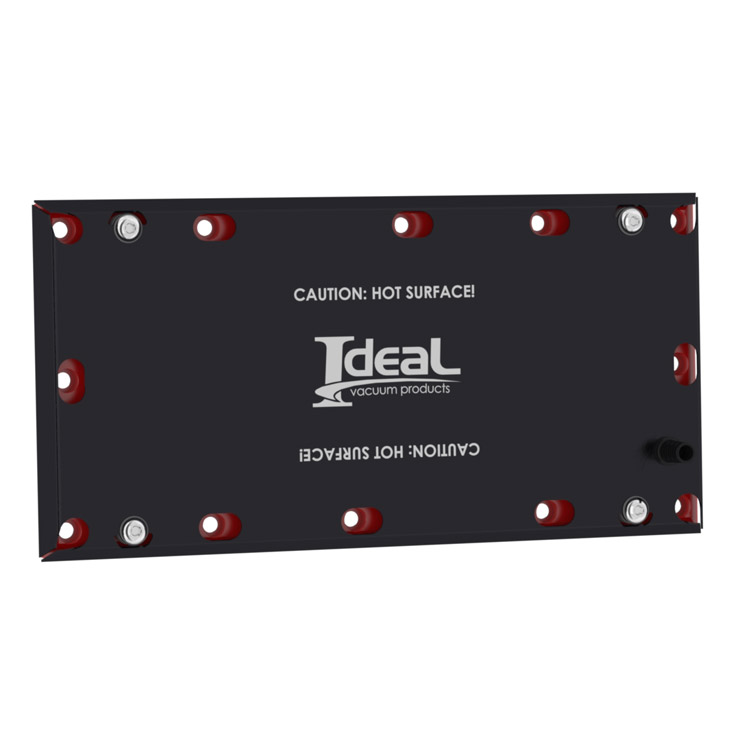

This Ideal Vacuum Cube 6 x 12 inch heater plate will safely provide up to 140°C of uniformly distributed heat to the vacuum side of the plate surface, through a 120VAC 360W heating element. This thermal vacuum plate expands the capabilities of the Ideal Vacuum Cube whereby the Cube can be used as a Thermal Vacuum Chamber (TVAC). Applications include thermal stability testing, surface coating and implantation, and damage testing under thermal load. Thermal Vacuum Chambers are often used to replicate or simulate the extreme conditions of outer space and are frequently employed in the testing of spacecraft and aerospace parts or components under a simulated space environment, and control outgassing for a giving process. Please note that the maximum allowable temperature using Viton O-rings is 150°C.

This is a non-thermally isolated Ideal Vacuum Cube 6 x 12 inch TVAC plate with 3/8” OD fluid tubes. This plate allows the vacuum side of the plate to be thermally controlled by circulating hot or cold fluids through its stainless steel tubes and internal cavity. The operating range of this plate is 150°C to -26°C (302°F to -15°F). This thermal vacuum Cube plate allows the Ideal Vacuum Cube to be used as a thermal vacuum or thermal shock vacuum chamber. It can also function as a chilled trap for chemical and high boiling point liquids. Multiple TVAC plates may be mounted to a Cube and plumbed together to enhance temperature control capability. Fluid is commonly supplied by a recirculating heater or chiller such as those made by Thermo Scientific, Neslab, and Huber. Insulated supply and return hoses connect the heater/chiller system to the thermal plate with 3/8" OD tube fittings.

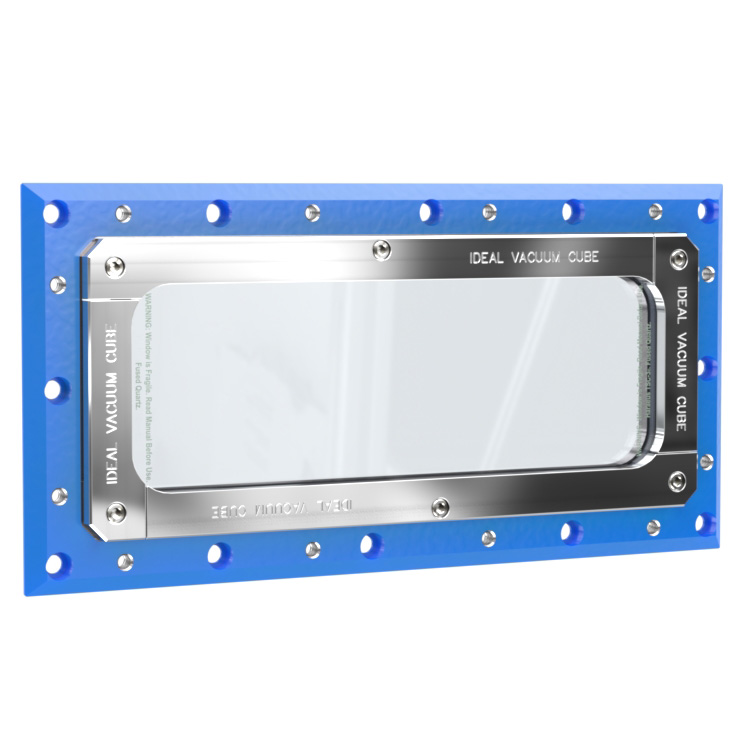

This Ideal Vacuum Cube 6x12 inch vacuum chamber standard, low-iron, tempered glass viewing window plate assembly is designed to fit our 6x6x12 or 6x12x12 modular Cube chambers. The standard tempered glass window viewing plate assembly is a popular Cube option, commonly used for general, direct observation of roughing or high-vacuum chamber processes and can be used to facilitate optical alignments of chamber components, observe degassing of fluids, or used to help teach in-vacuo processes by direct observation. The glass material is 3/8" thick, tempered, low-iron, high-clarity glass. Surface quality and flatness is Q4 per ASTM 1036-06 and 1048-04. The low iron content of the glass results in it having a slight blueish tint. This economical glass is unsuitable for high power laser experiments.

This Ideal Vacuum Cube 6x12 inch vacuum chamber fused quartz viewing window plate assembly is designed to fit our 6x6x12 or 6x12x12 modular Cube chambers. The fused quartz window viewing plate assembly is often selected for experiments where improved optical clarity, extended wavelength transmissivity is required beyond the visible range, and where cost is a factor. Our fused quartz windows are manufactured with the highest quality natural quartz resulting in the highest levels of purity and lowest inclusion and bubble levels. Comparable to Heraeus TSC-3, these windows have improved transmittance, and a wider useful wavelength range than standard glass. Characteristics include low refractive index variations and low thermal expansion coefficient. Fused quartz is used for semiconductor applications such as plasma etch and deposition systems and recommended when low alkali and low aluminum content are specified. It is often used for transmissive optics in the visible and near-to-mid infrared wavelengths where a high laser damage threshold is required. Fused quartz has absorbtion bands in the 2600 to 2900 nm region, similar to fused silica but not as strong. It is unsuitable for UV work due to absorbtion in the 270 nm region.

This Ideal Vacuum Cube 6x6 inch vacuum chamber fused silica viewing window plate assembly is designed to fit our 6x6x12 or 6x12x12 modular Cube chambers. The fused silica window viewing plate assembly is our premium viewing plate assembly and is selected for experiments where improved optical clarity and extended wavelength transmissivity, beyond the visible is required. Our high purity fused silica windows are ground and polished to optical grade on both sides with a total thickness variation (TTV) of

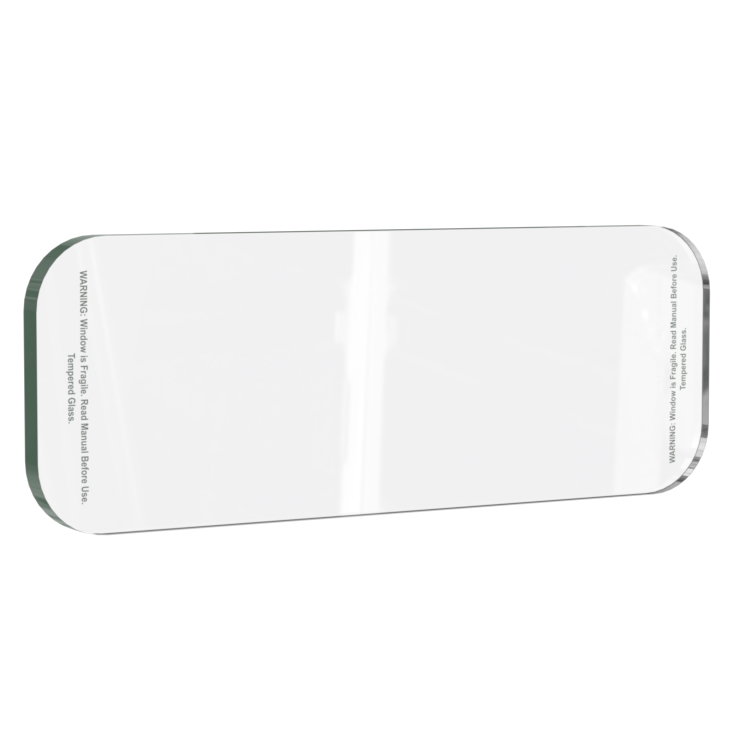

This is a tempered glass replacement window for the Ideal Vacuum Cube 6x12 Viewing Window AssembIy. Use it to replace a scratched, hazed or discolored glass window. It replaces the tempered glass viewing window pane used on our 6x6x12 or 6x12x12 Cubes. The standard tempered glass window is commonly used for general, direct observation of roughing or high-vacuum chamber processes and can be used to facilitate optical alignments of chamber components, observe degassing of fluids, or used to help teach in-vacuo processes by direct observation. The glass material is 3/8" thick, tempered, low-iron, high-clarity glass. Surface quality and flatness is Q4 per ASTM 1036-06 and 1048-04. The low iron content of the glass results in it having a slight blueish tint. This economical glass is unsuitable for high power laser experiments.

This is a fused quartz replacement window for the Ideal Vacuum Cube 6x6 Viewing Window AssembIy. Use it to replace or upgrade a scratched, hazed or discolored glass window. It replaces the viewing window pane used on our 6x6x12 or 6x12x12 Cubes. Our fused quartz windows are manufactured with the highest quality natural quartz resulting in the highest levels of purity and lowest inclusion and bubble levels. Comparable to Heraeus TSC-3, these windows have improved transmittance, and a wider useful wavelength range than standard glass. Characteristics include low refractive index variations and low thermal expansion coefficient. Fused quartz is used for semiconductor applications such as plasma etch and deposition systems and recommended when low alkali and low aluminum content are specified. It is often used for transmissive optics in the visible and near-to-mid infrared wavelengths where a high laser damage threshold is required. Fused quartz has absorbtion bands in the 2600 to 2900 nm region, similar to fused silica but not as strong. It is unsuitable for UV work due to absorbtion in the 270 nm region.

This is a fused silica replacement window for the Ideal Vacuum Cube 6x12 Viewing Window AssembIy. Use it to replace or upgrade a scratched, hazed or discolored glass window. It replaces the viewing window pane used on our 6x6x12 or 6x12x12 Cubes. Our high purity fused silica replacement windows are ground and polished to optical grade on both sides with a total thickness variation (TTV) of
