Ideal Vacuum Cube 6 x 6 x 12 in. Aluminum Octagonal Vacuum Chamber Frame.
This is a 15 x 15 x 6 inch bare octagonal vacuum Cube frame, the core of an Ideal Vacuum Cube modular chamber. It is machined from a solid billet of 6061-T6 aluminum so there are no welds to leak or break.
Eight side-mounted 6 x 6 in. Cube plates, and 15 x 15 in. octagonal top and bottom plates are mounted to the frame. Plates are mounted with 1/4"-20 stainless steel screws. The frame has drilled and tapped holes which accept the mounting screws. Once all eight plates are installed, the chamber is complete. The plates can be removed, replaced, or reused as needed to reconfigure the chamber to new requirements. Mounting holes are reinforced with stainless steel inserts so Cube plates can be swapped without fear of damaging the frame.

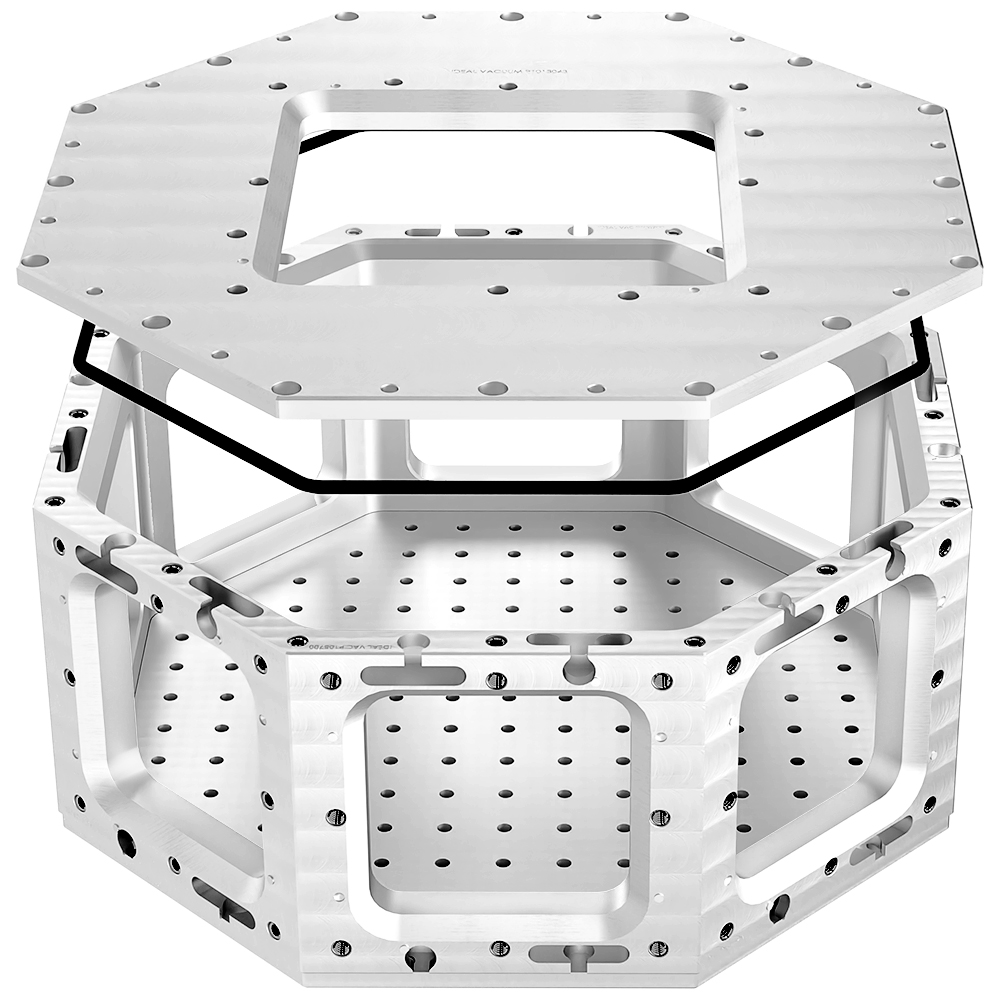

The top and bottom 15 in. octagonal plates may be blank (P1013090), or be adapter plates that accept a 6 x 6 plate (P1013088), a 9 x 9 plate (P1013043), or a 6 x 12 plate (P1013089).
This frame allows a user to build a 15 x 15 x 6 modular octagonal Cube chamber from scratch. Please see our other listings for a variety of 15 x 15 x 6 in. preconfigured octagonal chamber development kits, 6 x 6 in., and 15 in. octagonal Cube plates.
A complete 15 x 15 x 6 octagonal chamber requires:
- 15 x 15 x 6 octagonal Cube frame
- 15 x 15 x 6 octagonal hardware kit (P1013174)
- Eight 6 x 6 Cube plates
- A top octagonal plate (blank or 6 x 6, 9 x 9, or 6 x 12 adapter plate)
- A bottom octagonal plate (blank or 6 x 6, 9 x 9, or 6 x 12 adapter plate)
- Two O-rings to seal the octagonal plates to the frame (P1013173)
- Optional accessories including feet, viewing windows and doors, thermal, and optical plates
Please download the Cube plate installation manual for installation instructions.
Use the Cube plate maintenance and service toolkit
(P1010554) to assemble a Cube.
