Condition:
  New
Part Number:
  P1013845
Warranty:
  Against Product Defect
Out of Stock  
Expecting:   50
Anticipated Arrival:  50 on 2025-07-20

RoHS Compliance Sticker


$72.60


Print Version

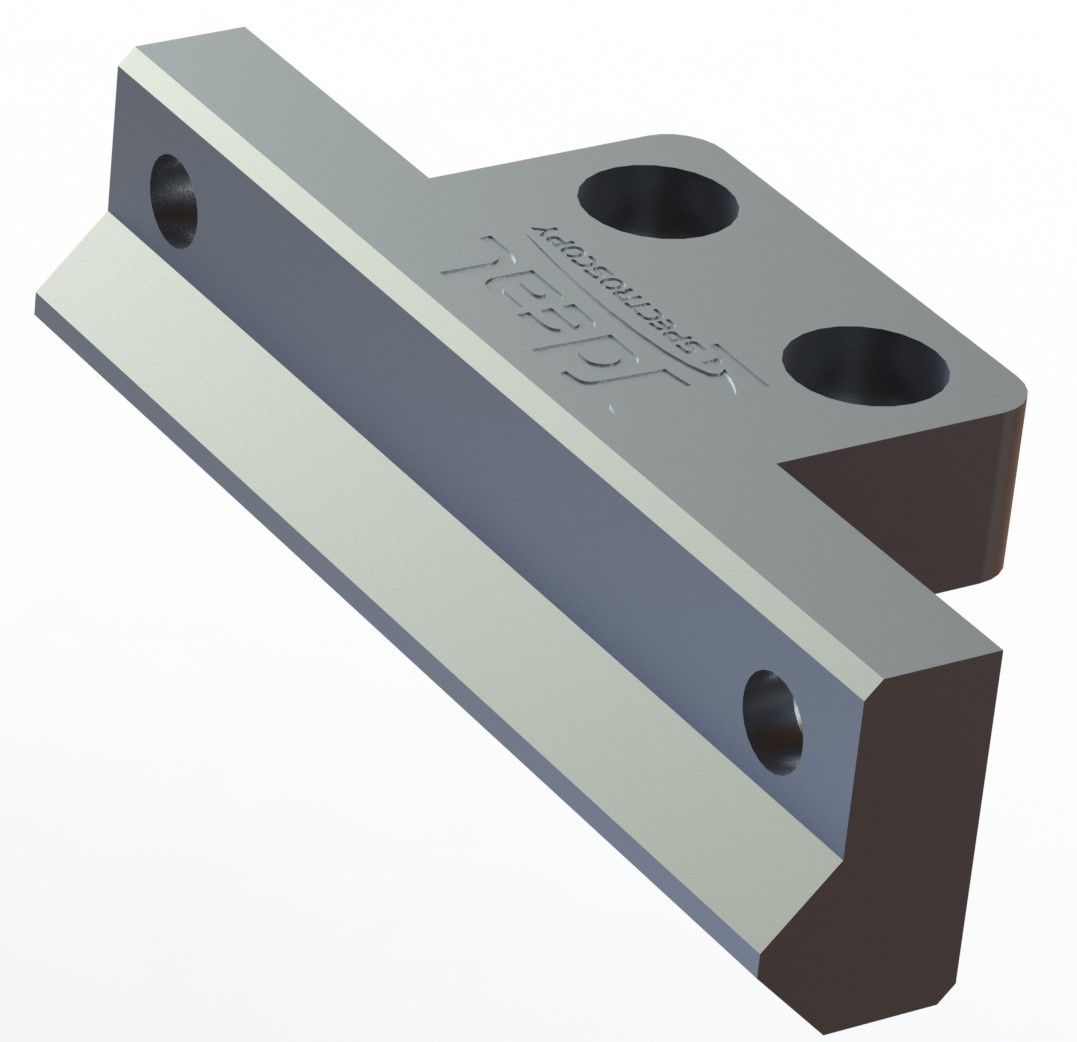

Ideal Optical Breadboard to 6x6 Vacuum Cube Adapter Rail, 6061-T6


Ideal Optical Breadboard to 6x6 Vacuum Cube Adapter Rail, 6061-T6

These optical breadboard to vacuum cube adapter rails enable optical breadboards to be mounted to the exterior of a vacuum cube plate. Allowing for custom experimental setups with optical accessories mounted directly to a vacuum cube. The adapter rail geometry allows the mounted optical breadboard surface to be coincident with the interior optical breadboard of the vacuum cube plate. Leading to a seamless integration between your optical subassembly and vacuum cube setup. Each size of adapter rail is compatible with various sizes of optical breadboards and can be mounted on any side of a vacuum cube plate. They have 1/4"-20 thru holes for mounting a 1" standard optical table breadboard pattern to a 6x6 vacuum cube plate.

Features:
  • Width = 1.5 in.
  • Length = 3.7 in.
  • Thickness = 1.0 in.
  • Counterbores for 1/4" socket head cap screw on each face.


Press ESC to Close


PDF Logo RoHS Compliance Download

PDF Logo IVP Technical Considerations for Selecting Vacuum Components for Chemical Processes.pdf

Ideal Spectroscopy offers 3D CAD models in Solidworks (SLDPRT), STP, & STEP formats. For those without CAD software a free trial 3D model viewer with measurement capabilities can be downloaded here:

E-drawing LogoeDrawings Viewer For Windows
E-drawing LogoeDrawings Viewer For MAC.
